Metallic SS304 Metal Structured Packing for Distillation Metal Column Packing
Metal Structured Packing Introduction
Metal perforated plate corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbon steels. Alumina, copper bronze etc. Further materials available on request.

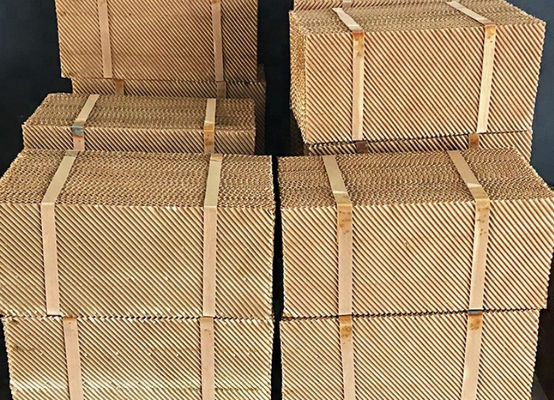

Metal Structured Packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing.
Metal Structure tower packing strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.Metal structured packing has feature of specific surface large, void ratio high and weight light; Gas path obliquity small and regular, pressure drop low; Radial diffusion good, gas liquid contact sufficient.
Metal Structured Packing Technical Specification
The specification is based on SS304 material:
| Item |
Surface Aream2/m³ |
Free Volume
% |
P
Pa/m |
Theo. plate
pc/plate |
F factor
m/s(kg/m³)0.5 |
| SB-125Y |
125 |
98 |
2x10-4 |
1-1.2 |
3 |
| SB-250Y |
250 |
97 |
2x10-4 |
2-2.5 |
2.6 |
| SB-350Y |
350 |
94 |
2x10-4 |
3.5-4 |
2 |
| SB-500Y |
500 |
92 |
3x10-4 |
4-4.5 |
1.8 |
| SB-125X |
125 |
98 |
1.4x10-4 |
0.8-0.9 |
3.5 |
| SB-250X |
250 |
97 |
1.8x10-4 |
1.6-2 |
3.5 |
| SB-350X |
350 |
94 |
1.3x10-4 |
2.3-2.8 |
2.2 |
| SB-500X |
500 |
92 |
1.8x10-4 |
2.8-3.2 |
2 |
| Model |

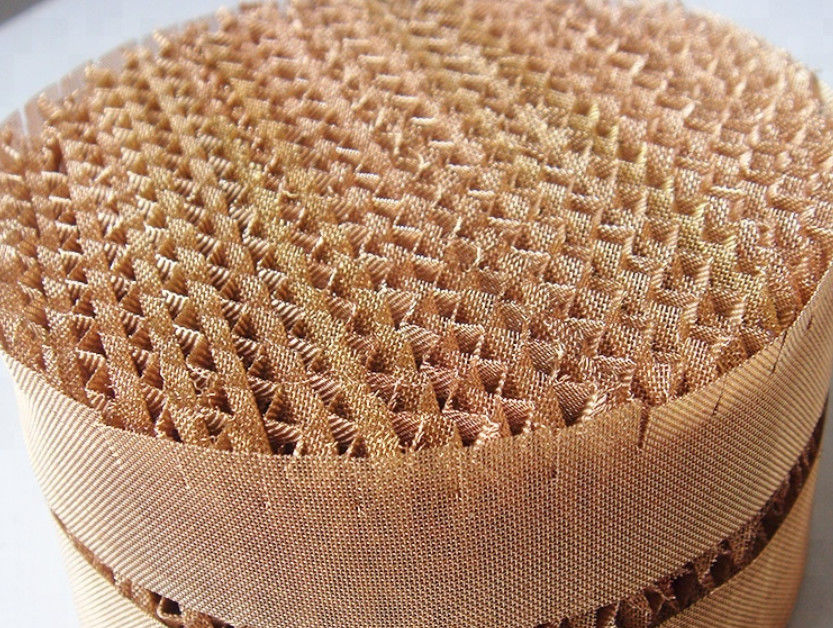

Wire Gauze Structured Packing |
| Material |
SS 304, 304L, 410, 316, 316L, etc. |
| Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
ΔP |
Theo. plate |
HETP/mm |
F factor m/s (kg/m3)0.5 |
| |
(m2/m3) |
(kg/m3) |
(%) |
angle |
(Pa/plate) |
(piece/m) |
|
|
| 250AX |
250 |
125 |
95 |
30 |
100-400 |
2.5~3 |
100 |
2.5-3.5 |
| 500BX |
500 |
250 |
90 |
30 |
400 |
4~5 |
200 |
2.0-2.4 |
| 700CY |
700 |
350 |
85 |
45 |
600-700 |
8~10 |
333-400 |
1.5-2.0 |
| |
|
|
|
|
|
|
|
|
| Typical Application |
Absorption, scrubbing and stripping services |
| |
| Package : |
Carton box; wooden box |
| Warranty: |
a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| |
b) Offer lifetime consultation on problems occurred |
Metal Structured Packing Advantages
(1) High capacity. New tower design may reduce diameter, while renovate old towers
may increase capacity significantly.
(2) High separation efficiency. Since it has much larger specific surface area compared
to random packing.
(3) Low pressure drop, which leads to reduce energy consumption largely.
(4) Large flexibility, and scale effect is not obvious.
(5) Suitable for all tower diameters.
(6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl- .
Metal Structured Packing Application
Fine chemical, flavour factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
