450Y SS304 Corrugated Plate Fractional Distillation Packing

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

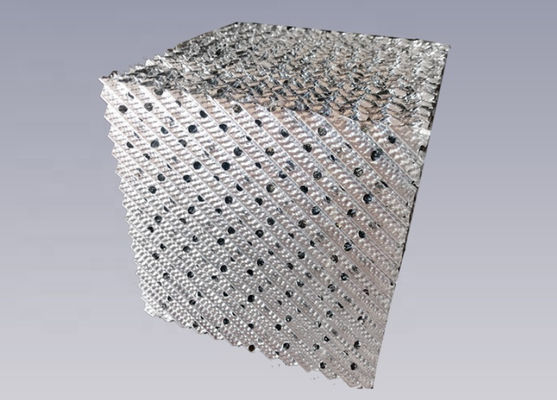

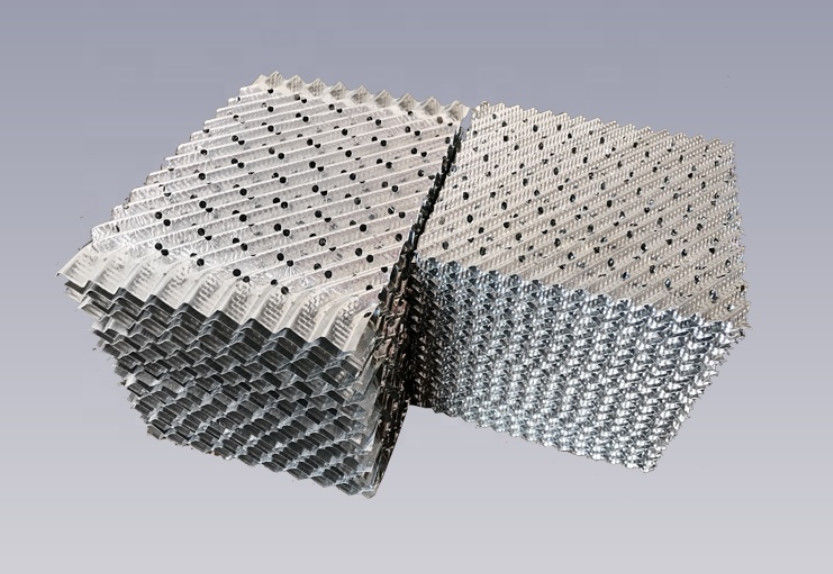

450Y SS304 Corrugated Plate Fractional Distillation Packing

450Y SS304 Corrugated Plate Fractional Distillation Packing
450Y SS304 Corrugated Plate Fractional Distillation Packing 450Y SS304 Corrugated Plate Fractional Distillation Packing

Large Image :  450Y SS304 Corrugated Plate Fractional Distillation Packing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meters
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 5-10days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Size: Dia:125Y/250Y/350Y/450Y Material: 304, 316, 316L, Alumina, Copper Bronze
Feature: High Mass Transfer MOQ: 1 Cubic Metre
Package: Jumbo Bag, Carton Box, Or Customized Keyword 1: Metal Structured Packing
Keyword 2: Metal Wire Gauze Cockles Packing Application: Absorption,scrubbing,stripping
Certification: ISO9001:2015 Type: 125Y,160Y,250Y,350Y,450Y,550Y,700Y
Place Of Origin: Hebei Province,China Sample: Provide For Free
High Light:

Fractional Distillation Packing

,

SS304 Corrugated Plate Distillation Packing

,

450Y Distillation Packing

SS 304 Metal Corrugated Plate Structured Packing For Fractional Distillation





Metal Structured Packing Packing Introduction



Metal structured packing can be made of various metal materials, such as low carbon steel, stainless steel, Monel, Ti and others. The stainless steel structured packing is the most widely used because of the excellent corrosion and rust resistance and durable properties. Metal structured packing has different packing types, which can be divided into wire gauze structured packing and perforated plate structured packing.





Metal Structured Packing Technical Specification

Model Wire Gauze Structured Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model Specific surface Bulk density Void ratio Obl. ΔP Theo. plate HETP/mm F factor m/s (kg/m3)0.5
  (m2/m3) (kg/m3) (%) angle (Pa/plate) (piece/m)
250AX 250 125 95 30 100-400 2.5~3 100 2.5-3.5
500BX 500 250 90 30 400 4~5 200 2.0-2.4
700CY 700 350 85 45 600-700 8~10 333-400 1.5-2.0

Typical Application Absorption, scrubbing and stripping services

Package : Carton box; wooden box
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
  b) Offer lifetime consultation on problems occurred



250(AX), Precision rectification for high productive capacity and less theoretical plate number.

500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7Kpa.

700(CX), Separation of isotopic compound and isomeric compound.





Metal Structured Packing Features

  • Its high mass transfer surface area is suitable for close boiling components distillation due to shorter columns.
  • Its structured arrangement ensures no channeling of liquid and requires minimum liquid redistribution.
  • Due to its very low pressure drop, it is recommended for vacuum distillation systems.
  • It has higher vapour load capacity as compared to random packing and trays.
  • It provides low liquid hold-up.

Metal Structured Packing Application



» Widely used in unit operations like rectification, absorption and extraction.

» Suitable for chemical industry, chemical fertilizer industry, oil refining, petrochemical industry and natural gas industry.

» Vacuum and atmospheric crude oil fractors

» Fcc main fractionators

» TEG contactors



450Y SS304 Corrugated Plate Fractional Distillation Packing 0



450Y SS304 Corrugated Plate Fractional Distillation Packing 1





450Y SS304 Corrugated Plate Fractional Distillation Packing 2





450Y SS304 Corrugated Plate Fractional Distillation Packing 3





450Y SS304 Corrugated Plate Fractional Distillation Packing 4
