Product Details:
Payment & Shipping Terms:
|
| Size: | Customized | Material: | 304, 316, 316L, Alumina, Copper Bronze |
|---|---|---|---|
| Feature: | High Mass Transfer | Keyword 1: | Metal Structured Packing |
| Keyword 2: | Metal Wire Gauze Cockles Packing | Application: | Absorption,scrubbing,stripping |
| Certification: | ISO9001:2015 | Type: | 125Y,160Y,250Y,350Y,450Y,550Y,700Y |
| Place Of Origin: | Hebei Province,China | ||
| High Light: | ISO 9001 Separation Tower Metal Structured Packing,160Y Metal Structured Packing,160Y Separation Metal Tower Packing |
||

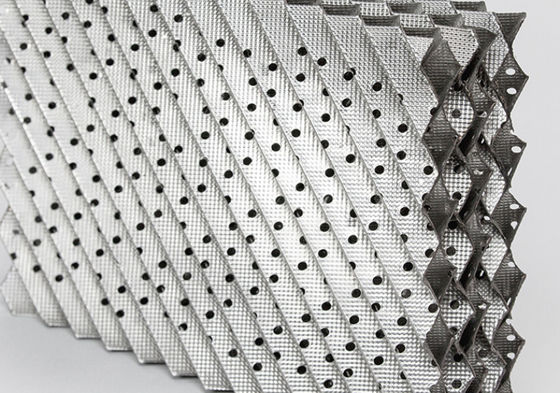

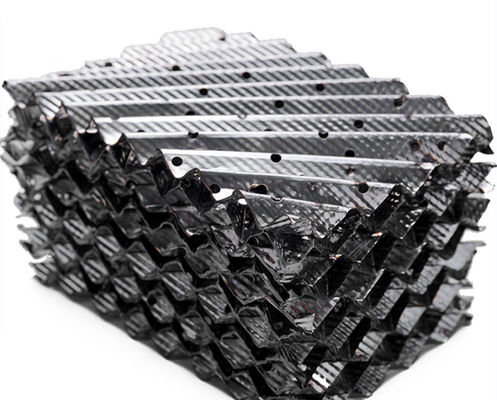

125Y Metal Perforated Plate Corrugated Structured Packing For Separation Tower
Metal Structured Packing Introduction
Metal Structured Packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing.
Metal Structure tower packing strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.Metal structured packing has feature of specific surface large, void ratio high and weight light; Gas path obliquity small and regular, pressure drop low; Radial diffusion good, gas liquid contact sufficient.
| Model | Wire Gauze Structured Packing | |||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
| Package : | Carton box; wooden box | |||||||
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||
250(AX), Precision rectification for high productive capacity and less theoretical plate number.
500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7Kpa.
700(CX), Separation of isotopic compound and isomeric compound.
Metal Structured Packing Features
Metal Structured Packing Application
Metal perforated Plate Corrugated Structured packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.
Metal Structured Packing Application
