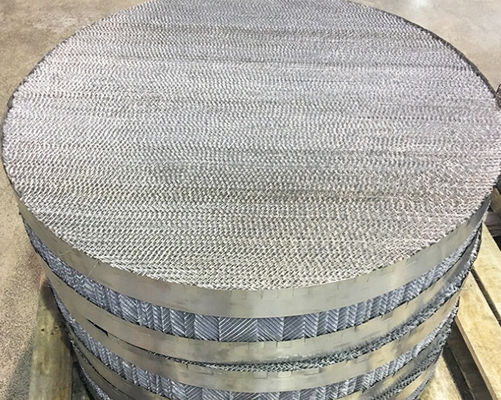

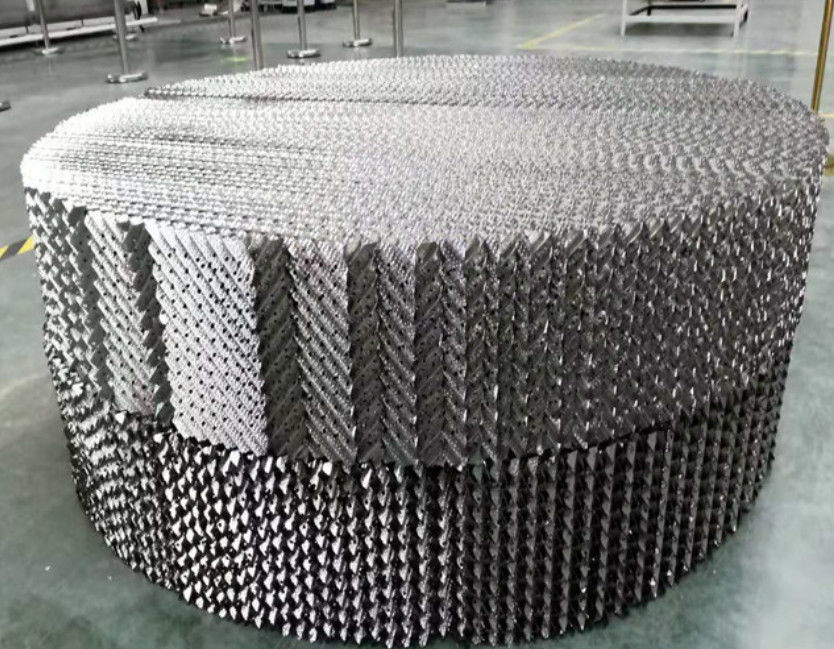

Stainless Steel Tower Structured Packing For Scrubbing Column SS316 500Y
Metal Structured Packing Introduction
Metal Structured Packing is made of perforated plate with channel corrugation on surface, and remains structure feature of metal wire gauze packing.
Metal Structure tower packing strengthens uniform liquid distribution and surface wetting ability, which increases mass transfer efficiency.Metal structured packing has feature of specific surface large, void ratio high and weight light; Gas path obliquity small and regular, pressure drop low; Radial diffusion good, gas liquid contact sufficient.
Metal Structured Packing Technical Specification
The specification is based on SS304 material:
| Model |
Wire Gauze Structured Packing |
| Material |
SS 304, 304L, 410, 316, 316L, etc. |
| Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
ΔP |
Theo. plate |
HETP/mm |
F factor m/s (kg/m3)0.5 |
| |
(m2/m3) |
(kg/m3) |
(%) |
angle |
(Pa/plate) |
(piece/m) |
|
|
| 250AX |
250 |
125 |
95 |
30 |
100-400 |
2.5~3 |
100 |
2.5-3.5 |
| 500BX |
500 |
250 |
90 |
30 |
400 |
4~5 |
200 |
2.0-2.4 |
| 700CY |
700 |
350 |
85 |
45 |
600-700 |
8~10 |
333-400 |
1.5-2.0 |
| |
|
|
|
|
|
|
|
|
| Typical Application |
Absorption, scrubbing and stripping services |
| |
| Package : |
Carton box; wooden box |
| Warranty: |
a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| |
b) Offer lifetime consultation on problems occurred |
Metal Structured Packing Advantages
- High number of theoretical plates, large flux and low pressure drop;
- Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
- Large operation elasticity;
- No obvious amplification effect;
- Fulfilling the requirements of precision, large and high vacuum distillation units, providing favorable conditions for distillation separation system, heat sensitive material and high purity products.
Metal Structured Packing Application
Fine chemical, flavour factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
FAQ
Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years experience.
Q: Could you provide sample?
A: Yes,we can provide sample together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number, wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepare enough stock material for your urgent requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.
