SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing

SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing
SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing

Large Image :  SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meters
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 5-10days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Size: Dia:125Y/250Y/350Y/450Y Material: 304, 316, 316L, Alumina, Copper Bronze
Feature: High Mass Transfer MOQ: 1 Cubic Metre
Package: Jumbo Bag, Carton Box, Or Customized Keyword 1: Metal Structured Packing
Keyword 2: Metal Wire Gauze Cockles Packing Application: Absorption,scrubbing,stripping
Certification: ISO9001 Type: 125Y,160Y,250Y,350Y,450Y,550Y,700Y
Ctificate: ISO9001:2015 Place Or Origin: Hebei Province
High Light:

SS316 Metal Tower Packing

,

125Y Metal Tower Packing

,

125Y Structure Packing Column

Gauze Packing Tower Packing SS304 SS316 Metal Corrugated Plate Structured Packing





Metal Structured Packing Packing Introduction



Structured packing is uniformly distributed in the tower in a geometric shape. The packing restricts gas-liquid flow,
improves channel flow and wall flow, and reduces pressure drop. At the same time, it also provides a larger surface area and achieves better mass and heat transfer performance. Since then, the application, design, and manufacturing of the filler have been
widely promoted by many companies.



    Metal Structured Packing Technical Specification


The specification is based on SS304 material:

Model Perforated Plate Corrugated Packing
Material carbon steel, stainless steel 304, 304L, 410, 316, 316L, etc.
Model 125Y 250Y 350Y 500Y 125X 250X 350X 500X
Specific surface (m2/m3) 125 250 350 500 125 250 350 500
Bulk density (kg/m3) 100 200 280 360 100 200 280 360
Void ratio (%) 98 97 94 92 98 97 94 92
Obl. angle 45° 45° 45° 45° 30° 30° 30° 30°
P (Pa/plate) 200 300 350 400 140 180 230 280
Theo. plate (piece/m) 1~1.2 2~2.5 3.5~4 4~4.5 0.8~0.9 1.6~2 2.3~2.8 2.8~3.2

Typical Application Absorption, scrubbing and stripping services

Package : Carton box;
M.O.Q: 1 CBM
Payment Terms: T/T; L/C; PayPal; West Union
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
b) Offer lifetime consultation on problems occurred

Container 20GP 40GP 40HQ Normal order Minimum Order Sample order
Quantity 25 CBM 54 CBM 68 CBM <25 CBM 1 CBM < 5 pcs
Delivery Time 7 days 14 days 20 days 7 Days 3 days Stock
Comments: Customized making is allowed.



Metal Structured Packing Features

  • High number of theoretical plates, large flux and low pressure drop;
  • Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
  • Large operation elasticity;
  • No obvious amplification effect;

Metal Structured Packing Application



» Widely used in unit operations like rectification, absorption and extraction.

» Suitable for chemical industry, chemical fertilizer industry, oil refining, petrochemical industry and natural gas industry.

» Vacuum and atmospheric crude oil fractors

» Fcc main fractionators

» TEG contactors

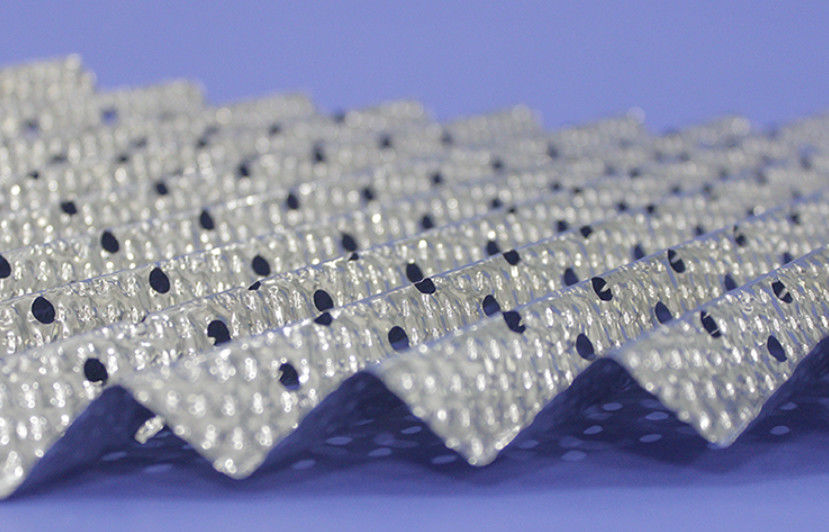

SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing 0

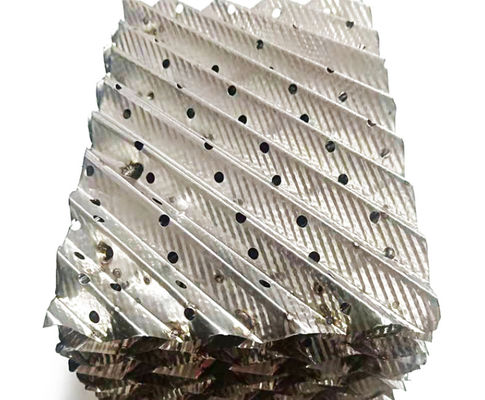

SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing 1

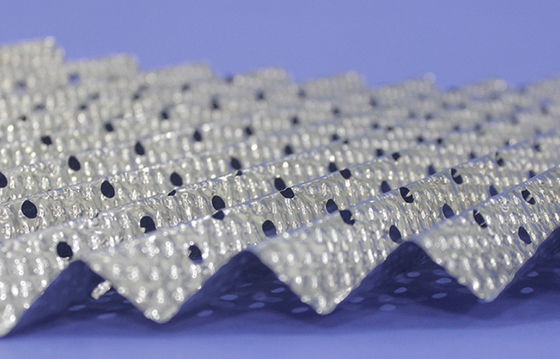

SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing 2



SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing 3



SS304 SS316 Corrugated Plate Structured 125Y Metal Tower Packing 4
