SS304 Metal Plate Corrugated Structured Tower Packing For Filteration 450Y

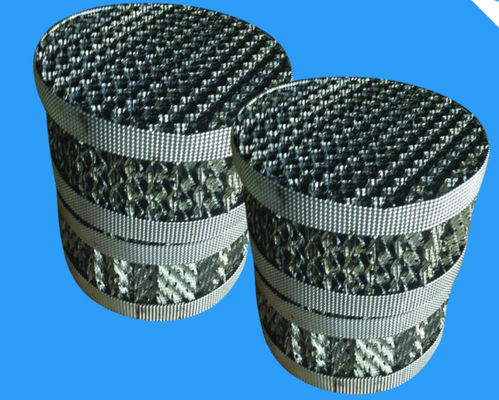

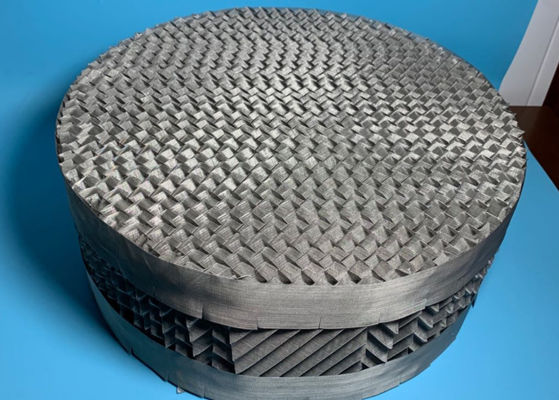

Metal Structured Packing Introduction
Structured packing is a kind of packing arranged and stacked in accordance with uniform geometry in the tower. The geometry of the whole tower section is regular, symmetrical and uniform, and the gas-liquid flow path is specified, which reduces the phenomenon of channel flow and wall flow, and the pressure drop can be very small. Under the same energy cost and pressure drop, it can provide more specific surface area than random packing, and achieve higher mass transfer and heat transfer efficiency in the same volume. At the same time, due to the uniformity, regularity and symmetry of its structure, when it has the same specific surface area as random packing, its void ratio and flux is larger, and its comprehensive processing capacity is much larger than tray tower and random packing tower. After careful design, manufacture, installation and operation of tower internals (such as gas-liquid distributor), the industrial amplification effect is not obvious. In recent decades, structured packing has been widely used in many towers in fine chemical industry, perfume industry, oil refining, fertilizer, petrochemical industry and other fields. Our company mainly produces and supplies two kinds of metal structured packing, corrugated orifice plate structured packing and wire mesh structured packing.
Metal Structured Packing Technical Specification
| Model |
Wire Gauze Structured Packing |
| Material |
SS 304, 304L, 410, 316, 316L, etc. |
| Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
ΔP |
Theo. plate |
HETP/mm |
F factor m/s (kg/m3)0.5 |
| |
(m2/m3) |
(kg/m3) |
(%) |
angle |
(Pa/plate) |
(piece/m) |
|
|
| 250AX |
250 |
125 |
95 |
30 |
100-400 |
2.5~3 |
100 |
2.5-3.5 |
| 500BX |
500 |
250 |
90 |
30 |
400 |
4~5 |
200 |
2.0-2.4 |
| 700CY |
700 |
350 |
85 |
45 |
600-700 |
8~10 |
333-400 |
1.5-2.0 |
| |
|
|
|
|
|
|
|
|
| Typical Application |
Absorption, scrubbing and stripping services |
| |
| Package : |
Carton box; wooden box |
| Warranty: |
a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| |
b) Offer lifetime consultation on problems occurred |
250(AX), Precision rectification for high productive capacity and less theoretical plate number.
500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7Kpa.
700(CX), Separation of isotopic compound and isomeric compound.
Metal Structured Packing Features
- High number of theoretical plates, large flux and low pressure drop;
- Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
- Large operation elasticity;
- No obvious amplification effect;
- Fulfilling the requirements of precision, large and high vacuum distillation units, providing favorable conditions for distillation separation system, heat sensitive material and high purity products.
Metal Structured Packing Application
Metal perforated Plate Corrugated Structured packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.
Metal Structured Packing Application
