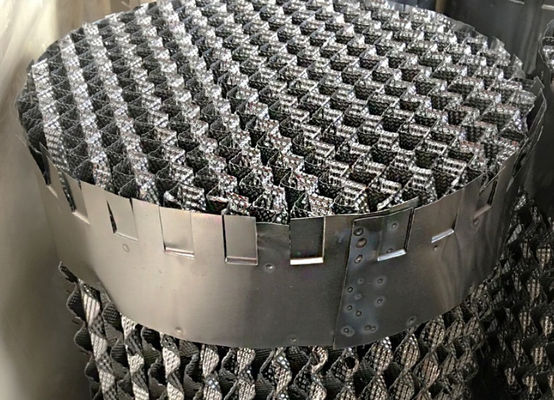

Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y

Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y
Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y

Large Image :  Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meters
Price: Negotiable
Packaging Details: wooden case or customized
Delivery Time: 5-10days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: 304, 316, 316L, Alumina, Copper Bronze Feature: High Mass Transfer/Low Pressure Drop
Keyword 1: Metal Structured Packing Keyword 2: Metal Wire Gauze Cockles Packing
Application: Absorption,scrubbing,stripping Certification: ISO9001:2015
Type: 125Y,160Y,250Y,350Y,450Y,550Y,700Y Place Of Origin: Hebei Province,China
Sample: Provide For Free After Warranty Service: Online Support, Spare Parts
Product Type: Corrugated Metal Plate Packing MOQ: 1 CBM
High Light:

316L Structured Packings

,

250Y Structured Packings

,

250Y Structure Packing Column

Wire Mesh Corrugated Orifice Plate Structured Packing For Tower 250Y





Metal Structured Packing Introduction



Structured packing is a kind of packing arranged and stacked in accordance with uniform geometry in the tower. The geometry of the whole tower section is regular, symmetrical and uniform, and the gas-liquid flow path is specified, which reduces the phenomenon of channel flow and wall flow, and the pressure drop can be very small. Under the same energy cost and pressure drop, it can provide more specific surface area than random packing, and achieve higher mass transfer and heat transfer efficiency in the same volume. At the same time, due to the uniformity, regularity and symmetry of its structure, when it has the same specific surface area as random packing, its void ratio and flux is larger, and its comprehensive processing capacity is much larger than tray tower and random packing tower. After careful design, manufacture, installation and operation of tower internals (such as gas-liquid distributor), the industrial amplification effect is not obvious. In recent decades, structured packing has been widely used in many towers in fine chemical industry, perfume industry, oil refining, fertilizer, petrochemical industry and other fields. Our company mainly produces and supplies two kinds of metal structured packing, corrugated orifice plate structured packing and wire mesh structured packing.



Metal Structured Packing Technical Specification

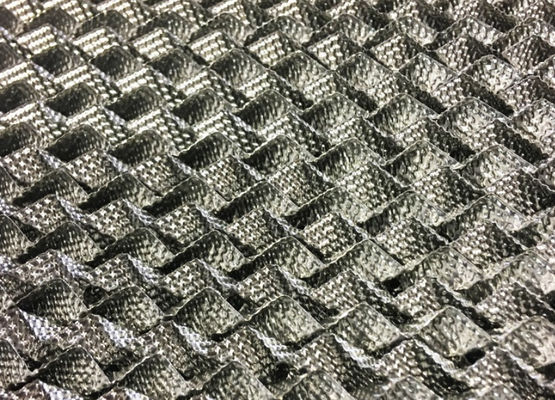

Model Wire Gauze Structured Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model Specific surface Bulk density Void ratio Obl. ΔP Theo. plate HETP/mm F factor m/s (kg/m3)0.5
  (m2/m3) (kg/m3) (%) angle (Pa/plate) (piece/m)
250AX 250 125 95 30 100-400 2.5~3 100 2.5-3.5
500BX 500 250 90 30 400 4~5 200 2.0-2.4
700CY 700 350 85 45 600-700 8~10 333-400 1.5-2.0

Typical Application Absorption, scrubbing and stripping services

Package : Carton box; wooden box
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
  b) Offer lifetime consultation on problems occurred



250(AX), Precision rectification for high productive capacity and less theoretical plate number.

500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7Kpa.

700(CX), Separation of isotopic compound and isomeric compound.



Metal Structured Packing Features



(1) High capacity. New tower design may reduce diameter, while renovate old towers
may increase capacity significantly.

(2) High separation efficiency. Since it has much larger specific surface area compared
to random packing.

(3) Low pressure drop, which leads to reduce energy consumption largely.

(4) Large flexibility, and scale effect is not obvious.

(5) Suitable for all tower diameters.

(6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic acid and Cl- .



Metal Structured Packing Application



Refinery columns (atmospheric and under vacuum).

Petrochemical columns.

Natural gas glycol dehydration.

Wastewater treatment stripping columns.

Atmospheric pressure and high pressure columns.



Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y 0



Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y 1



Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y 2



Wire Mesh Corrugated Orifice Plate 316L Structured Packings For Tower 250Y 3



FAQ



-Q-: What makes your fence products different from other company’s?
-A-: Yuanhai fence provide free design service, customization and warranty service, with strictly quality control and very competitive price.

-Q-: Can I get a pcs of your products sample?
A-: Yes, free samples will be provided anytime.

-Q-: What type of materials do you use for fence?
A-: Most of the wire we use is low carbon steel wire. The core wire for razor wire is high tension strength steel wire. Post material is Q235.

-Q-: Will my fence rust, peel, fade or chip?
A-: It shows more details in our warranty policy. If without man-made crash, punch, acid wash, etc, the surface can last for more than 10 years.

-Q-: What are fittings and how are they used?
-A-: We have hundreds of fittings for our fence products. Different type of fence comes with different accessories

-Q-: How do I take care of my new fence?
-A-: Just try to avoid man-made crash, acid, etc.

-Q-: What type of fencing does YUANHAI FENCE offer?
-A-: Our mail products are welded mesh fence, double wire fence, 358 high security fence, chain link fence, temporary fence, portable fence, airport fence, barbed wire, concertina razor wire, razor wire fence and gabion box, etc.

-Q-: What types of payment do you accept?
-A-: We accept T/T(30%/70%), L/C at sight, cash.
