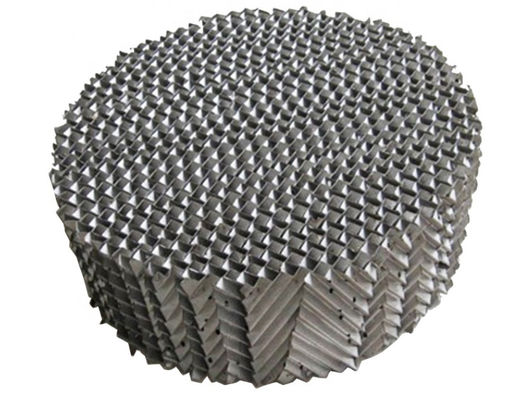

Corrugation Surface Chemical 700X/Y Metal Tower Packing For Separation

Corrugation Surface Chemical 700X/Y Metal Tower Packing For Separation
Corrugation Surface Chemical 700X/Y Metal Tower Packing For Separation Corrugation Surface Chemical 700X/Y Metal Tower Packing For Separation

Large Image :  Corrugation Surface Chemical 700X/Y Metal Tower Packing For Separation

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 20 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Chemical Composition: 99.95%Min
Usage: Mass Transfer Media Feature: High Mass Transfer
Brand Name: YuanHai Delivery Time: 3-7 Days After Received The Deposit
Application: Industry, Distillation Tower
Highlight:

700X Metal Tower Packing

,

700Y Metal Tower Packing

,

700Y Metal Structured Packing

Corrugation Surface Metal Tower Column Packing Chemical Tower For Separation​



Product Description



Structured packing include knitted structured packing,wire gauge structured packing,metal perforated plate corrugated packing.

Knitted structured packing is made from multiple strands of fine wire that are knitted together in a tubular pattern and then crimped and coiled or layered to provide a three dimensional structure of peak and valleys. The multi-strand fine wire provides a high surface area. This structured packing is suited for applications that demand high separation efficiency with a lower pressure drop, such as, high purity product distillations and solvent and byproduct recovery.

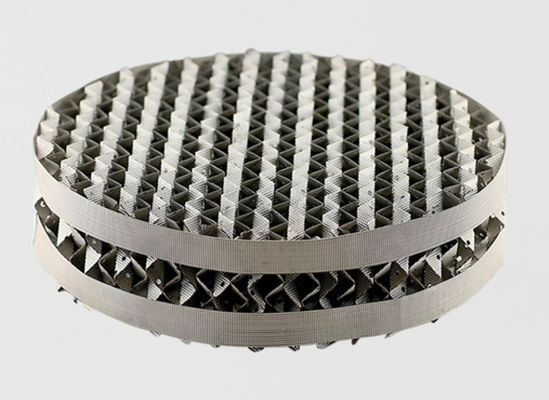

Wire gauge structured packing is manufactured from specially woven wire gauze that is pressed into smooth plates, uniformly perforated, corrugated and stacked with corrugations in alternate directions. This construction promotes intimate gas/liquid contact. The woven structured packing with of high separation efficiency, is used in pharmaceuticals and fine chemicals.

Metal perforated plate corrugated packing is made from perforated plate with channel corrugation on surface. It is formed from vertical sheets of corrugated metal with the angle of the corrugation reversed in adjacent sheets to form an open structure with inclined flow channel. The packing has advantages such as high capacity, low resistance, high mass-transfer efficiency and strong resistance to fouling. It is widely used in unit operations like rectification, absorption and extraction.

Product Specification



  • Material: Stainless Steel 304, 304L, 316, 316L, 410, Carbon Steel.
  • Type: 125X/Y, 250X/Y, 350X/Y, 500X/Y, 700X/Y.



Product Name Metal Structured Tower Packing
Model EYZL70221E1
Material PP/PVC/Stainless steel/Carbon steel/Aluminum/Copper/Ceramic
Life Span >3years
Plastic Corrugated Plate Packing(X:Incline angl 30°, Y:Incline angle 45°)
Type

Surface Area

m²/m³

Volid

%

Pressure Drop

Mpa/m

Packing Density

kg/m

Theo Plate

Liquid Loading

m³/m².hr

Max F Factor

m-1

SB-125Y 125 98 2*10-4 45 1-2 0.20-100 3
SB-250Y 250 97 3*10-4 60 2-2.5 0.20-100 2.6
SB-350Y 350 94 2*10-4 80 3.5-4 0.20-100 2
SB-500Y 500 92 3*10-4 130 4-4.5 0.20-100 1.8
SB-125X 125 98 1.4* 10-4 40 0.8-1.9 0.20-100 3.5
SB-250X 250 97 1.8*10-4 55 1.5-2 0.20-100 2.8
SB-350X 350 94 1.3*10-4 75 2.3-2.8 0.20-100 2.2
SB-500X 500 92 1.8*10-4 120 2.8-3.2 0.20-100 2



Product Advantages



  • Low pressure drop.
  • Large contacting surface area.
  • High separation and filtering efficiency.
  • High capacity.
  • Reduced liquid hold-up performance.
  • Corrosion and high temperature resistance.



 Product Application



The classic application fields for structured metal packing are processes with following operation conditions:

  • Low liquid loads.
  • High gas loads.
  • Requirement for low pressure drop.

These conditions are common in many vacuum distillation and rectification processes as well as in amine scrubbers, and applications in the field of fine chemical, flavors factory, isomer separation, separation of thermally sensitive materials and testing tower.
