Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall

Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall
Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall

Large Image :  Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH006
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: Negotiable

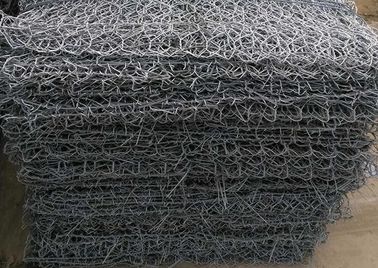

Packaging Details: fold and press the gabion into bundle, then wrapped with 2-4 steel strips
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 1000 Sets per Week
Detailed Product Description
Wire Gauge: 2.0-5.0mm Surface Treatment: Zinc Plated/ Hot Dip Galvanized
Feature: Easily Assembled Exterior Dimension: 1030LX840WX850H (mm)
Interior Dimension: 950LX760WX700H (mm) Loading Capacity: 1300 Kg
Product Name: Gabions Stone Cage Certificate: ISO9001:2008
Brand Name: Yuanhai Place Of Origin: Hebei Province,China
High Light:

retaining wall wire mesh gabion basket

,

galvanized wire mesh gabion basket

,

pvc coated hexagonal gabion basket

PVC Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall





Description of Gabion Wire Mesh



Gabion box can be used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.

Welded gabion box is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Welded Gabion box is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.



Intruduction of Gabion Wire Mesh



1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).

2. Zinc coating : 225-275g/m2.

3. Tensile strength between 380N/mm2 -- 500N/mm2.

4. Elongation≥ 12%.

5.Wire Diameter:2.4-3.5mm

6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.

7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.



Specificationof Gabion Wire Mesh



1. Wire Diameter



Mesh Wire(mm) Selvedge Wire(mm) Binding Wire(mm)
2.0 2.4 2.2
2.2 2.7 2.2
2.4 3.0 2.2
2.7 3.4 2.2
2.75 3.4 2.2
3.0 3.9 2.2
3.4 4.4 2.2

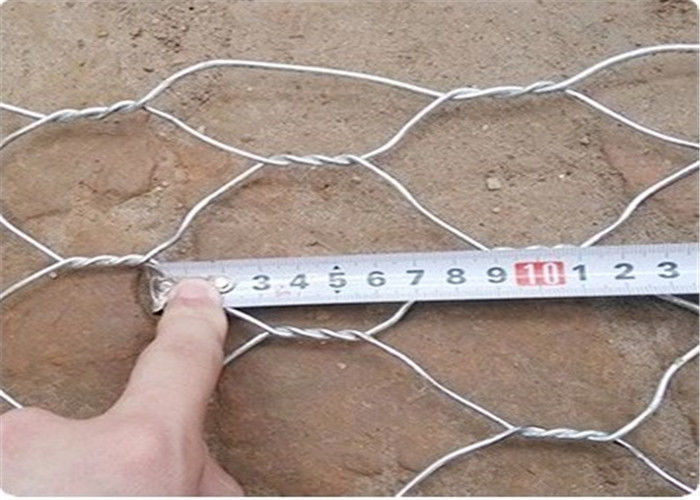

2. Mesh Size



Size(mm) .jpg
60x80
80x100
100x120
110x150
220x240



Features&Advantages of Gabion Wire Mesh



(1) Construction is simple,

(2) Can withstand a large range of deformation, but still does not collapse.

(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.

(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.

(5) Saving transportation costs.Fold transport and assemble on site.

(6) Good flexibility: no structural joints, the overall structure has ductility.

(7) Corrosion resistance: PVC coating is not afraid of erosion.



Application of Gabion Wire Mesh



Stone cage net is mainly used to guide the river water, rivers tend to follow the inherent flow channel, channel may be a natural bend channel, in the event of the flood, water quantity is huge, fast-flowing, water will be under the inertia, tending to straight to flow, will violently impact the original channel and dam, may be diverted the river, that will cause great disaster.In order to reduce the rapid water erosion of the embankment, the inside of the embankment or the edge of the channel, stone cage cage or stone cage mat, the turbulent river directly impact the stone cage cage or stone cage mat, so as to protect the embankment or channel.The river in the bend of the river, due to the stone cage cage or stone cage mat, the river will turn, along the inherent river flow.This will guide the river to safety.Stone cage net is also applied to spillway dam and diversion dam, to guide or restrain the flood.



a. Control and guide of water or flood

b. Flood bank or guiding bank

c. Preventing of rock breaking

d. Water and soil protection

e. Bridge protection

f. Strengthening structure of soil

g. Protection engineering of seaside area



Product Show



Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall 1



Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall 2



Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall 3



Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall 4



Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall 5



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Pvc Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall 6
