Product Details:
Payment & Shipping Terms:
|
| Port: | Tianjin Xingang Port | Application Field: | Industrial |
|---|---|---|---|
| Material: | SS304 SS304L SS316 SS316 | Sample: | For Free |
| Application: | Absorption, Scrubbing, And Stripping Services | Shape: | Round, Ring |
| Package: | By Wooden Box | ||
| Highlight: | ss 304 metal tower packing,high efficiency metal tower packing,round metal random packing |
||

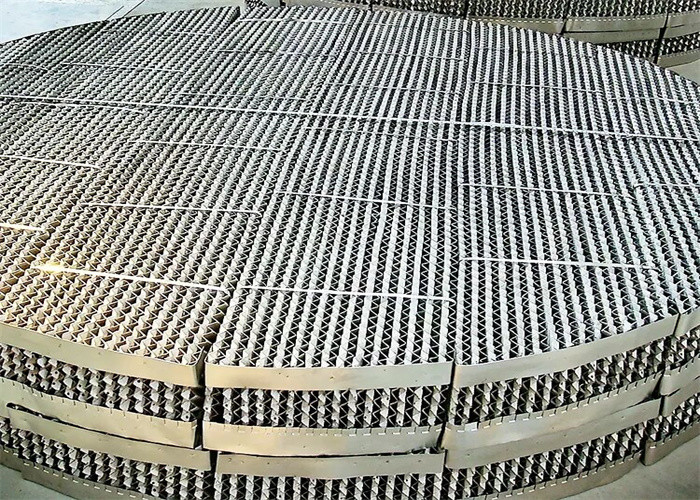

Metal Structured Packing is composed of perforated plates with channel corrugations on surfaces. This retains the structural feature of metal wire gauze packing.
The metal structured tower packing has enhanced features such as uniform liquid distribution and increased surface wettability, which result in an increased mass transfer efficiency. Other advantages of metal structured packing include a large specific surface area, high void ratio, light weight, small and regular gas paths, low pressure drop, good radial diffusion, and sufficient gas-liquid contact.
| Model | Wire Gauze Structured Packing | |||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
| Package : | Carton box; wooden box | |||||||
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||
Optimized metal tower packing is often used for vacuum distillation and heat transfer.
For gas absorption, wet scrubbers are widely used. These have the advantage over other systems as they are able to remove water soluble aerosols as well as certain harmful gases from exhaust air.
Cooling towers are also used for heat transfer, helping equipment to efficiently release heat without overheating.
For liquid particle removal, mist eliminators are the preferred choice. These enable collection of smaller particles within the process system.
Gas absorption columns and gas strippers are also utilized, enabling the efficient transport of gas or liquid vapour from one area to another.
Finally, air washers are ideal for air cleaning, and are often seen in HVAC systems.
Brand Name: Yuanhai
Model Number: YH-009
Place of Origin: Hebei Province,China
Port: Tianjin Xingang Port
Material: SS304 SS304L SS316 SS316
Pressure Resistance: High
Price: Negotiable
Shape: Round, Ring
Metal Random Packing, Tower Packing For Gas Scrubbing , Tower Packing For Gas Scrubbing
Metal Tower Packing provides technical support and services to ensure that our customers have the best experience possible. Our technical team is available 24/7 to answer any questions and provide guidance on installation, usage, and maintenance of our products. We also offer regular maintenance and troubleshooting services to ensure that our products are running smoothly. Furthermore, we provide free training and consultation services to help customers maximize the performance of their Metal Tower Packing products.
Metal Tower Packing is packaged and shipped in a variety of ways to meet the needs of customers. Depending on the size and weight of the product, it can be shipped in boxes, crates, or even pallets. All packages are secured with protective materials to ensure a e delivery. Delivery time depends on the shipping method chosen. Delivery options include ground, air, and express.
