Product Description:

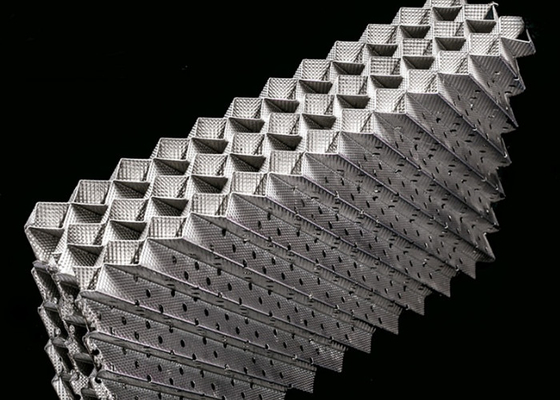

Metal Structured Packing is made out of perforated plate with channel corrugation on the surface, that maintains the characteristics of metal wire gauze packing. This metal structure tower packing acts as a reinforcing tool increases liquid distribution and wetting surface, leading to an improved of mass transfer. Additionally, it provides customers with a great deal of benefits such as small gas path obliquity, regularity, a low pressure drop, and a promising radial diffusion where a sufficient supply of gas and liquid is seen.
It is also noted that the metal structured packing has other perks such as a larger specific surface, a higher void ratio, and a light weight. These characteristics make the metal structured perfect for a number of different applications, such as gas absorption, desorption, rectification, and more. With all the benefits this packing offers, it is no wonder why it is such as widely used product.
| Model |
Wire Gauze Structured Packing |
| Material |
SS 304, 304L, 410, 316, 316L, etc. |
| Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
ΔP |
Theo. plate |
HETP/mm |
F factor m/s (kg/m3)0.5 |
| |
(m2/m3) |
(kg/m3) |
(%) |
angle |
(Pa/plate) |
(piece/m) |
|
|
| 250AX |
250 |
125 |
95 |
30 |
100-400 |
2.5~3 |
100 |
2.5-3.5 |
| 500BX |
500 |
250 |
90 |
30 |
400 |
4~5 |
200 |
2.0-2.4 |
| 700CY |
700 |
350 |
85 |
45 |
600-700 |
8~10 |
333-400 |
1.5-2.0 |
| |
|
|
|
|
|
|
|
|
| Typical Application |
Absorption, scrubbing and stripping services |
| |
| Package : |
Carton box; wooden box |
| Warranty: |
a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| |
b) Offer lifetime consultation on problems occurred |
Applications:
Metal Tower Packing is needed for Vacuum distillation to ensure efficient heat transfer. We can also use Wet scrubbers for gas absorption, while Cooling towers are for heat transfer. Mist eliminators are employed to remove liquid particles, and Gas absorption columns and Gas strippers are also used. Air washers can help to separate impurities from the gas or liquid material.
Customization:
Metal Tower Packing
Brand Name: Yuanhai
Model Number: YH-009
Place of Origin: Hebei Province, China
Keyword: Tower Packing
Usage: Chemical
Pressure Resistance: High
Price: Negotiable
Metal Structured Packing, Metal Random Packing, Packing For Gas Scrubbing 38mm
Support and Services:
Metal Tower Packing Technical Support and Services
We provide technical support and services for our Metal Tower Packing products. Our team of experts can help you with your product selection, installation, and maintenance. We also offer troubleshooting and repair services for products that have been installed and are not functioning properly.
Our support team is available 24/7 via phone, email, or online chat to answer any questions or concerns you may have. We strive to provide the best customer service, so if you need help with your Metal Tower Packing products, don't hesitate to contact us.
Packing and Shipping:
Metal Tower Packing Packaging & Shipping:
- Metal Tower Packing must be packaged in a manner that protects it from environmental elements.
- Metal Tower Packing must be placed in an appropriate corrugated box of the correct size and strength.
- Packing list and/or product identification labels must be securely attached to the outside of the box.
- Metal Tower Packing must be shipped in accordance with applicable DOT and IATA regulations.
FAQ:
- Q: What is Metal Tower Packing?
A: Metal Tower Packing is a type of packing material made of stainless steel wire mesh by a process of weaving or welding. It is widely used for distillation, absorption, and other mass transfer operations in chemical and petrochemical industries.
- Q: What is the brand name of the Metal Tower Packing?
A: The brand name of the Metal Tower Packing is Yuanhai.
- Q: What is the model number of the Metal Tower Packing?
A: The model number of the Metal Tower Packing is YH-009.
- Q: Where is the Metal Tower Packing made?
A: The Metal Tower Packing is made in Hebei Province, China.
- Q: What are the advantages of using Metal Tower Packing?
A: The advantages of using Metal Tower Packing include high mechanical strength, low pressure drop, high mass transfer efficiency, low liquid holdup, and low installation cost.
