Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production

Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production
Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production

Large Image :  Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiable
Packaging Details: By wooden box
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Pallet: Wooden Box, Carton Box, Pallet MOQ: 1 Piece
Product Name: Demister Pad Thickness: Customized
Port Of Loading: Xingang Port,China Length: Customized
High Light:

OEM wire mesh demister pad

,

pharmaceutical production wire mesh demister pad

,

liquid gas separation demister mesh pad



Optimal Liquid-Gas Separation with Wire Mesh Demister Pad OEM

Product Description:

Wire mesh demisters, also known as wire mesh defoggers or bubble traps, are highly efficient gas-liquid separation devices that are widely used in a variety of industries. These include the chemical, petroleum, sulfuric acid, pharmaceutical, light industry, metallurgy, machinery, construction and aviation sectors, as well as in maritime transport and environmental protection. In addition, wire mesh defoggers are used to separate droplets having a diameter of more than 3 μm to 5 μm in many of the production equipments imported from abroad, such as ethylene, synthetic ammonia and chemical fiber.
In summary, these wire mesh gas-liquid separation devices have many applications across a variety of industries. They are incredibly efficient devices for separating droplets of a certain size, and are thus an important aspect of equipment production in many places.



Features:

This filtration system has many advantages that ensure its superior performance and efficiency:

  • A high removal efficiency for particles of any size.
  • A negligible pressure drop, offering a maximum of 25mm of water gauge.
  • An easy yet durable installation in existing vessels.
  • No need for maintenance and service; and no corrosion or temperature limitations.
  • No restrictions on size or shape.

Furthermore, this system boasts exceptional features that make it highly desirable:

  • Neat and precise filtration.
  • Very reliable filtering precision.
  • High thermal and shock resistance.
  • Extremely strong compressive strength for long-term performance.
  • High corrosion and rust resistance.
  • Great wear-resistance to maintain peak performance.


Specifications:


(1) standard type

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α (m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320


(2) High Penetration

Wire Diameter
dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217


(3) High Efficiency

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484



Technical Parameters:

Parameter Value
Pallet Wooden Box, Carton Box, Pallet
MOQ 1 Piece
Keyword Stainless Steel Wire Mesh Demister
Thickness Customized
Brand Name Yuanhai
Type Filter
Port of Loading Xingang Port,China
Certification ISO9001:2015
Filter Rating 99.9%
Length Customized
Keywords SS 304 Gas-liquid Filter, For Vapor-liquid Filter, Demister Pad For Liquid And Gas Seperation


Applications:

It is widely used in many industries, such as petroleum, chemistry, metallurgy, machine, pharmaceuticals, automobile and environmental protection. It is mainly used in distillating, absorbing, evaporating and filtering processes to remove any entrainment and foam that is present in gas and liquid.
Distillating is the process of evaporating and condensing a liquid to purify it. The entrainment is the unwanted substance in the gas or liquid. Foam is the gas or liquid which contains many small bubbles. Therefore, the main purpose of using this technique is to remove or reduce the entrainment and foam from gas and liquid.

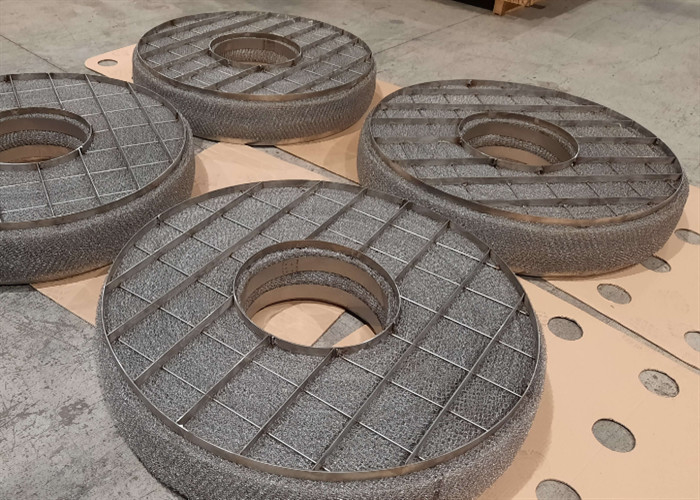

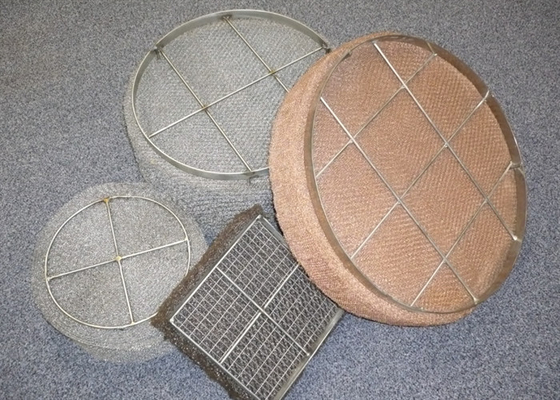

Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production 0
Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production 1
Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production 2
Oem Wire Mesh Demister Pad Liquid Gas Separation Pharmaceutical Production 3

Support and Services:

Wire Mesh Demister Pad Technical Support and Services

  • Provide professional technical advice and solutions for Wire Mesh Demister Pad.
  • Provide technical training for Wire Mesh Demister Pad.
  • Provide comprehensive maintenance and after-sales service for Wire Mesh Demister Pad.
  • Provide a one year warranty for Wire Mesh Demister Pad.
  • Provide full range of spare parts for Wire Mesh Demister Pad.


FAQ:

Q:What is the brand name of Wire Mesh Demister Pad?
A: The brand name of Wire Mesh Demister Pad is Yuanhai.
Q: What is the model number of Wire Mesh Demister Pad?
A: The model number of Wire Mesh Demister Pad is YH-06.
Q: Where is the place of origin of Wire Mesh Demister Pad?
A: The place of origin of Wire Mesh Demister Pad is Hebei Province,China.
Q: What is the minimum order quantity of Wire Mesh Demister Pad?
A: The minimum order quantity of Wire Mesh Demister Pad is 5 PCS.
Q: How about the price of Wire Mesh Demister Pad?
A: The price of Wire Mesh Demister Pad is negotiable.
