Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel

Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel
Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel

Large Image :  Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiable
Packaging Details: By wooden box
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Filter Rating: 99.9% Thickness: Customized
Keyword: Stainless Steel Wire Mesh Demister Port Of Loading: Xingang Port
Pallet: Wooden Box, Carton Box, Pallet
High Light:

wire mesh demister knitted pad

,

wire mesh demister 99.9% pad

,

99.9% demister mesh pad



Yuanhai Stainless Steel Knitted Mesh with Filter Rating 99.9% and Performance

Product Description:

Wire mesh demister (also known as wire mesh defogger, bubble trap) is an incredibly effective device used to separate gas and liquid. It can be used to separate droplets with a diameter of between 3μm and 5μm.

This device is widely used in many industries such as chemical, petroleum, pharmaceutical, light industry, metallurgy, machinery, construction, and aviation. And in industries such as maritime transport and environmental protection, it is also used in the production equipments such as ethylene, synthetic ammonia, and chemical fiber which have been imported from abroad.



Specifications:



(1) standard type

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α (m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320



(2) High Penetration

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217



(3) High Efficiency

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484

Features:

This product offers users high removal efficacy with a negligible pressure drop, less than 25mm of water gauge. Additionally, it requires no maintenance or service since it has no corrosion or temperature limitations. It is easily installed in existing vessels and has no limitation on size or shape. Additionally, it delivers consistent performance with its:

  • Neat and precise operations
  • Reliable filtering precision
  • Thermal and shock resistance
  • High compressive strength
  • Corrosion and rust resistance
  • Wear-resistance


Technical Parameters:

Product Name Demister Pad
MOQ 1 Piece
Thickness Customized
Price Negotiable
Port of Loading Xingang Port, China
Certification ISO9001:2015
Width Customized
Type Filter
Place of Origin Hebei Province, China
Filter Rating 99.9%
OEM Available
Mist Eliminator Pad For Oil Gas Separation Available


Applications:

This technology is extensively used in petroleum, chemistry, metallurgy, machinery, pharmaceuticals, automobile and environment protection industry for distillation, absorption, evaporation and filtration. This is done in order to remove any particles or foam that may be mixed in the liquid or gas.

The advantages of this technology are numerous: it eliminates the need for manual operations while improving work safety, reduces the usage of water and greatly cuts down production costs, ultimately leading to a higher production efficiency and better environmental protection.

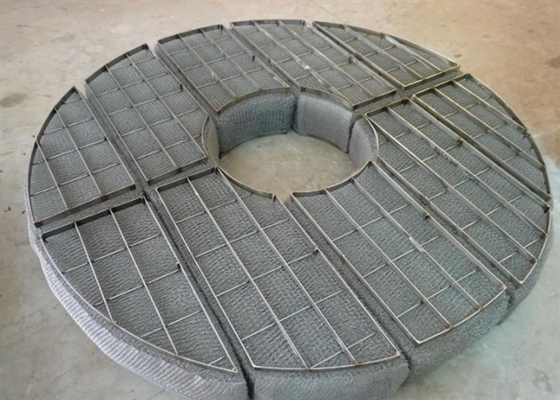

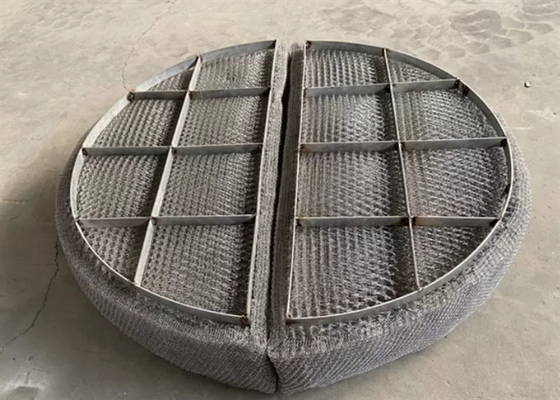

Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel 0

Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel 1

Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel 2

Knitted Wire Mesh Demister Filter Rating 99.9% Performance Stainless Steel 3

Support and Services:

We provide technical support and services for Wire Mesh Demister Pad. Our technical support team is available 24/7 to answer any questions you may have about our products. We provide a range of services including installation, maintenance, repair, and troubleshooting. We also provide product training and educational resources to help you understand and get the most out of your purchase. Our customer support team is always ready to assist you with any inquiries you may have.



FAQ:

Q1: What is the Brand Name of Wire Mesh Demister Pad?
A1: The Brand Name of Wire Mesh Demister Pad is Yuanhai.
Q2: What is the Model Number of Wire Mesh Demister Pad?
A2: The Model Number of Wire Mesh Demister Pad is YH-06.
Q3: Where is the Place of Origin of Wire Mesh Demister Pad?
A3: The Place of Origin of Wire Mesh Demister Pad is Hebei Province,China.
Q4: What is the Certification of Wire Mesh Demister Pad?
A4: The Certification of Wire Mesh Demister Pad is ISO9001:2015.
Q5: What is the Minimum Order Quantity of Wire Mesh Demister Pad?
A5: The Minimum Order Quantity of Wire Mesh Demister Pad is 5 PCS.
