Stainless Steel Wire Mesh Demister Pad Customized Thickness

Stainless Steel Wire Mesh Demister Pad Customized Thickness
Stainless Steel Wire Mesh Demister Pad Customized Thickness Stainless Steel Wire Mesh Demister Pad Customized Thickness

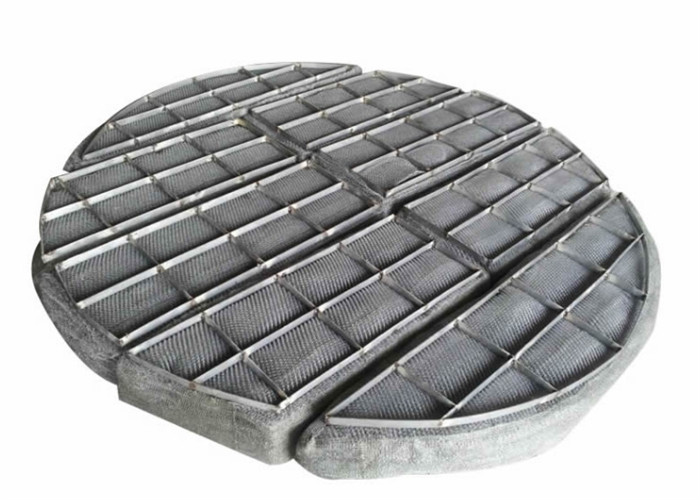

Large Image :  Stainless Steel Wire Mesh Demister Pad Customized Thickness

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: Negotiable
Packaging Details: By wooden box
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Filter Rating: 99.9% MOQ: 1 Piece
Product Name: Demister Pad Length: Customized
Keyword: Stainless Steel Wire Mesh Demister
High Light:

stainless steel wire mesh demister pad

,

customized thickness wire mesh demister pad

,

customized thickness stainless demister mesh pad

Product Description:

Wire mesh demister, also known as wire mesh defogger or bubble trap, is an extremely powerful gas-liquid separator that is extensively used in a variety of industrial areas. Chemical, petroleum refining, pharmaceutical production, light industires, metallurgy, construction, and aviation are among the industries that use wire mesh demister. Additionally, maritime transport and environmental protections sectors use this device as a gas-liquid separator in foreign production equipment, such as those used in the production of ethylene, synthetic ammonia, and chemical fiber. The main purpose of wire mesh demister is to separate particlies which have a diameter greater than 3μm to 5μm.



Features:

This product has many advantages, such as high removal efficiency,Remarkably low pressure drop of less than 25mm of water gauge, no requirement for maintenance or services,withstanding any corrosion or temperature limitations,Being easy to install in existent vessels, no limitation on size or shape.

Furthermore, It is an ideal environment-friendly filtration solution which affords neat and precise filtering precision,High thermal and shock resistance, excellent compressive strength, anti-corrosion and rust resistance, as well as wear-resistance.



Technical Parameters:

Attribute Value
Brand Name Yuanhai
Product Name Demister Pad
Price Negotiable
Pallet Wooden Box, Carton Box, Pallet
Length Customized
Certification ISO9001:2015
Type Filter
Port of Loading Xingang Port, China
Filter Rating 99.9%
MOQ 1 Piece
Keyword York Mesh 431, SS 304 Demister Pad For Filter, Oil Mist Eliminator



Specifications:



(1) standard type

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α (m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320



(2) High Penetration

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217



(3) High Efficiency

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484



Applications:

As a widely utilized technology, distillation and filtration can be implemented in a variety of industries from petrochemicals to automotive manufacturing and environmental protection.

It is used to remove the impurities and foam in gas and liquids through evaporation, absorbing, and filtering, known as entrainment.



Support and Services:

Wire Mesh Demister Pad technical support and services include:

  • Assistance with product selection
  • Installation guidance
  • Troubleshooting advice
  • Equipment maintenance guidance
  • Replacement parts
  • Warranty information
  • Technical documentation

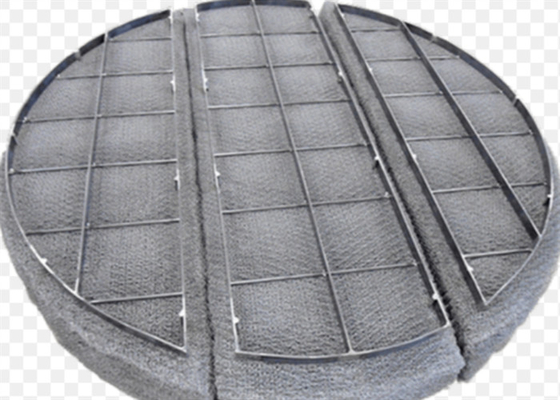

Stainless Steel Wire Mesh Demister Pad Customized Thickness 0

Stainless Steel Wire Mesh Demister Pad Customized Thickness 1

Stainless Steel Wire Mesh Demister Pad Customized Thickness 2

FAQ:

  • Q: What is Wire Mesh Demister Pad?
    A: Wire Mesh Demister Pad is a kind of mist eliminator which is used to remove droplets from the gas stream. It is made of knitted wire mesh and is manufactured by Yuanhai in Hebei Province, China with ISO9001:2015 certification.
  • Q: What is the minimum order quantity?
    A: The minimum order quantity of Wire Mesh Demister Pad is 5 PCS.
  • Q: What is the price?
    A: The price is negotiable.
  • Q: What is the packaging?
    A: The Wire Mesh Demister Pad is usually packed by wooden box.
  • Q: How long is the delivery time?
    A: The delivery time is about 10 days.
