2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River

2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River

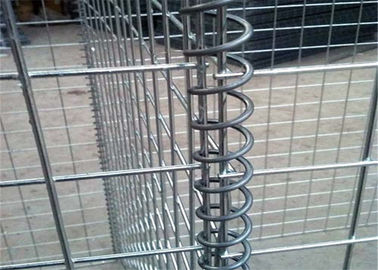

2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River 2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River

Large Image :  2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Port Of Loading: Xingang Port Material: Low-Carbon Iron Wire
Key Word: Gabion Box Zinc Coated: 220-270g
Mesh Hole: 60x80mm/80x100mm/10x12mm Packing: Packed In Bundles Or Pallets
Standard: ASTM A974 Other Name: Gabion Wire Mesh/Stone Cage
High Light:

2x1x1m Gabion Basket Wire Mesh

,

ASTM A974 Gabion Basket Wire Mesh

,

Gabion Basket Mesh For River

Product Description:

Gabion basket, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc. has been widely used in recent years in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects. This structure is made from high-strength low carbon galvanized steel wire or 5%-10% thin alloy coated steel wire (or homogeneous coated polymer steel wire). The wires are twisted and hexagonal mesh mesh by machine, and the length of the double hinge part should not be less than 5cm in order not to damage the protective coating of the steel wire. Refer to YB/T4221-2010 for further details.

The gabion mesh can be assembled into boxes according to engineering design requirements and be connected with blocks and stones filling materials. As a result, it is used as a new technology in embankment, roadbed protection and other engineering works.



Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of Diaphragm Approximate dimensions and Volumes Tolerance Color Wire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100

80x120

100x120

120x150
1 2.00 1.00 0.30 0.60 Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
1 2.00 1.00 0.50 1.00
1 2.00 1.00 1.00 2.00
2 3.00 1.00 0.30 0.90
2 3.00 1.00 0.50 1.50
2 3.00 1.00 1.00 3.00
3 4.00 1.00 0.30 1.20
3 4.00 1.00 0.50 2.00
3 4.00 1.00 1.00 4.00
1 2.00 0.50 0.50 0.50
2 3.00 0.50 0.50 0.75
Note: other size can be produced according to customer's request

Features:

River stone cage, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., is a new material structure that has been widely used in recent years in traffic, water conservancy, municipal, garden, soil and water conservation and other engineering projects.

They are made of high-strength and low carbon galvanized steel wires or 5%-10% thin alloy coated steel wires (or homogenous coated polymer steel wires) with corrosion resistance, which are twisted and twisted into hexagonal meshes by machine. The length of the double hinge part should not be less than 5 cm in order not to damage the protective coating of the steel wire. For details, please refer to the Industry Standard YB/T4221-2010.

Gabion mesh can be assembled into boxes according to engineering design requirements, and rocks and other filling materials can be connected into one, which can be used as embankment and roadway protection for new technologies in engineering.



Technical Parameters:

This material used in the production is low carbon steel wire. It is characterized by two aspects: specifications and weaving technology. The specifications are 2X1X1, 3X1X1, 4X1X1 and customizable (M), and the weaving technology is twist knitting. The mesh is from a quarter to eight, the wire diameter is within the range of 1.5 mm to 5.0 mm, and the aperture is 60*80, 100*120, 120*150, and 160*180. This product originates in Anping, Hebei. It has a wide array of uses, including coastal defense engineering, river protection, garden landscape, etc. It is finished with a surface treatment process of plastic-coated PVC.



Applications:

Stone cage net is mainly used to guide the river water. Rivers tend to follow the inherent flow channel, which may be a natural bend channel. In the event of a flood, with its huge and fast-flowing water quantity, the water will be under the inertia, tending to straighten its flow and violently impact the original channel and dam, possibly diverting the river and causing great disaster.

In order to reduce the rapid water erosion of the embankment, Stone Cage Cage or Stone Cage Mat is installed inside the embankment or along the edge of the channel. The turbulent river directly impacts the Stone Cage Cage or Stone Cage Mat, thus protecting the embankment or channel. On the bend of the river, due to the Stone Cage Cage or Stone Cage Mat, the river will be guided to turn, along its inherent river flow, leading it to safety.

Stone cage net is also applied to spillway dams and diversion dams, in order to guide or restrain the flood. With its presence, these engineering structures will be much more effective and safe.

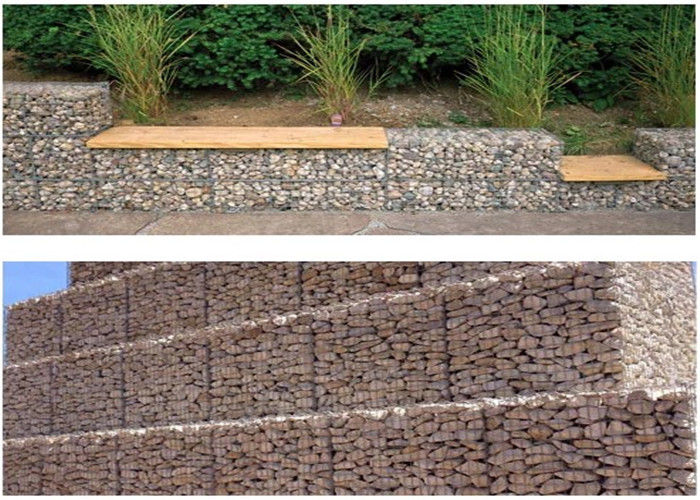

2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River 0

2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River 1

2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River 2

2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River 3



2x1x1m Gabion Basket Wire Mesh ASTM A974 Standard For River 4

Support and Services:

Technical Support and Service for Gabion Wire Mesh

We offer a comprehensive technical support and service for Gabion Wire Mesh. Our experienced staff can help you choose the right product for your needs and provide answers to any questions you may have. We also provide installation and maintenance services, as well as on-site troubleshooting and repair.

Our team of experienced technicians are available to help with any issues you may experience. We provide personalized service to ensure that you get the most out of your Gabion Wire Mesh. We also offer advice on how to best use and maintain your product.

We strive to provide the highest quality technical support and service for Gabion Wire Mesh. We are committed to delivering superior customer service and satisfaction. If you have any questions or concerns, please do not hesitate to contact us.



FAQ:

Q1: What is Gabion Wire Mesh?
A1: Gabion Wire Mesh is a kind of mesh with hexagonal opening, which is made of high quality galvanized iron wire or PVC coated wire.
Q2: What is the Brand Name of Gabion Wire Mesh?
A2: The Brand Name of Gabion Wire Mesh is Yuanhai.
Q3: What is the Model Number of Gabion Wire Mesh?
A3: The Model Number of Gabion Wire Mesh is YH-08.
Q4: Where is the Place of Origin of Gabion Wire Mesh?
A4: The Place of Origin of Gabion Wire Mesh is Hebei Province, China.
Q5: What is the Minimum Order Quantity for Gabion Wire Mesh?
A5: The Minimum Order Quantity for Gabion Wire Mesh is 100 PCS.
