Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

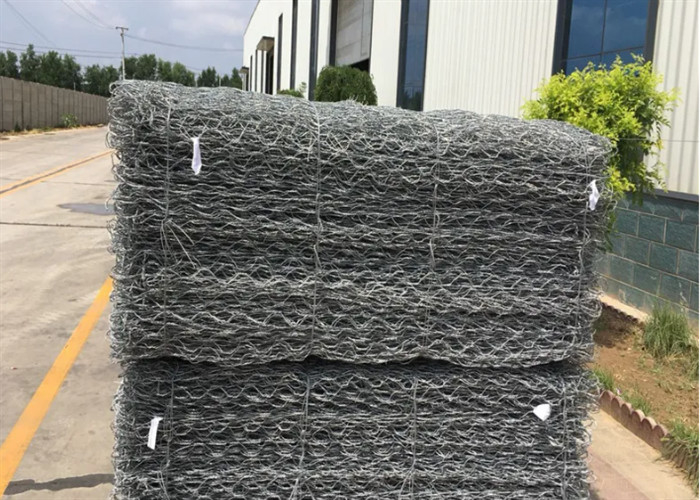

Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall

Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall
Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall

Large Image :  Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Mesh Hole: 60x80mm/80x100mm/10x12mm Standard: ASTM A974
Key Word: Gabion Box Surface Treatment: Hot Dipped Galvanized/PVC Coated
Packing: Packed In Bundles Or Pallets Other Name: Gabion Wire Mesh/Stone Cage
Material: Low-Carbon Iron Wire Sample: Free Sample
High Light:

hdg Fine Mesh Metals Gabion Baskets

,

120x150 Fine Mesh Metals Gabion Baskets

,

Rock Retaining Wall Gabion Basket Mesh

Product Description:

Gabion basket, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, or gabion cage, is a new material structure that is widely used in traffic, water conservancy, municipal, gardens, soil and water conservation, and other engineering projects.

This ecological grid is corrosion-resistant with a high strength low carbon galvanized steel wire or 5%-10% thin alloy coated steel wire (or homogeneous coated polymer steel wire). The wires are twisted into hexagonal mesh mesh and the double hinge part should not be less than 5 cm long in order to protect the steel wire’s protective coating. For more details, please read Industry Standard YB/T4221-2010.

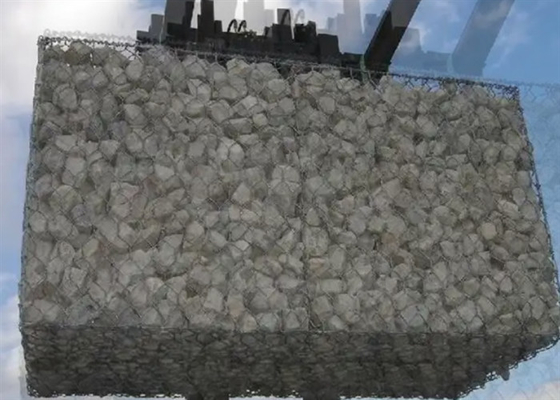

Gabion mesh can be assembled into boxes according to engineering design requirements, and loaded with blocks and stones as well as other filling materials to form a combined structure, which can then be used as embankment, roadbed protection, or other engineering new technologies.



Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of Diaphragm Approximate dimensions and Volumes Tolerance Color Wire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100

80x120

100x120

120x150
1 2.00 1.00 0.30 0.60 Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
1 2.00 1.00 0.50 1.00
1 2.00 1.00 1.00 2.00
2 3.00 1.00 0.30 0.90
2 3.00 1.00 0.50 1.50
2 3.00 1.00 1.00 3.00
3 4.00 1.00 0.30 1.20
3 4.00 1.00 0.50 2.00
3 4.00 1.00 1.00 4.00
1 2.00 0.50 0.50 0.50
2 3.00 0.50 0.50 0.75
Note: other size can be produced according to customer's request

Features:

River Stone Cage, also called Gabion Mesh, Green Grid, Gabion Retaining Wall, Reynolds Pad, Reinforced Gabion, Gabion Cage, etc., is a new material structure which is widely used in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects in recent years. It is made from high strength low carbon galvanized steel wire or 5%~10% thin alloy coated steel wire (or homogeneous coated polymer steel wire) with corrosion resistant. The double hinge part of the mesh should be at least 5cm in length in order to not destroy the protective coating of the steel wire. Details could be found in the industry standard YB/T4221-2010. Gabion Mesh can be assembled into boxes according to engineering design requirements, and connected with block and stones along with other filling materials into one structure. This new engineering technology is used in embankment, roadbed protection and other projects.


Technical Parameters:

Low carbon steel wire with varying specifications is available for purchase:

  • 2X1X1
  • 3X1X1
  • 4X1X1 (Customizable)This wire is twist knitted with mesh sizes varying from a quarter to eight, and a wire diameter ranging from 1.5mm to 5.0mm. The aperture sizes are as follows:
    • 60*80
    • 100*120
    • 120*150
    • 160*180
    The wire originates from Anping, which is located in Hebei, and can be used for various purposes such as coastal defense engineering, river protection and garden landscape. Additionally, it can come with surface treatment process like plastic-coated PVC and zinc-coated.





    Applications:

    Stone cage net is mainly used to guide the river water, since rivers tend to follow the flow along the channel they are used to in normal cases. If the flood is coming with huge quantities of water, the waters will be flowing straight very fast due to inertia and will impact the original channel and embankment, potentially even diverting the river and causing disasters.

    In order to reduce the impact of these rapid floods, stone cage net is positioned inside the embankment or along the edge of the channel. The turbulent rivers directly collide with these stone cages or stone cage mats, and it protects the embankments and channels from being destroyed.

    At the bends of the rivers, due the presence of these stone cage nets or the stone cage mats, the rivers get diverted to the regular flow channel which keeps them guided to the safe routes.

    These stone cage nets can also be applied to the spillway dams and diversion dams to guide or restrain the floods towards the right routes.


    Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall 0Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall 1Hdg 120x150 Fine Mesh Metals Gabion Baskets For Rock Retaining Wall 2

    Support and Services:

    Gabion Wire Mesh Technical Support and Service

    Our team of experienced professionals are dedicated to ensuring that our customers receive the highest quality of technical support and service for their Gabion wire mesh products. We strive to provide our customers with the best possible advice and guidance throughout the entire process, from the initial consultation to the final installation. Our team of experts are highly knowledgeable in the areas of installation, design, material selection, and maintenance of Gabion wire mesh products.

    We offer a variety of services to ensure that our customers have the best possible experience when using our Gabion wire mesh products. These services include:

    • Expert advice and guidance on the selection and installation of Gabion wire mesh products.
    • Technical support for installation and maintenance.
    • Design and engineering assistance.
    • On-site training and consultation.

    We are committed to providing our customers with the best possible service and support for their Gabion wire mesh products. If you have any questions or need assistance with your Gabion wire mesh products, please do not hesitate to contact us.



    FAQ:

    Q: What is the Brand Name of the Gabion Wire Mesh?
    A: The Brand Name of the Gabion Wire Mesh is Yuanhai.
    Q: What is the Model Number of the Gabion Wire Mesh?
    A: The Model Number of the Gabion Wire Mesh is YH-08.
    Q: Where is the Place of Origin of the Gabion Wire Mesh?
    A: The Place of Origin of the Gabion Wire Mesh is Hebei Province,China.
    Q: What is the Certification of the Gabion Wire Mesh?
    A: The Certification of the Gabion Wire Mesh is ISO9001:2015.
    Q: What is the Minimum Order Quantity of the Gabion Wire Mesh?
    A: The Minimum Order Quantity of the Gabion Wire Mesh is 100 PCS.
