Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm

Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm
Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm

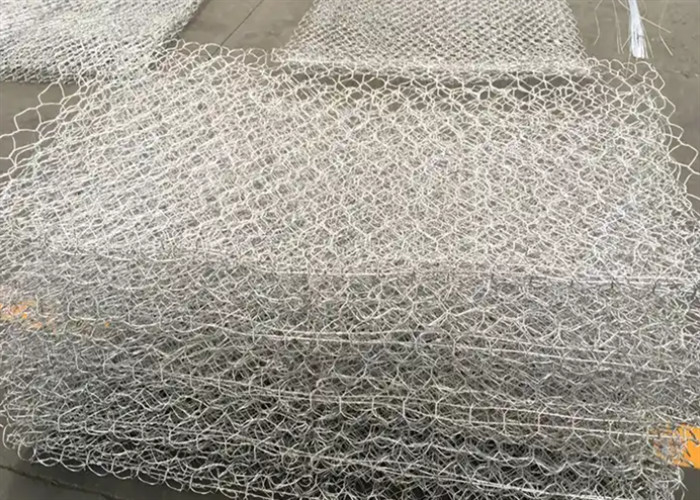

Large Image :  Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Hole Shape: Hexagonal/Square Zinc Coated: 220-270g
Packing: Packed In Bundles Or Pallets Material: Low-Carbon Iron Wire
Product Name: Gabion Basket Mesh Hole: 60x80mm/80x100mm/10x12mm
Other Name: Gabion Wire Mesh/Stone Cage Sample: For Free
High Light:

Twisted Gabion Wire Mesh

,

100x120mm Hole Gabion Wire Mesh

,

Hole 100x120mm Gabion Basket Mesh

Product Description:

Gabion basket, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., is a new material structure which is widely used in recent years in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects.
It is made of high strength low carbon galvanized steel wire or 5% ~ 10% thin alloy coated steel wire (or homogeneous coated polymer steel wire), which is twisted and twisted by machine into hexagonal mesh.The length of the double hinge part should not be less than 5 cm in order not to destroy the protective coating of steel wire.Please refer to the industry standard YB/T4221-2010 for details.
Gabion mesh can be assembled into boxes according to engineering design requirements, and loaded with blocks and stones and other filling materials, connected into one.It is used as new technology for embankment protection, roadbed protection and other engineering.


Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of DiaphragmApproximate dimensions and VolumesToleranceColorWire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100
80x120
100x120
120x150
12.001.000.300.60Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
12.001.000.501.00
12.001.001.002.00
23.001.000.300.90
23.001.000.501.50
23.001.001.003.00
34.001.000.301.20
34.001.000.502.00
34.001.001.004.00
12.000.500.500.50
23.000.500.500.75
Note: other size can be produced according to customer's request

Features:

River stone cage, also known as gabion mesh, green grid, gabion retaining wall, Reynold pad, reinforced gabion, gabion cage, etc.,is a kind of new material structure widely used in traffic, water conservancy, municipal, gardents, soil and water conservation and other engineering projects in recent years.
The mesh is made from corrosion-resistant, high-strength low-carbon galvanized steel wire or 5% to 10% alloy-coated steel wire (or homogenous coated polymer steel wire), twisted by machine to form hexagonal mesh structure, the length of the double hinge part should not be less than 5 cm, in order not to destroy the protective coating of the steel wire.For detailed specifications, please refer to the industry standard YB/T4221-2010.
Gabion mesh can be assembled into boxes according to engineering design requirements, and loaded with blocks and stones and other filling materials connected into a single unit, used as embankment, roadbed protection and other engineering new technology.



Technical Parameters:

Low carbon steel wire is commonly used in a variety of scenarios including coastal defense engineering, river protection, and garden landscape due to its strength and low cost.
This wire is available in the following specifications: 2x1x1, 3x1x1, 4x1x1, and customizable measurements (M). The weaving technology applied is Twist Knitting, and the mesh range is between a quarter to eight. The wire diameters range from 1.5-5.0mm, and the apertures range from 60*80 100*120 120*150, and 160*180.
This wire is sourced from Anping, Hebei and is very durable. Its surface treatment process includes plastic-coated PVC and galanized, making it a great choice for a wide range of projects.



Applications:

Stone Cage Net is used for guiding river water. By installing it on the inside of the embankment or the edge of the channel can protect them from the powerful erosion of the rapid water. The river can also be guided to safety without the possibility of floods. In the event of floods, the rivers tend to follow the natural flowing channel. However, because of the huge amount of water and its fast-flowing, it will have a strong inertia, which would violently impact the original channel and dam. Stone Cage Net can restrain the flood and keep it within the channel. In addition, Stone Cage Net is also used in the bend of the river. It creates a barrier in front of the fast-moving water, thus making it turn according to the natural flow of the river. In conclusion, Stone Cage Net plays an important role in preserving our rivers and preventing floods. It is an invaluable tool for saving lives and properties.

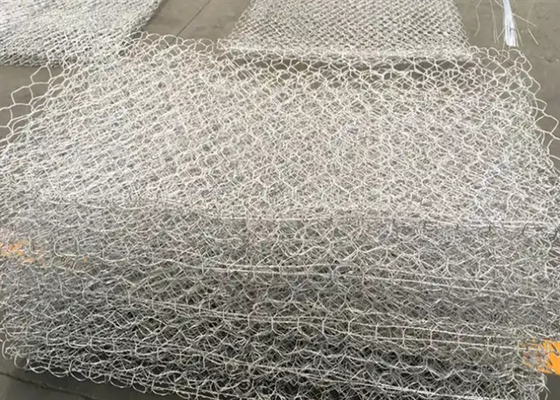

Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm 0

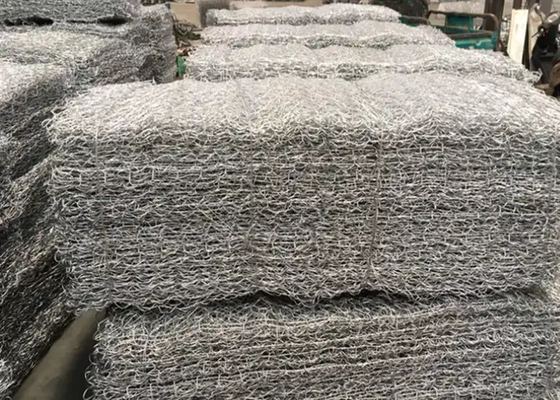

Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm 1

Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm 2
Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm 3
Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm 4
Twisted Gabion Wire Mesh Hole 60x80mm / 80x100mm / 100x120mm 5
