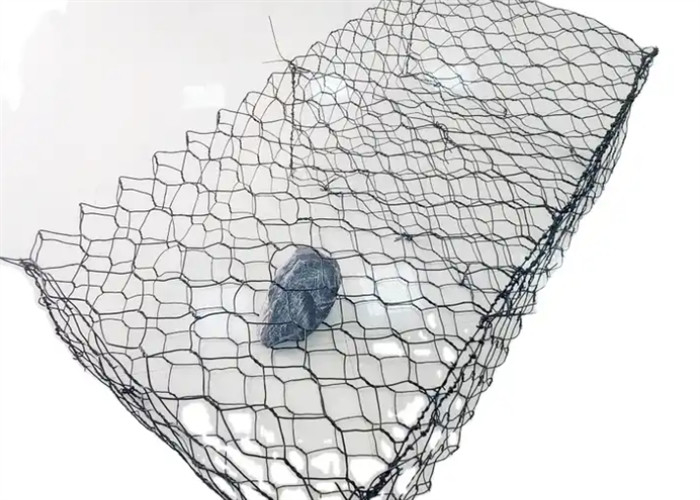

High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel

High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel
High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel

Large Image :  High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable

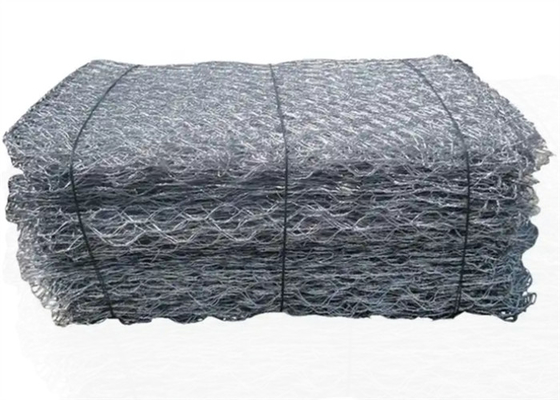

Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Hole Shape: Hexagonal/Square Sample: Free Sample
Port Of Loading: Xingang Port Other Name: Gabion Wire Mesh/Stone Cage
Packing: Packed In Bundles Or Pallets Mesh Hole: 60x80mm/80x100mm/10x12mm
Usage: Flood Control Retaining Wall Material: Low Carbon Steel
High Light:

100x120mm Gabion Wire Mesh

,

High Strength Gabion Wire Mesh

,

Low Carbon Steel Gabion Basket Mesh

Product Description:

Gabion basket is also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc. It has been widely used in engineering projects such as traffic, water conservancy, municipal, gardens, soil and water conservation and other purposes in recent years. The structure is composed of high strength, low carbon, galvanized steel wire or 5%-10% thin alloy coated steel wire (or homogeneous coated polymer steel wire). The wire is twisted by machine into hexagonal mesh, and double hinge part should be no less than 5 cm, so as not to cause damage to steel wire protective paint. Detailed information can be found in the industry standard YB/T4221-2010.

Gabion mesh can be assembled into boxes as required by the design; meanwhile, stones and other filling materials are connected together into blocks and loaded into the boxes, forming a new technology used for embankment and roadbed protection.



Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of Diaphragm Approximate dimensions and Volumes Tolerance Color Wire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100

80x120

100x120

120x150
1 2.00 1.00 0.30 0.60 Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
1 2.00 1.00 0.50 1.00
1 2.00 1.00 1.00 2.00
2 3.00 1.00 0.30 0.90
2 3.00 1.00 0.50 1.50
2 3.00 1.00 1.00 3.00
3 4.00 1.00 0.30 1.20
3 4.00 1.00 0.50 2.00
3 4.00 1.00 1.00 4.00
1 2.00 0.50 0.50 0.50
2 3.00 0.50 0.50 0.75
Note: other size can be produced according to customer's request

Features:

River stone cage is also known as Gabion mesh, Green grid, Gabion retaining wall, Reynolds Pad, Reinforced Gabion, Gabion cage, etc. This mesh is increasingly being used for a variety of engineering projects such as traffic control, water conservancy, municipal, gardens, and soil and water conservation.

The mesh is made from high-strength low-carbon galvanized steel wire with a 5% ~ 10% thin alloy coating or a homogeneous coated polymer steel wire, all of which is twisted together by machine. Furthermore, the length of the double-hinged part should not be less than 5cm in order to protect the coating of steel wire. Further details can be found on the industry standard YB/T4221-2010.

The mesh can be assembled into cubes as per engineering design requirements, and then be loaded with stones and other filling materials to form an embankment and roadbed protection as a new technology.



Technical Parameters:

This product is made of low carbon steel wire, with a selection of specifications from 2X1X1, 3X1X1, and 4X1X1. Customized sizes are available (M). The knitting technology used is the Twist type, creating meshes from a quarter to eight, where wire diameter ranges from 1.5 and 5.0 mm. The corresponding aperture sizes are 60*80 *100 *120 120*150 160*180. It originated in Anping, Hebei, and is used for coastal defence engineering, river protection, garden landscape, among other uses.

The surface treatment process utilized are plastic-coated PVC, galvanized, and dip plastic.



Applications:

Stone cage net is a constructive solution that is mainly used to guide the river flow. The rivers usually take a natural, curvy path. In a flood, however, the water quantity is high and the current can be fast-flowing. As a result, the water is under inertia which causes it to flow straight and fiercely impact the original channel and dams, potentially causing great disasters.

To reduce the erosion of the embankment due to the rapid water flow, stone cage cage or stone cage mat is used. The turbulent river has an effect on the cage or mat, thus protecting the embankments or channels. This solution also guides the rivers to safety even in areas with bend in the river by causing them to turn along the natural flow.

Furthermore, stone cage nets are also used in spillway dams and diversion dams to lead or control the flood.



High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel 0

High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel 1

High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel 2

High Strength 100x120mm Gabion Wire Mesh Low Carbon Steel 3

Support and Services:

Gabion Wire Mesh Technical Support and Service

We provide professional technical support and service for Gabion Wire Mesh products. Our team of experienced engineers and technicians are available to answer any questions you may have about the installation, use and maintenance of the product.

We provide a full range of services, from on-site technical support to remote troubleshooting assistance. We also provide detailed product manuals and tutorials to help you get the most out of your Gabion Wire Mesh.

Our team of experts can also provide you with tailored solutions to meet your specific requirements. We are committed to providing our customers with the best possible service and support.



FAQ:

Q: What is the brand name of Gabion Wire Mesh?
A: The brand name is Yuanhai.
Q: What is the model number of Gabion Wire Mesh?
A: The model number is YH-08.
Q: Where is the place of origin of Gabion Wire Mesh?
A: It is from Hebei Province,China.
Q: What is the certification of Gabion Wire Mesh?
A: It has ISO9001:2015 certification.
Q: What is the minimum order quantity of Gabion Wire Mesh?
A: The minimum order quantity is 100 PCS.
