Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

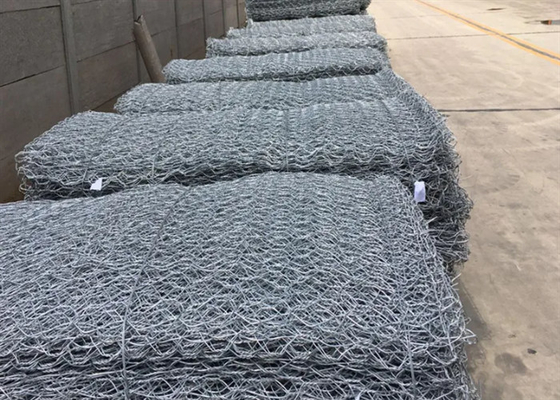

Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated

Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated
Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated

Large Image :  Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Hole Shape: Hexagonal/Square Material: Low-Carbon Iron Wire
Packing: Packed In Bundles Or Pallets Surface Treatment: Hot Dipped Galvanized/PVC Coated
Port Of Loading: Xingang Port Product Name: Gabion Basket
Standard: ASTM A974 Certification: ISO9001:2015
High Light:

Hexagonal Hole Gabion Wall Wire Mesh

,

Gabion Wall Wire Mesh PVC Coated

,

Hot Dipped Galvanized Gabion Basket Mesh

Product Description:

Gabion basket is a kind of widely used material structure in engineering projects. It is also called gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, and gabion cage. It is usually composed of corrosion-resistant high-strength low-carbon galvanized steel wire or 5% ~ 10% thin alloy coated steel wire (or homogeneous coated polymer steel wire). The double hinge part of the mesh should not be less than 5cm. According to engineer design requirements, the mesh can be assembled into boxes and loaded with stones and other filling materials to form an integrated structure, which is used for embankment and roadbed protection. The related industry standard is YB/T4221-2010.



Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of Diaphragm Approximate dimensions and Volumes Tolerance Color Wire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100

80x120

100x120

120x150
1 2.00 1.00 0.30 0.60 Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
1 2.00 1.00 0.50 1.00
1 2.00 1.00 1.00 2.00
2 3.00 1.00 0.30 0.90
2 3.00 1.00 0.50 1.50
2 3.00 1.00 1.00 3.00
3 4.00 1.00 0.30 1.20
3 4.00 1.00 0.50 2.00
3 4.00 1.00 1.00 4.00
1 2.00 0.50 0.50 0.50
2 3.00 0.50 0.50 0.75
Note: other size can be produced according to customer's request

Features:

River stone cage, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., is a prominant new material structure that has been widely used in recent years, in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects. This particular type of mesh is corrosion-resistant and is manufactured from high strength and low carbon galvanized steel wire or 5% ~ 10% thin alloy coated steel wire (or homogenous coated polymer steel wire), which are twisted and woven together. Moreover,in order not to destroy the protective coating of the steel wire, the length of double hinge part of the mesh should not be less than 5cm. For additional information, please refer to the industry standard YB/T4221-2010. The ecological grid can be assembled into boxes as per engineering design requirements,gand loaded with stony blocks or other suitable filling materials, forming an entirly solid structure that can be used as embankment, roadbed protection and other engineering related projects.


Technical Parameters:

This material uses low carbon steel wire. It is available in 2X1X1, 3X1X1, and 4X1X1 sizes and is customizable (M). The weaving technology used is twist knitting and the mesh ranges from one quarter to eight. The wire diameter is 1.5mm to 5.0mm and the aperture can be 60*80, *100, *120, 120*150, or 160*180. It is sourced from Anping, Hebei, and common uses for it includes coastal defense engineering, river protection, and garden landscape. The surface treatment processes that are available are plastic-coated PVC, galvanized, hot-dip galvanized, and PVC+PE electrostatic spraying.

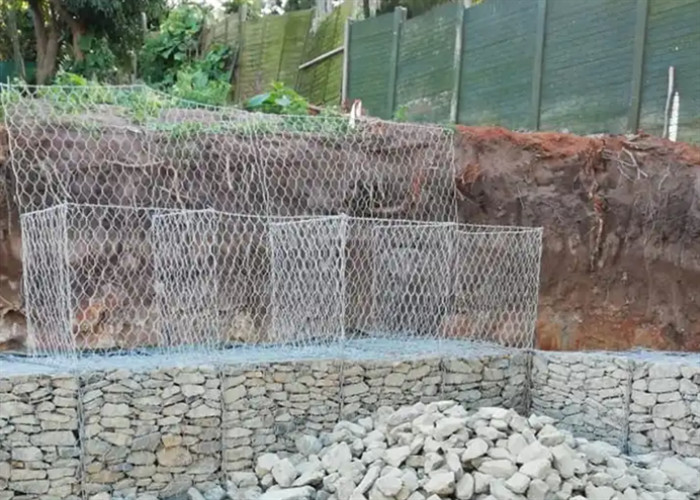

Applications:

Stone cage net is mainly used to guide the river water, so that the rivers tend to follow the current channel instead of a new one. When floods come, a huge amount of water with tremendous flow velocity may occur. In this catastrophic situation, the force of inertia tends to lead the water to a direct route, which would disturb the original water course and dam and cause severe damage.

In order to mitigate the rapid erosion of the embankment due to flood water, stone cage cage or stone cage mat is used to cover both the inside and the edges of the river. This will buffer the strong impact of the turbulent water and protect the existing dam or channel. For a river that flows in a curvature, the use of stone cages or cage mats can guide the water with a turn, making sure that the flow of the water keeps within the designated parameters.

Furthermore, stone cage net is often applied to the spillway dam and diversion dam in order to regulate the flow or divert the water before it overflows. In this way, the harm caused by the flood can be minimized.



Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated 0



Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated 1

Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated 2

Hexagonal Hole Gabion Wall Wire Mesh Hot Dipped Galvanized / PVC Coated 3

Support and Services:

Gabion Wire Mesh Technical Support and Service

We offer a wide range of technical support and services for Gabion Wire Mesh products, to ensure you get the best out of your product.

  • 24/7 technical support and assistance
  • Diagnosis and troubleshooting of product issues
  • Advice on product installation and operation
  • Expert guidance on product selection
  • Updates on product recalls and safety notices
  • Helpful resources and information to help you use our products
  • Regular maintenance and repair services

We are committed to providing the highest level of customer service and satisfaction. For any further information about our Gabion Wire Mesh product range, please do not hesitate to contact us.



FAQ:

Q1: What is the Brand Name?

A1: The Brand Name is Yuanhai.

Q2: What is the Model Number?

A2: The Model Number is YH-08.

Q3: Where is the Place of Origin?

A3: The Place of Origin is Hebei Province, China.

Q4: What is the Certification?

A4: The Certification is ISO9001:2015.

Q5: What is the Minimum Order Quantity?

A5: The Minimum Order Quantity is 100 PCS.
