80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall

80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall
80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall 80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall

Large Image :  80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Mesh Hole: 60x80mm/80x100mm/10x12mm Other Name: Gabion Wire Mesh/Stone Cage
Material: Low-Carbon Iron Wire Surface Treatment: Hot Dipped Galvanized/PVC Coated
Product Name: Gabion Basket Hole Shape: Hexagonal/Square
Standard: ASTM A974 Sample: Free Sample
High Light:

80x100mm Gabion Wire Mesh

,

Flood Control Gabion Wire Mesh

,

Retaining Wall Gabion Basket Mesh

Product Description:

Gabion basket is also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc. It has been widely used in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects as a new material structure in recent years.

Ecological grid is made of high strength low carbon galvanized wire and 5%~10% thin alloy coated steel wire ( or homogeneous coated polymer steel wire) twisted by the machine into hexagonal mesh. The length of two hinges should not be less than 5cm, and the protective coating of steel wire should not be destroyed. See YB/T4221-2010 Industry Standard for more information.

Gabion mesh can be linked up into boxes according to engineering design requirements and filled with blocks, stones and other filling materials into one, used as embankment, roadbed protection and other engineering new technology.



Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of Diaphragm Approximate dimensions and Volumes Tolerance Color Wire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100

80x120

100x120

120x150
1 2.00 1.00 0.30 0.60 Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
1 2.00 1.00 0.50 1.00
1 2.00 1.00 1.00 2.00
2 3.00 1.00 0.30 0.90
2 3.00 1.00 0.50 1.50
2 3.00 1.00 1.00 3.00
3 4.00 1.00 0.30 1.20
3 4.00 1.00 0.50 2.00
3 4.00 1.00 1.00 4.00
1 2.00 0.50 0.50 0.50
2 3.00 0.50 0.50 0.75
Note: other size can be produced according to customer's request


Features:

River stone cage, also called Gabion Mesh, Green Grid, Gabion Retaining Wall, Reynolds Pad, Reinforced Gabion, Gabion Cage, etc. has been widely used in recent years for traffic, water conservancy, municipal, gardens, soil and water conservation in a new material structure. Ecological Green Grid is made of corrosion-resistant, high strength, low carbon galvanized steel wire or 5%-10% thin alloy coated steel wire (or homogeneous coated polymer steel wire) that is twisted together by machine. The double hinge part length should not be less than 5cm, in order to keep the protective coating of the steel wire intact.See YBT4221-2010 for details.

Gabion mesh can be assembled into boxes to required specifications and filled with blocks, stones and other filling materials that are connected together. It is used as a new technology for engineering, such as embankment and roadbed protection.



Technical Parameters:

This product is made of low carbon steel wire, with weaving technology of twist knitting. Four principal types of meshes are available: a quarter to eight, and wire diameters range from 1.5 to 5 mm, with the apertures ranging from 60*80, 100*120, 120*150 to 160*180.

It is rooted from Anping, Hebei, mainly applied in coastal defense engineering, river protection, garden landscape, etc. This product can further be surface treated with plastic-coated PVC.



Applications:

Stone cage net is mainly used to guide river water along the river flow to safety. During flood, the water quantity is massive and fast-flowing, which will cause violent impact to the channel and dam and result in river diversion, leading to great disaster.

Stone cage net is employed to reduce the rapid erosion of embankment caused by water, by placing it inside or at the edge of the channel. When the turbulent river hit this stone cage net, the embankment or channel is protected. In the bends of the river, this tool will guide the river to follow the original flow.

Apart from guiding the floodwater, stone cage net is also applied to spillway dam and diversion dam, to divert and control water.

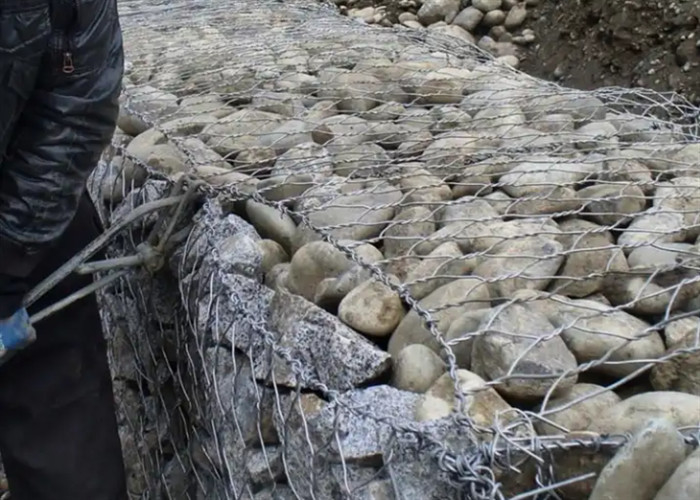

80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall 0

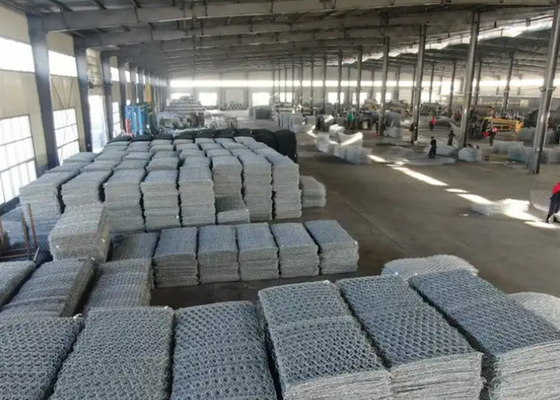

80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall 1

80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall 2

80x100mm Pvc Coated Gabion Wire Mesh In Flood Control Retaining Wall 3

Support and Services:

Gabion Wire Mesh Technical Support and Service

We offer comprehensive technical support and service for our Gabion Wire Mesh products. Our team of experts is available to answer any questions you may have about our products. We can provide advice on installation, maintenance, and troubleshooting. We also offer on-site inspection and repair services to ensure your Gabion Wire Mesh system is functioning properly. We strive to provide the highest quality customer service to ensure your satisfaction.



FAQ:

Q: What is Gabion Wire Mesh?
A: Gabion Wire Mesh is a type of woven wire mesh used for strength and durability in a variety of applications.
Q: What is the Brand Name?
A: The Brand Name is Yuanhai.
Q: What is the Model Number?
A: The Model Number is YH-08.
Q: Where is the Place of Origin?
A: The Place of Origin is Hebei Province, China.
Q: What is the Certification?
A: The Certification is ISO9001:2015.
Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 100 pcs.
