Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g

Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g

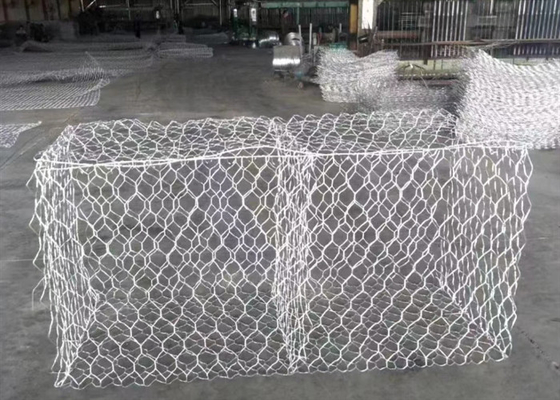

Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g

Large Image :  Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g

Product Details:
Place of Origin: Hebei Province,China
Brand Name: Yuanhai
Certification: ISO9001:2015
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable

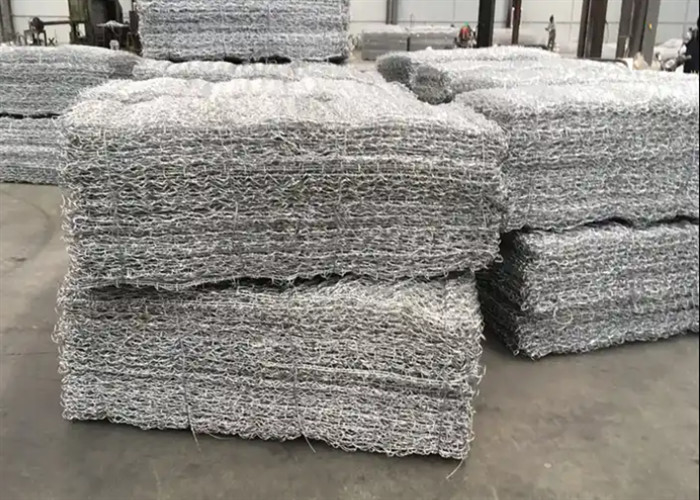

Packaging Details: By pallet
Delivery Time: 10 DAYS
Payment Terms: T/T,L/C
Supply Ability: 10000 ㎡ 7 days
Detailed Product Description
Hole Shape: Hexagonal/Square Material: Low-Carbon Iron Wire
Surface Treatment: Hot Dipped Galvanized/PVC Coated Sample: Free Sample
Mesh Hole: 60x80mm/80x100mm/10x12mm Standard: ASTM A974
Zinc Coated: 220-270g Product Name: Gabion Basket
High Light:

Square Hole Pvc Coated Gabion Box

,

Zinc Coated Pvc Coated Gabion Box

,

270g Zinc Coated Gabion Basket Mesh

Product Description:

Gabion basket, sometimes referred to as gabion mesh, is a type of green grid that has become increasingly used in recent years for traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering applications. Structurally, it is composed of highly corrosion-resistant, low-carbon galvanized steel wire or 5% to 10% thin alloy-coated steel wire (or homogeneous coated polymer steel wire), which are twisted and shaped into hexagonal mesh mesh. The length of the double hinge part should not be less than 5cm in order for the protective coating to remain intact.

To know more about this product, refer to industry standard YB/T4221-2010. Assembled in boxes according to engineering design requirements, gabion mesh can be filled with blocks and stones and other filling materials to form a unified structure, which is used for embankment, roadbed protection, and other new engineering technologies.



Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m,
Mesh Size
(mm)
Number of Diaphragm Approximate dimensions and Volumes Tolerance Color Wire diameter
(mm)
Length
(m)
Width
(m)
Height
(m)
Capacity
(m³)
80x100

80x120

100x120

120x150
1 2.00 1.00 0.30 0.60 Length±5%
Width±5%
Height±5%
Blue
RedGreen
Black
2.0-4.0
1 2.00 1.00 0.50 1.00
1 2.00 1.00 1.00 2.00
2 3.00 1.00 0.30 0.90
2 3.00 1.00 0.50 1.50
2 3.00 1.00 1.00 3.00
3 4.00 1.00 0.30 1.20
3 4.00 1.00 0.50 2.00
3 4.00 1.00 1.00 4.00
1 2.00 0.50 0.50 0.50
2 3.00 0.50 0.50 0.75
Note: other size can be produced according to customer's request


Features:

River stone cage, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc.,is becoming increasingly popular in many engineering projects, such as traffic, water conservancy, municipal, gardens, soil and water conservation among others.

The mesh used for an environmental green grid is composed of corrosion-resistant, low-carbon galvanized steel wire or 5% to 10% thin alloy coated steel wire (or homogeneous coated polymer steel wire).The steel wires were woven together by machines into hexagonal meshes, and the length of the double hinge part should not be less than 5 cm in order to avoid destroying the protective coating.For detailed information, please refer to industry standard YB/T4221-2010.

Gabion mesh can be assembled into boxes according to the design requirements of the engineering, and the boxes filled with blocks and stones and other filling materials will be connected into one, thereby forming embankment, and roadbed protection and other engineering new technologies.



Technical Parameters:

low carbon steel wire is widely used in many applications, such as coastal defense engineering, river protection, garden landscape, etc. It comes in various specifications, namely 2X1X1, 3X1X1 and 4X1X1 and can even be customized (M). Weaving technology used is Twist Knitting and mesh is from a quarter to eight. Wire diameter is from 1.5mm to 5.0mm and the corresponding aperture is from 60*80 to 120*150 and 160*180. The product is sourced from renowned Anping, Hebei and the surface treatment process applied is plastic-coated PVC galvanized.



Applications:

The Stone Cage Net is mainly utilized to channelize the river water. Oftentimes, waterways have a tendency to follow their natural course, which may contain curves and bends. During floods, when the water quantity is extremely high and the velocity of the flow is fast, the inertia of the water might lead to a straighter course and consequently cause considerable damage to the original course and dam. In order to avoid the quick water erosion of the embankment, the stone cages or stone cage mats are placed inside or at the edges of the embankment. In this manner, the turbulence of the river is lessened and it is less prone to cause significant destruction. Moreover, Stone Cage Net is also used in Spillway and Diversion dam for guiding and restraining the flood.

In the case of river bends, the Stone Cages or Stone Cage Mats help to direct the water along its natural course. Consequently, this reduces any chances of destruction and helps guide the river into a safe direction.



Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g 0

Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g 1

Square Hole Pvc Coated Gabion Box Zinc Coated 220-270g 2

Support and Services:

Gabion Wire Mesh Technical Support and Service

Gabion Wire Mesh provides professional technical support and service to ensure optimal product performance and customer satisfaction. Our technical support team is available to answer any questions related to product selection, installation, and troubleshooting.

Product Selection

We offer a wide range of products to meet your needs. Our team is available to help you select the best product for your application, based on factors such as size, weight, durability, and price.

Installation

Our team is available to provide assistance during the installation process. We can provide technical advice and support to ensure that the product is properly installed and performs as required.

Troubleshooting

In the event of any issues or problems, our team is available to provide troubleshooting services. We can quickly identify the source of the issue and provide advice on the best course of action to resolve it.



FAQ:

Q: What is the brand name of the Gabion Wire Mesh?
A: The brand name is Yuanhai.
Q: What is the model number of the Gabion Wire Mesh?
A: The model number is YH-08.
Q: Where is the Gabion Wire Mesh produced?
A: The Gabion Wire Mesh is produced in Hebei Province,China.
Q: What is the certification of the Gabion Wire Mesh?
A: The Gabion Wire Mesh has ISO9001:2015 certification.
Q: What is the minimum order quantity of the Gabion Wire Mesh?
A: The minimum order quantity is 100 PCS.
