Product Description:
Gabions, also known as Gabion Mesh, Green Grid, Gabion Retaining Wall, Reynolds Pad, Reinforced Gabion, Gabion Cage, and the like, are a newly developed material used increasingly in traffic, water conservancy, municipal, garden, soil and water conservation, and other engineering projects.

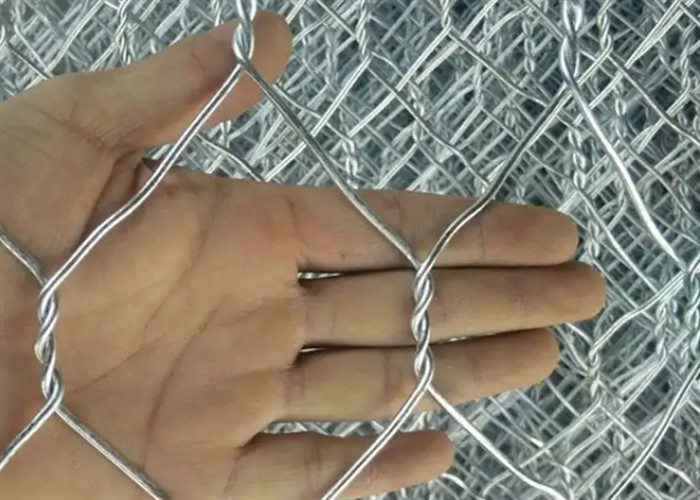

Gabions are made from corrosion-resistant, high-strength, low-carbon galvanized steel wire, or 5-10% thin alloy coated steel wire (or homogeneous coated polymer steel wire). These are twisted and meshed into hexagonal shapes, with double hinge lengths no less than 5 cm, in order to maintain the protective coating of the steel wire.

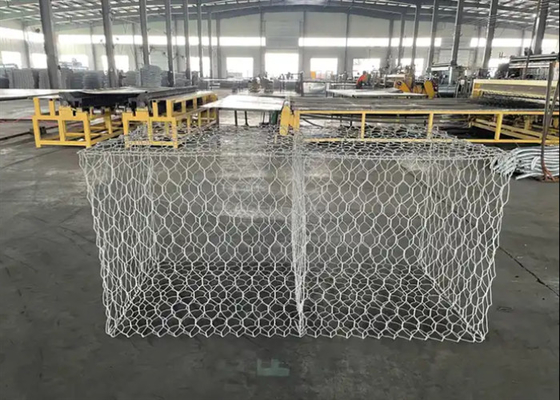

Gabion Mesh can be arranged into boxes as per engineering design requirements, and attached with blocks and stones, forming one unit used in embankment and roadways as a new engineering technology.
| gabion specifications |
Mesh hole modle |
| |
8x10cm |
6x8cm |
| Length(m) |
Width(m) |
Height(m) |
Galvanized or PVC coated |
Galvanized or PVC coated |
| |
Mesh diameter |
Zinc |
Mesh diameter |
Zinc |
| 2 |
1 |
1 |
2.7mm |
>245g/m² |
2.0mm |
>215g/m² |
| 3 |
1 |
1 |
Side wire diameter |
Zinc |
Side wire diameter |
Zinc |
| 4 |
1 |
1 |
3.4mm |
>265g/² |
2.7mm |
>245g/m² |
| 6 |
1 |
1 |
Binding wire diameter of 2.7m |
Binding wire diameter of 2.0m |
| Length(m) |
Width(m) |
Height(m) |
Volume(m³) |
| 2 |
1 |
0.5 |
1 |
| 4 |
1 |
0.5 |
2 |
| 6 |
2 |
0.5 |
6 |
| 1.5 |
1 |
1 |
1.5 |
| 1 |
1 |
1 |
1 |
| 2 |
1 |
1 |
2 |
| 3 |
1 |
1 |
3 |
| 4 |
1 |
1 |
4 |
| 2 |
0.5 |
0.5 |
0.5 |
| 4 |
0.5 |
0.5 |
1 |
Features:
River stone cage, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, and gabion cage is becoming an increasingly popular material structure in the recent years. This mesh is used in traffic projects, water conservancy, municipal, gardens, and soil and water conservation engineering.
Ecological grid consists of corrosion resistance high-strength low carbon galvanized steel wires or 5%~ 10% thin alloy coated steel wires or homogenous coated polymer steel wires which are machine-twisted to form hexagonal mesh. The length of double hinged parts should not be less than 5 cm in order to prevent steel wires from getting damaged. Further information about this can be found in industry standard YB/T4221-2010.
Gabion mesh can be assembled and packed into boxes according to specific engineering design requirements. After filling with blocks, stones, and other materials, the mesh can be connected into one and used as embankment and road bed protection featuring a new technological innovation.
Technical Parameters:
This steel wire is made of low carbon steel, and it can be customized according to your requirements. The weaving technology used to craft this piece is twist knitting. The wire diameter ranges from 1.5 to 5.0 mm. The mesh size of this wire varies from a quarter to eight, and the aperture ranges from 60*80 *100 *120 120*150 160*180. This product comes from Anping, Hebei and it has many functions, such as coastal defense engineering, river protection and garden landscape. It also goes through a surface treatment process, that is to coat it with PVC plastic.
Applications:
Stone cage net is mainly used to guide the river water, since rivers tend to follow the path of least resistance, which is their natural flow channel. In the event of a flood – with its massive, rapid-moving water – the water will carry it along this inherent channel, and its force may even divert it from its original path. This can cause tremendous damage to the embankment or channel.
In order to reduce this erosion, stone cage cages or stone cage mats are placed inside the embankment or near the edges of the channel. When the turbulent river strikes these barriers, it will be deflected away from the embankment or channel, protecting it from harm.
The river is also turned towards its natural path around river bends. With the stone cage cages or mats in place, the river will adjust its course to follow the natural flow of the river. This in turn will help guide river and its water ely and securely.
Stone cage nets are also applied to spillway dams and diversion dams, in order to guide and control the flood flow.
Support and Services:
Technical Support and Services for Gabion Wire Mesh
We provide comprehensive technical support and services for Gabion Wire Mesh. Our services include:
- Answering questions about the installation and use of Gabion Wire Mesh.
- Providing technical support for troubleshooting any issues related to Gabion Wire Mesh.
- Providing advice on proper maintenance and repair of Gabion Wire Mesh.
- Providing consultation and guidance on the selection of the most suitable Gabion Wire Mesh for a particular application.
- Providing information and advice on the best way to use Gabion Wire Mesh in a specific environment.
We understand the importance of reliable and effective Gabion Wire Mesh in a variety of applications, and our team of experts is here to provide you with the information and support you need.
FAQ:
Q&A about Gabion Wire Mesh
- Q: What is the brand name of your Gabion Wire Mesh?
A: The brand name of our Gabion Wire Mesh is Yuanhai.
- Q: What is the model number of your Gabion Wire Mesh?
A: The model number of our Gabion Wire Mesh is YH-08.
- Q: Where is your Gabion Wire Mesh manufactured?
A: Our Gabion Wire Mesh is manufactured in Hebei Province, China.
- Q: What certifications does your Gabion Wire Mesh have?
A: Our Gabion Wire Mesh has ISO9001:2015 certification.
- Q: How many Gabion Wire Mesh should I order at least?
A: You should order at least 100 PCS of Gabion Wire Mesh.
