Product Description:

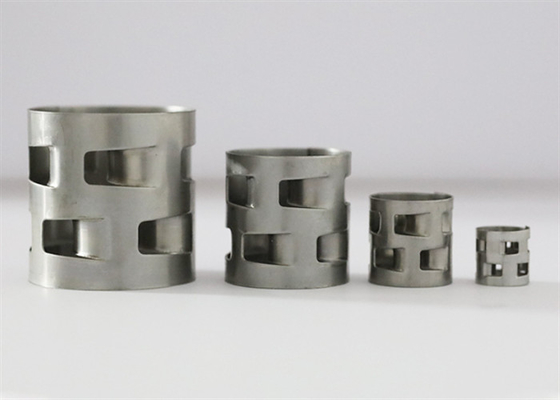

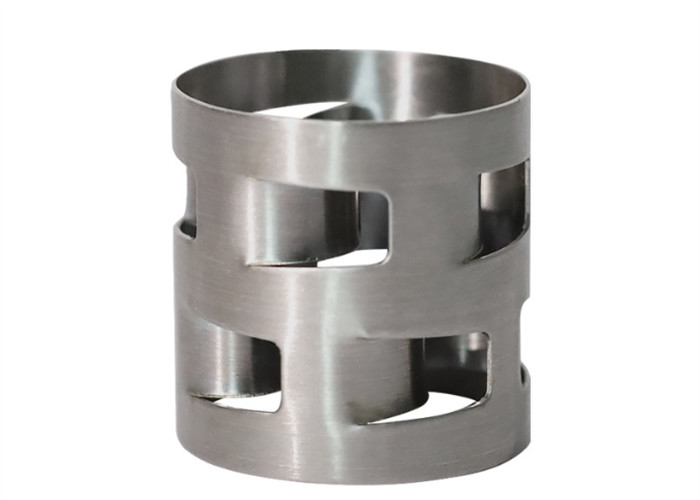

Metal Tower Packing Pall ring is an innovative form of random packing that has been improved upon the Rasiichig ring. Pall ring possesses open windows on the sidewall of the ring, which greatly improves the liquid distribution of the packing layer, making it more productive, less resistant, and highly efficient compared to the earlier version.
Due to its improved features, Hualai Pall ring is widely used in the industry and has become one of the major annular random packing that has been adopted. It is particularly suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable, or cokable systems.
As a result of its suitability for these systems, pall ring is extensively used in packing towers in petrochemical industry, chemical fertilizer industry, and environmental protection, among other areas.
Features:
Our product boasts of high resistance to fouling which makes it an excellent choice for industries where fouling is a common concern. Additionally, you can choose from a variety of materials to suit your needs.
It can perform well even in high temperature applications and is mechanically robust. With lesser probability of breakage, you can rely on its durability for a long period of time.
In terms of liquid and gas distribution, our product offers good performance. It also has high mass transfer efficiency that can improve the efficiency of your process.
- High resistance to fouling
- Multiple materials available
- High temperature applications
- Mechanically robust
- Lesser probability of breakage
- Good liquid/gas distribution
- High mass transfer efficiency
Technical Parameters:
| Application |
Absorption, Scrubbing, And Stripping Services |
| Product Name |
SS304 Metal Packing |
| Sample |
For Free |
| Brand Name |
Yuanhai |
| Application field |
Industrial |
| Pressure Resistance |
High |
| Shape |
Round, Ring |
| Place of Origin |
Hebei Province,China |
| Price |
Negotiable |
| Package |
By Wooden Box |
| Product Description |
Tower Packing For Absorption Columns, SS Pall Ring 25*25*0.3mm |
| Size (inch /mm) |
Bulk Density
(SS304 kg/m3)
|
Number
(per m3)
|
Surface Area
(m2/m3)
|
Free Volume
(%)
|
Dry packing factor m-1 |
| 1” |
25*25*0.4 |
288 |
53500 |
212 |
96.2 |
229.8 |
| 1” |
25*25*0.5 |
367 |
53500 |
216 |
95 |
237.2 |
| 1” |
25*25*0.6 |
439 |
53500 |
219 |
94.2 |
244.1 |
| 1.5” |
38*38*0.4 |
193 |
15180 |
143 |
97.2 |
148.4 |
| 1.5” |
38*38*0.5 |
246 |
15180 |
145 |
96.7 |
151.7 |
| 1.5” |
38*38*0.6 |
328 |
15000 |
146 |
95.9 |
154.6 |
| 2” |
50*50*0.5 |
185 |
6500 |
106 |
97.5 |
128.5 |
| 2” |
50*50*0.7 |
315 |
6500 |
108 |
96.4 |
130.5 |
| 2” |
50*50*0.9 |
380 |
6500 |
132.5 |
95.4 |
134.0 |
| 3” |
76*76*0.8 |
265 |
1920 |
69 |
97.4 |
79.6 |
Applications:
The following is a list of applications for which the equipment can be used:
- For absorption, scrubbing and stripping services, including CO2 and H2S selective absorption, as well as air pollution control scrubbers.
- For the purpose of heat transfer.
- For the process of liquid-liquid extraction.
- For fractionators used to separate light ends.
Our equipment is highly versatile and can be used in a variety of settings for numerous applications.
Packing and Shipping:
Metal Tower Packing is carefully packaged to ensure its safety during transportation. Each unit is wrapped in protective material, placed in a sturdy cardboard box, and sealed with high-quality tape to prevent any damage or tampering.
Our shipping carriers are reliable and experienced in handling delicate products. We offer both domestic and international shipping options to ensure that our customers receive their orders in a timely and efficient manner.
FAQ:
Here are some frequently asked questions about the Yuanhai Metal Tower Packing (Model: YH-009):
Q: What is the brand name of the product?
A: The brand name of the product is Yuanhai.
Q: What is the model number of the product?
A: The model number of the product is YH-009.
Q: Where is the product made?
A: The product is made in Hebei Province, China.
Q: What is the certification of the product?
A: The product is certified with ISO9001:2015.
Q: What is the minimum order quantity for the product?
A: The minimum order quantity for the product is 2 m³.
Q: How much does the product cost?
A: The price of the product is negotiable.
Q: What are the packaging details of the product?
A: The product is packaged by wooden box.
Q: What is the delivery time for the product?
A: The delivery time for the product is 7 days.
Q: What are the payment terms for the product?
A: The payment terms for the product are T/T.
Q: What is the supply ability of the product?
A: The supply ability of the product is 800 cubic meter/cubic meters per month.
