Product Description:

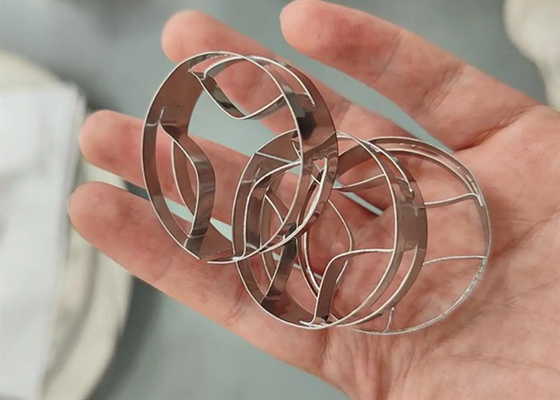

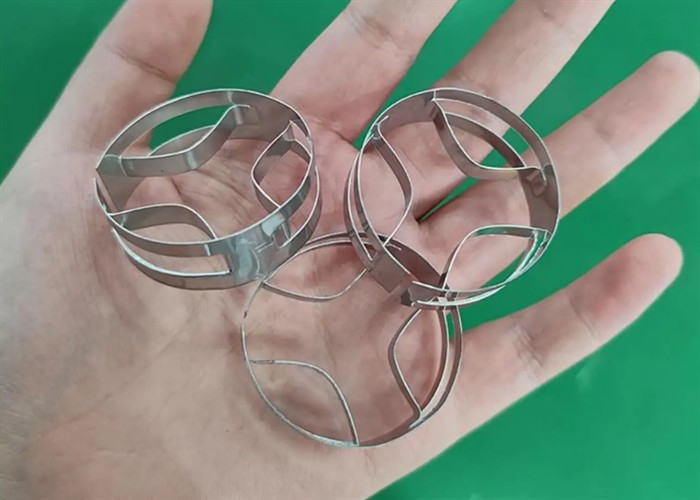

Metal Tower Packing Pall Ring is a more efficient and productive version of traditional Rasiichig rings. Pall Ring has several advantages over Rasiichig ring including improved liquid distribution, and open windows on ring sidewall for greater operating flexibility.
These innovative features make Hualai Pall Ring highly applicable to a wide range of industrial processes. It is ideal for use in rectification towers under vacuum for thermosensitive, decomposable, polymerizable or cokable systems. In addition, Hualai Pall Ring is widely used in packing towers in the petrochemical industry, chemical fertilizer industry and environmental protection.
Hualai Pall Ring is widely recognized as one of the major annular random packing options, and has been adopted extensively. The low resistance and higher efficiency of the Hualai Pall Ring make it a popular choice in various industries.
Features:
High Performance Chemical Components
Our chemical components are designed to provide high resistance to fouling, making them ideal for long-term use without the need for frequent cleaning. We also offer multiple materials to choose from, ensuring that our products are compatible with a wide range of chemical processes.
Our components are suitable for high temperature applications, making them a reliable choice for demanding industrial settings where heat resistance is crucial. Additionally, they are mechanically robust, ensuring that they can withstand the wear and tear of frequent use.
With our components, you can expect a lesser probability of breakage compared to other products on the market. This is due to the high quality materials we use in our manufacturing process, ensuring that our products deliver superior performance and longevity.
Our components are renowned for their good liquid and gas distribution properties, ensuring that your chemical process runs smoothly and efficiently. Finally, our products boast high mass transfer efficiency, making them an efficient solution for your chemical processing needs.
Technical Parameters:
| Model |
Pall Ring |
| Material |
Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. |
| Preferred Sizes |
(mm) |
16*16*0.3 |
25*25*0.3 |
38*38*0.4 |
50*50*0.5 |
76*76*0.6 |
89*89*0.7 |
| Bulk density |
(kg/m3) |
345 |
214 |
193 |
182 |
142 |
145 |
| Number |
(per m3) |
201000 |
51000 |
15000 |
6500 |
1830 |
1160 |
| Surface area |
(m2/m3) |
346 |
212 |
145 |
106 |
69 |
62 |
| Free volume |
(%) |
95.5 |
96.2 |
96.7 |
97.5 |
97.4 |
97.1 |
| Typical Application |
Absorption, scrubbing and stripping services |
| Port |
Tianjin Xingang Port |
| Model Number |
YH-006 |
| Keyword |
Tower Packing, Metal Random Packing, SS316 Structure Packing |
| Sample |
For Free |
| Place of Origin |
Hebei Province,China |
| Application field |
Industrial |
| Pressure Resistance |
High |
| Usage |
Chemical |
| Package |
By Wooden Box |
| Brand Name |
Yuanhai |
Applications:
1. Absorption, Scrubbing, and Stripping Services
In numerous industries, absorption, scrubbing, and stripping services, like selective absorption of CO2 and H2S, and air pollution control scrubbers, are employed. These services are utilized to get rid of impurities from a gas stream, to separate compounds from a mixture, or to recover chemicals in a chemical process. A number of factors, such as the chemical properties of the molecules involved, the operating temperature and pressure, and the desired level of separation, influence the selection of the best method for these services.
2. Heat Transfer
In a wide range of industrial processes, heat transfer is a crucial component. Heat transfer is the process of transferring thermal energy from a hot object to a colder one. The process is critical to numerous industrial processes such as distillation, drying, and solvent evaporation, to mention a few. In various applications, heat exchangers are utilized, including shell-and-tube, plate-and-frame, and spiral heat exchangers. The selection of an appropriate method depends on factors like the material of construction, fluids involved, desired heat transfer coefficient, and pressure drop.
3. Liquid-Liquid Extraction
Liquid-liquid extraction is a technique in which different compounds or substances are separated from each other based on their solubility and distribution in two immiscible liquids. The method is commonly employed in the chemical, pharmaceutical, and petroleum industries, among others, for the separation and purification of various compounds. Single-stage and multistage extraction processes are often utilized, and the type of solvent and operating conditions affect the efficiency of the extraction process.
4. Light Ends Fractionators
Light ends fractionators are units that are utilized to separate components in a mixture based on their boiling points. The units are commonly used in the petroleum industry to fractionate gases such as natural gas, propane, and butane. The separation occurs through a process known as distillation, in which the mixture is heated and vaporized, and then condensed and collected based on the boiling points of the individual components. Factors like tray design, reflux ratio, and column dimensions govern the efficiency and effectiveness of the fractionation process.
Packing and Shipping:
Metal Tower Packing is packaged in a sturdy cardboard box to ensure safe transportation. Each box contains 50 pieces of the product. The boxes are then packed in a larger carton box with proper cushioning materials to prevent any damage during shipping.
FAQ:
What is the brand name of the metal tower packing?
The brand name of the metal tower packing is Yuanhai.
2.
What is the model number of the metal tower packing?
The model number of the metal tower packing is YH-009.
3.
Where is the metal tower packing manufactured?
The metal tower packing is manufactured in Hebei Province, China.
4.
Is the metal tower packing certified?
Yes, the metal tower packing is certified with ISO9001:2015 certification.
5.
What is the minimum order quantity for the metal tower packing?
The minimum order quantity for the metal tower packing is 2 m³.
