Product Details:
Payment & Shipping Terms:
|
| Product Name: | Gabion Box | Key Words: | Gabion Basket |
|---|---|---|---|
| Material: | Iron Wire | Surface Treatment: | Hot Dipped Galvanized, Galfan, PVC Coated |
| Function: | Protection,retaining Wall,rock Fall Protection | Advantage: | Flood Control Retaining Wall |
| Feature: | Durable,long Lasting,flexible | Packing: | 100sets/bundle |
| Delivery Time: | 8-14 Days | Galvanized Type: | Hot Dipped Galvanized Electro Galvanized |
| Place Of Origin: | Hebei, China | Processing Service: | Bending, Welding, Decoiling, Cutting, Punching |
| Highlight: | Flood Protection Gabion Box,Iron Wire PVC Coated Gabion Box,Iron Wire Galvanized Gabion Box |
||

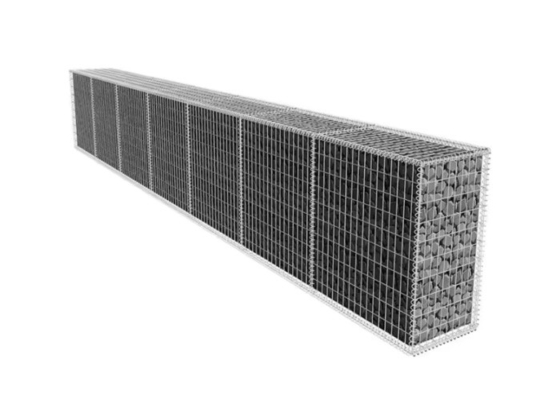

Product Description
Gabion basket, also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., is a widely used material structure in recent years for traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects.
It is made up of corrosion-resistant, high-strength, low-carbon galvanized steel wire or 5% to 10% thin alloy-coated steel wire (or homogeneous-coated polymer steel wire) that is twisted by machine into hexagonal mesh mesh. The length of the double-hinged parts should not be less than 5 cm, so as to not destroy the protecting coating of the steel wire. For more detail, please refer to industry standard YB/T4221-2010.
Gabion mesh can be assembled according to engineering design requirements, into boxes, filled with blocks and stones and other materials and connected into one, and used as embankment, roadbed protection and other engineering new technology.
Specification
| Nominal Dimensions | Number of Cells | Capacity(m³) | the tolerance | ||
| Length(m) | Width(m) | Height(m) | |||
| 2.0 | 1.0 | 0.15~0.3 | 1 | 0.3~0.6 |
(Length): +/-3% (Width): +/-5% (Height): +/-5% |
| 3.0 | 1.0 | 0.15~0.3 | 2 | 0.45~0.9 | |
| 4.0 | 1.0 | 0.15~0.3 | 3 | 0.6~1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 | |
| Binding Wire:Sufficient wire is supplied for lacing and bracing operations. | |||||
| All sizes and dimensions are normal. | |||||
River stone cage is also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, and gabion cage. It is a new material structure widely applied in numerous fields including traffic engineering, water conservancy projects, municipal projects, gardens, soil, and water conservation.
The gabion mesh is made of corrosion-resistant and high-strength, low-carbon galvanized steel wire or thin 5%-10% alloy coated steel wire (or equivalent homogeneously coated polymer steel wire). They are manually twisted into hexagonal meshes, and the length of each double-hinge part should not go below 5 cm in order to prevent potential damage to the protective coating of the steel wires. For more specifications, please refer to the national industry standard YB/T4221-2010.
Once assembled into boxes according to the engineering design requirements, gabion mesh can be filled with blocks and stones as well as other materials, and connected into one, serving as a new technology used in embankment, roadbed protection, and other engineering projects.
Stone cage net is mainly used to guide the river water. Rivers tend to follow the inherent flow channel, which may be a natural bend channel. In the event of a flood, with its huge and fast-flowing water quantity, the water will be under the inertia, tending to straighten its flow and violently impact the original channel and dam, possibly diverting the river and causing great disaster.
In order to reduce the rapid water erosion of the embankment, Stone Cage Cage or Stone Cage Mat is installed inside the embankment or along the edge of the channel. The turbulent river directly impacts the Stone Cage Cage or Stone Cage Mat, thus protecting the embankment or channel. On the bend of the river, due to the Stone Cage Cage or Stone Cage Mat, the river will be guided to turn, along its inherent river flow, leading it to ety.
Stone cage net is also applied to spillway dams and diversion dams, in order to guide or restrain the flood. With its presence, these engineering structures will be much more effective.
Support and Services
We offer a comprehensive technical support and service for Gabion Wire Mesh. Our experienced staff can help you choose the right product for your needs and provide answers to any questions you may have. We also provide installation and maintenance services, as well as on-site troubleshooting and repair.
Our team of experienced technicians are available to help with any issues you may experience. We provide personalized service to ensure that you get the most out of your Gabion Wire Mesh. We also offer advice on how to best use and maintain your product.
We strive to provide the highest quality technical support and service for Gabion Wire Mesh. We are committed to delivering superior customer service and satisfaction. If you have any questions or concerns, please do not hesitate to contact us.
