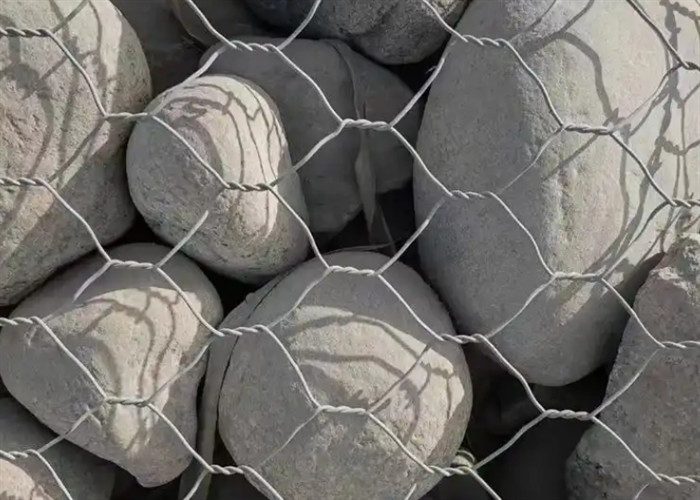

Description of Gabion Stone Cages
Gabion boxes are made of triple twist hexagonal woven wire mesh. Gabions stand out as the simple, efficient and economical solution, as the cages are simply filled with natural stone and also proven as environmentally friendly.
We design and supply Gabion Box made of double twisted hexagonal wire mesh or welded wire mesh. Thisk kind of mesh not only used as a gabion box, it also can be customized, not only the shape, size. and also can add small parts to make the mesh is more strong. one of our client asked us to add steel rope in the border and middle position, the gabion can be in roll or a box.
Intruduction of Gabion Stone Cages
1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).
2. Zinc coating : 225-275g/m2.
3. Tensile strength between 380N/mm2 -- 500N/mm2.
4. Elongation≥ 12%.
5.Wire Diameter:2.4-3.5mm
6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.
7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.
Specification of Gabion Stone Cages
1. Wire Diameter
| Mesh Wire(mm) |
Selvedge Wire(mm) |
Binding Wire(mm) |
| 2.0 |
2.4 |
2.2 |
| 2.2 |
2.7 |
2.2 |
| 2.4 |
3.0 |
2.2 |
| 2.7 |
3.4 |
2.2 |
| 2.75 |
3.4 |
2.2 |
| 3.0 |
3.9 |
2.2 |
| 3.4 |
4.4 |
2.2 |
2. Mesh Size
| Size(mm) |
 |
| 60x80 |
| 80x100 |
| 100x120 |
| 110x150 |
| 220x240 |
Features&Advantages of Gabion Stone Cages
1. Soft structure is exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.
2. Strong capacity of Anti-scour even reach to 6m/s.
3. The structure has permeability essentially, which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.
Application of Gabion Stone Cages
Gabion box can be used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.
Welded gabion box is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Welded Gabion box is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.

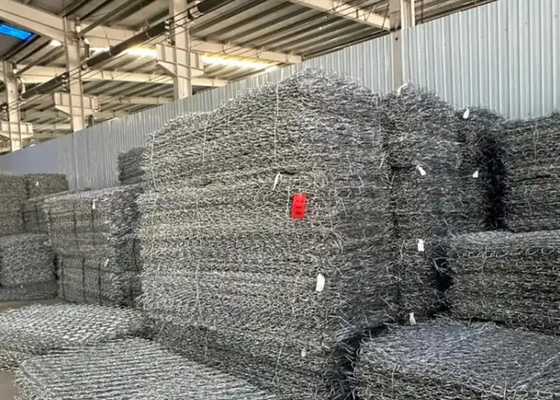

Product Show
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
