Anticorrosion Anti-aging Gabion Box / Welded Gabion Wire Mesh Stone Cages
Description
Material:hot-dip galvanized low carbon steel wire, Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion. PVC coated Wire, PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
opening: 6*8cm,8x10cm,10*12cm
mesh wire :2.2mm,2.7mm,3.0mm
Intruduction
1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).
2. Zinc coating : 225-275g/m2.
3. Tensile strength between 380N/mm2 -- 500N/mm2.
4. Elongation≥ 12%.
5.Wire Diameter:2.4-3.5mm
6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.
7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.
Specification
1. Wire Diameter
| Mesh Wire(mm) |
Selvedge Wire(mm) |
Binding Wire(mm) |
| 2.0 |
2.4 |
2.2 |
| 2.2 |
2.7 |
2.2 |
| 2.4 |
3.0 |
2.2 |
| 2.7 |
3.4 |
2.2 |
| 2.75 |
3.4 |
2.2 |
| 3.0 |
3.9 |
2.2 |
| 3.4 |
4.4 |
2.2 |
2. Mesh Size
| Size(mm) |
 |
| 60x80 |
| 80x100 |
| 100x120 |
| 110x150 |
| 220x240 |
Features&Advantages
Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.
Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.
Application
Welded gabion box is widely used for the control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil;protection engineering of seaside area and retaining wall structures; hydraulic structures,dams and culverts; coastal embankment works; architectural feature retaining walls.The main application as follows:
a. Control and guide of water or flood
b. Flood bank or guiding bank
c. Preventing of rock breaking
d. Water and soil protection
e. Bridge protection
f. Strengthening structure of soil
g. Protection engineering of seaside area

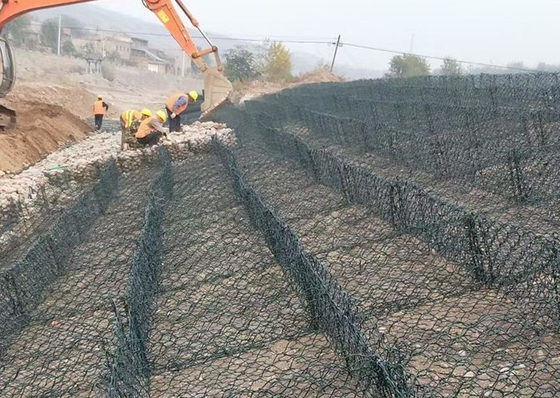

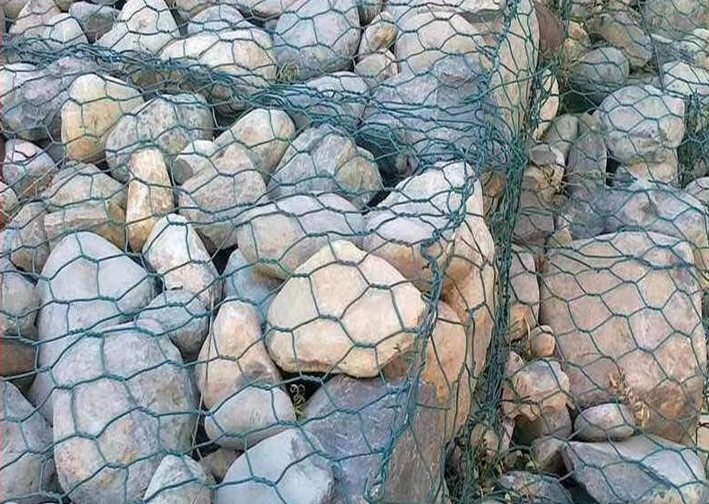

Product Show
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
