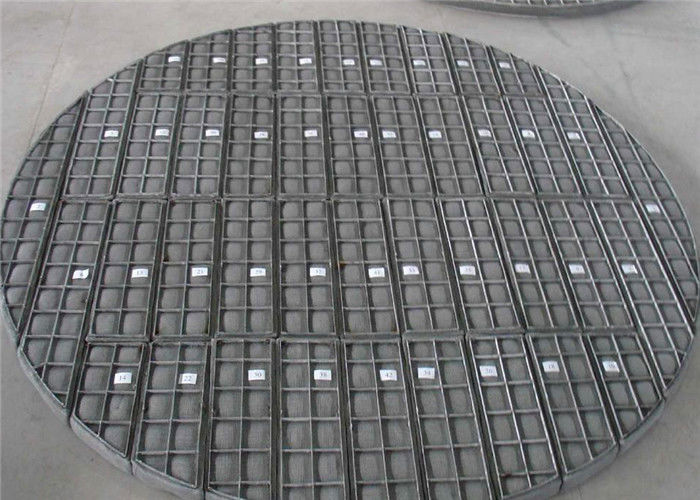

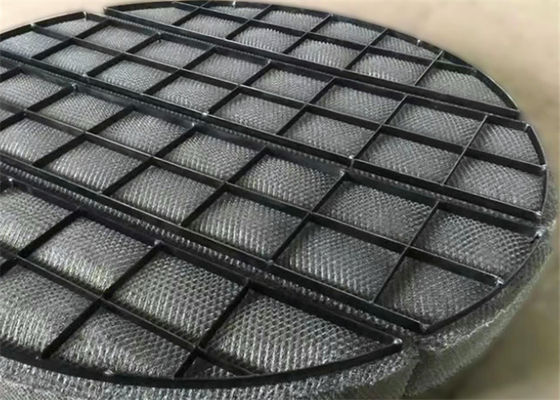

Stainless Steel 304 Demister Pad For Liquid And Gas Separation
Product Description:
Wire mesh demister (also called wire mesh defogger or bubble trap) is a highly efficient device used for separating gas and liquid. It is frequently used in several industries, including chemical, petroleum, pharmaceutical, light industry, metallurgy, machinery, construction and aviation. It is also employed in the maritime transport and environmental protection sectors, as well as in production equipment such as ethylene, synthetic ammonia and chemical fiber imported from other countries.
It is mainly used to seperate droplets that have a diameter between 3-5 μm. It is renowned for its capability to effectively separate gas and liquid, making it a viable option for multiple industries.
Features:
» Simple structure.
» Lightweight and easy to transport.
» High porosity, less pressure drops.
» Large surface area and high separating efficiency.
» Easy to install, operate and maintain.
» Durable and long service life.
» Corrosion and rust resistance.
Our products have many obvious advantages, such as neat and precise, reliable filtering precision, thermal & shock resistance, high compressive strength, corrosion and rust resistance, wear-resistance, and also with high removal efficiency. Moreover, these products have low pressure drop, less than 25 millimeters of water gauge, without any maintenance or service required. It also easily installed in existing vessels with no limitation on size or shape.
Technical Parameters:
| Product Name |
Demister Pad |
| Port of Loading |
Xingang Port,China |
| Pallet |
Wooden Box, Carton Box, Pallet |
| Length |
Customized |
| Place of Origin |
Hebei Province,China |
| Keyword |
Stainless Steel Wire Mesh Demister |
| Width |
Customized |
| Thickness |
Customized |
| Brand Name |
Yuanhai |
| Certification |
ISO9001:2015 |
| OEM |
Yes |
| Oil Mist Eliminator |
Yes |
Specifications:
1)Standard type
|
Wire diameter
dw(mm)
|
Width tolerance
(mm)
|
Density
(kg/m3)
|
Surface area
(m2/m3)
|
Free volume |
| Flat wire |
Round wire |
+10
-0
|
150 |
450 |
320 |
0.981 |
| 0.1*0.4 |
0.23 |
28 layers of knitted mesh for 100mm thickness
2)High efficiency type
|
Wire diameter
dw(mm)
|
Width tolerance
(mm)
|
Density
(kg/m3)
|
Surface area
(m2/m3)
|
Free volume |
| Flat wire |
Round wire |
+10
-0
|
182 |
626 |
484 |
0.977 |
| 0.1*0.3 |
0.19 |
32 layers of knitted mesh for 100mm thickness
3)High Penetration
|
Wire diameter
dw(mm)
|
Width tolerance
(mm)
|
Density
(kg/m3)
|
Surface area
(m2/m3)
|
Free volume |
| Flat wire |
Round wire |
+10
-0
|
98 |
313 |
217 |
0.9875 |
| 0.1*0.4 |
0.23 |
28 layers of knitted mesh for 100mm thickness
Applications:
Stainless steel demister pad to ensure that the mass transfer efficiency, reduce the loss of valuable materials and improving the tower after the operation of the compressor, more commonly in the top screen defoaming device Settings. Can effectively remove 3 - 5 um droplets, tray if setting between demister, not only can ensure the mass transfer efficiency of tray, also can reduce the plate spacing. So the screen defoaming machine is mainly used for gas liquid separation. Also for the air filter used for gas separation. In addition, the screen also can be used as instrument of buffer in instrument industry, in order to prevent the radio interference of electromagnetic shielding, etc
Support and Services:
We offer professional technical support and service for Wire Mesh Demister Pad. We provide full support for installation, maintenance, troubleshooting, and product development. We have a team of experienced professionals who are ready to answer all your questions and provide you with the best customer service. Our support team is available 24/7 and can provide you with assistance in all aspects of the product. We also provide customer-specific product design and modification services, as well as customized solutions to meet your specific needs.
FAQ:
- Q: What is the Brand Name of Wire Mesh Demister Pad?
- A: The Brand Name is Yuanhai.
- Q: What is the Model Number of Wire Mesh Demister Pad?
- A: The Model Number is YH-06.
- Q: Where is the Place of Origin of Wire Mesh Demister Pad?
- A: The Place of Origin is Hebei Province,China.
- Q: What is the Certification of Wire Mesh Demister Pad?
- A: The Certification is ISO9001:2015.
- Q: What is the Minimum Order Quantity of Wire Mesh Demister Pad?
- A: The Minimum Order Quantity is 5 PCS.
