Product Description:

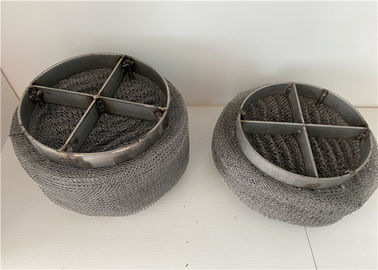

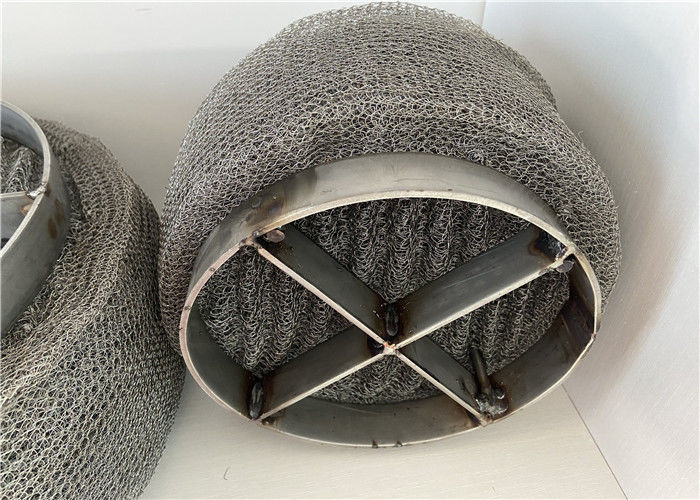

Wire mesh demister is a kind of vapor-liquid separating device, It is used to remove the steam, entrained droplets in the processing equipment when the gas go through demister wire pad, with big surface, high demisting efficiency, and long working life, good resistance.
* Wire Mesh Demister Material : Stainless Steel 304L, 316L, Monel, Nickle, ect.
* Wire Diameter: 0.08--0.50mm, But 0.2mm-0.25mm are the most common wire diameter specifications.
* Width: 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc. Less than 1000mm width are the most common width and are easy to make. Also available upon customers' request.
Specifications:
(1) standard type
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α (m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
150 |
Flat Wire |
Round Wire |
0.981 |
| 0.1*0.4 |
0.23 |
475 |
320 |
(2) High Penetration
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
98 |
Flat Wire |
Round Wire |
0.9875 |
| 0.1*0.4 |
0.23 |
313 |
217 |
(3) High Efficiency
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
182 |
Flat Wire |
Round Wire |
0.977 |
| 0.1*0.28 |
0.19 |
626 |
484 |
Features:
This product has a high removal efficiency and a negligible pressure drop, with less than 25mm of water gauge.
No maintenance or service is needed and there are no corrosion, temperature or shape limitations either. It is also easily installed in existing vessels, with no limitation on size or shape.
Moreover, its features include neat and precise filtering precision, thermal and shock resistance, high compressive strength, corrosion and rust resistance, and wear-resistance.
Technical Parameters:
Petroleum, chemical, light industry, medicine, metallurgy, aerospace, ship, environmental protection engineering distillation, evaporation, absorption and other processes in the gas-liquid separation, gas separation, mechanical equipment, oil and gas separation
We provide comprehensive technical support and service for our Wire Mesh Demister Pad products. Our team of experts can help you select the right product that meets your needs. We can also provide installation guidance, troubleshooting, and maintenance advice.
Our customer service representatives are available to answer any questions you may have about our products. We strive to make the process of selecting and purchasing our products as easy and hassle-free as possible.
We offer a variety of warranty options for our Wire Mesh Demister Pad products, including limited lifetime warranties. We also provide repair and replacement services for defective items.
If you ever have any questions or concerns about our Wire Mesh Demister Pad products, please don't hesitate to contact us. We are always here to help.
