Optimal Liquid-Gas Separation with Wire Mesh Demister Pad OEM
Product Description:

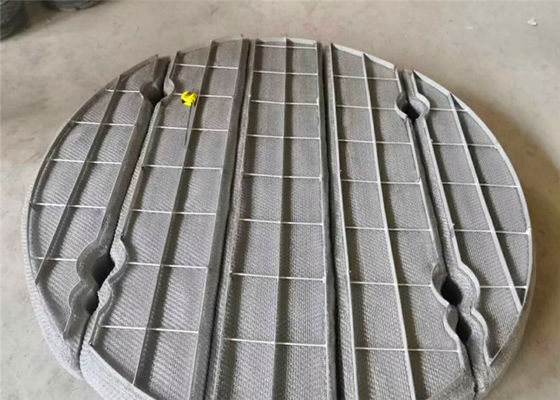

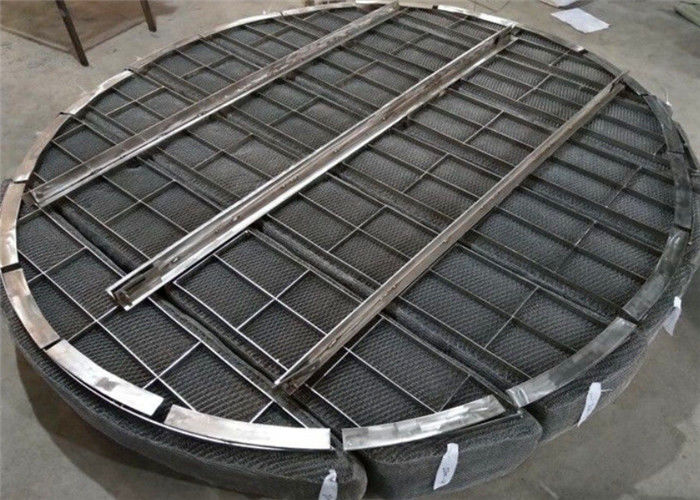

The demister pad is an efficient gas-liquid separation device, which is mainly used to separate droplets and fog in the gas. The working principle is that through the inertia of the mist rising, the mist collides with the mesh and is attached to the surface of the filament. Through the wettability of the filament, the surface tension of the liquid and the capillary action, the droplets gradually increase and separate, so as to achieve the purpose of purifying the gas.
Features:
This filtration system has many advantages that ensure its superior performance and efficiency:
- A high removal efficiency for particles of any size.
- A negligible pressure drop, offering a maximum of 25mm of water gauge.
- An easy yet durable installation in existing vessels.
- No need for maintenance and service; and no corrosion or temperature limitations.
- No restrictions on size or shape.
Furthermore, this system boasts exceptional features that make it highly desirable:
- Neat and precise filtration.
- Very reliable filtering precision.
- High thermal and shock resistance.
- Extremely strong compressive strength for long-term performance.
- High corrosion and rust resistance.
- Great wear-resistance to maintain peak performance.
Specifications:
(1) standard type
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α (m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
150 |
Flat Wire |
Round Wire |
0.981 |
| 0.1*0.4 |
0.23 |
475 |
320 |
(2) High Penetration
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
98 |
Flat Wire |
Round Wire |
0.9875 |
| 0.1*0.4 |
0.23 |
313 |
217 |
(3) High Efficiency
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
182 |
Flat Wire |
Round Wire |
0.977 |
| 0.1*0.28 |
0.19 |
626 |
484 |
Technical Parameters:
| Parameter |
Value |
| Pallet |
Wooden Box, Carton Box, Pallet |
| MOQ |
1 Piece |
| Keyword |
Stainless Steel Wire Mesh Demister |
| Thickness |
Customized |
| Brand Name |
Yuanhai |
| Type |
Filter |
| Port of Loading |
Xingang Port,China |
| Certification |
ISO9001:2015 |
| Filter Rating |
99.9% |
| Length |
Customized |
| Keywords |
SS 304 Gas-liquid Filter, For Vapor-liquid Filter, Demister Pad For Liquid And Gas Seperation |
Applications:
The main functions of the demister pad include the reduction of pollution and the reduction of solvent loss . Specifically, the defroster is used for gas-liquid separation in chemical, petroleum, manufacturing and other industries, and its main functions are as follows:
1.guaranteed mass transfer efficiency : The defroster can separate the droplets entrained by the gas in the tower to ensure mass transfer efficiency and reduce the loss of valuable materials.
2.Improved operating conditions : By separating the fog and foam in the gas, the defromer can optimize the process index, reduce the corrosion of the equipment, and extend the service life of the equipment.
3.protect the environment : reduce air pollution and protect the environment.
4.extend equipment life : reduce the water content, extend the life of the compressor.
5.Increased handling capacity : Increased handling capacity and recovery of valuable materials through effective separation of fog and foam.
Support and Services:
Wire Mesh Demister Pad Technical Support and Services
- Provide professional technical advice and solutions for Wire Mesh Demister Pad.
- Provide technical training for Wire Mesh Demister Pad.
- Provide comprehensive maintenance and after-sales service for Wire Mesh Demister Pad.
- Provide a one year warranty for Wire Mesh Demister Pad.
- Provide full range of spare parts for Wire Mesh Demister Pad.
FAQ:
- Q:What is the brand name of Wire Mesh Demister Pad?
- A: The brand name of Wire Mesh Demister Pad is Yuanhai.
- Q: What is the model number of Wire Mesh Demister Pad?
- A: The model number of Wire Mesh Demister Pad is YH-06.
- Q: Where is the place of origin of Wire Mesh Demister Pad?
- A: The place of origin of Wire Mesh Demister Pad is Hebei Province,China.
- Q: What is the minimum order quantity of Wire Mesh Demister Pad?
- A: The minimum order quantity of Wire Mesh Demister Pad is 5 PCS.
- Q: How about the price of Wire Mesh Demister Pad?
- A: The price of Wire Mesh Demister Pad is negotiable.
