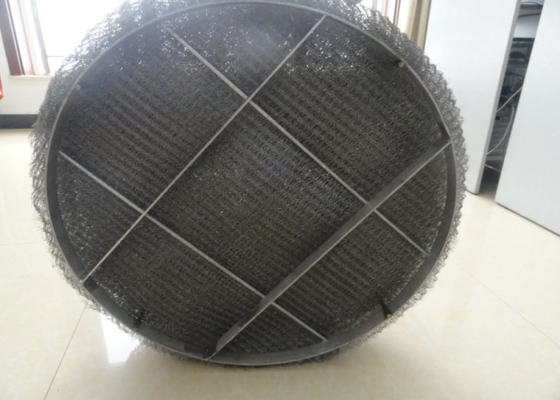

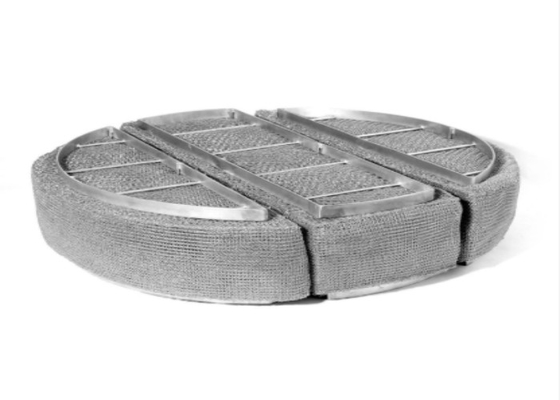

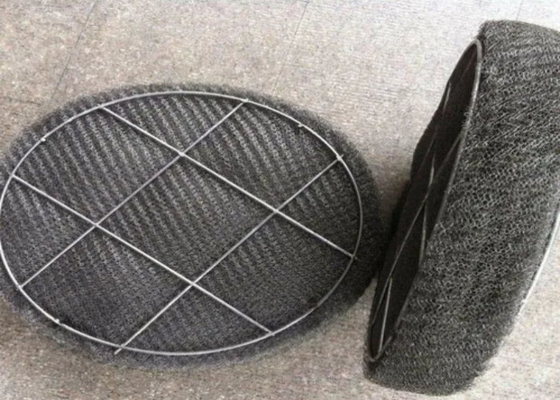

316 SS Wire Mesh Demister Pad - Durable Vapor Liquid Separation for Industrial Use
Product Description:
Our 316 stainless steel wire mesh demister pad is an industrial-grade mist elimination solution designed for superior vapor-liquid separation in harsh processing environments. Manufactured with high-quality 316 stainless steel wires, these demister pads effectively remove liquid droplets from gas streams while offering exceptional corrosion resistance.
Key Advantages:
Premium 316 stainless steel construction for maximum corrosion resistance
Multi-layer mesh design ensures high separation efficiency (99%+ for droplets >3μm)
Maintains structural integrity at temperatures up to 480°C (900°F)
Low pressure drop design minimizes energy consumption
Customizable configurations for specific process requirements
Technical Specifications:
Material: 316 stainless steel (optional 316L available)
Wire Diameter: 0.15mm-0.3mm (standard)
Mesh Density: 100-200 kg/m³ (customizable)
Standard Thickness: 100mm or 150mm (other sizes available)
Maximum Operating Temperature: 480°C (900°F)
Separation Efficiency: 99% for droplets >3μm
Pressure Drop: <250 Pa at 1.5m/s gas velocity
Applications:
Chemical processing plants
Oil & gas refineries
Petrochemical facilities
Power generation systems
Marine and offshore applications
Pharmaceutical production
Food processing equipment
Manufacturing Process:
High-quality 316 stainless steel wire selection
Precision knitting into multi-layer mesh structure
Special crimping process for optimal gas flow
Edge binding with reinforced stainless steel frame
Quality inspection including:
Mesh density verification
Dimensional accuracy check
Material composition testing
FAQ:
Q: What is the main advantage of 316 SS demister pads?
A: They offer superior corrosion resistance, especially in chloride/saltwater environments, lasting 3-5 times longer than standard steel.
Q: What size droplets can these remove?
A: Effectively captures droplets as small as 3 microns with ≥99% efficiency.
Q: How do I choose the right thickness?
A: Standard 100mm works for most applications; 150mm provides higher efficiency for fine mists.
Q: What temperatures can they handle?
A: Continuous operation up to 480°C (900°F), with short-term peaks to 550°C (1020°F).
Q: How do I clean them?
A: Simple water rinsing or mild chemical cleaning; avoid abrasive methods.
Q: What's the delivery time?
A: Standard sizes ship in 5-7 days; custom configurations take 2-3 weeks.
Q: What's the typical lifespan?
A: 5-8 years in continuous operation, depending on chemical exposure.
Q: Do you provide installation support?
A: Yes, we offer technical drawings and installation guidelines with every order.
Technical Data Sheet:
| Parameter |
Details |
| Material |
304 Stainless Steel (ASTM A240 compliant) |
| Wire Diameter |
0.1mm–0.3mm (customizable) |
| Mesh Density |
100–300 kg/m³ (standard), other densities available |
| Thickness |
50mm–300mm (typical) |
| Operating Temp |
-20°C to +400°C |
| Pressure Drop |
<30 Pa (design-dependent) |
| Applications |
Scrubbers, distillation towers, LNG plants, HVAC, marine exhaust systems |
