316 Stainless Steel Wire Mesh Demister Pad for Gas Liquid Separation

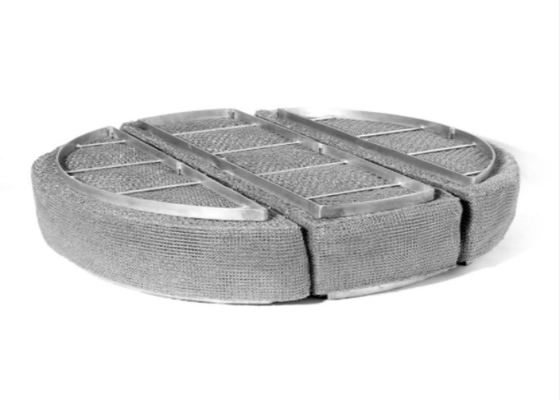

Large Image : 316 Stainless Steel Wire Mesh Demister Pad for Gas Liquid Separation

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	$29-86/set
Packaging Details:	By Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	10000 ㎡ 7 days

Contact Now

Detailed Product Description

Material:	Metal,316L,Stainless Steel	Hole Shape:	Round,Square
Width:	Customized,Require	Type:	Filter Elements,Filter Disc
Length:	Customize Length,Requirement	Application:	Kinds Filtration Industry,Chemical Industry,Gas Liquid Separation
Feature:	Corrosion Resistance,high Mechanical Damping Characteristics And Non-linear Spring Rates	Usage:	Liquid Filter,Air Filter,gas-liquid Separator
Highlight:	Industrial Wire Mesh Demister Pad , Durable Wire Mesh Demister Pad , 316 SS Wire Mesh Demister Pad

316 SS Wire Mesh Demister Pad - Durable Vapor Liquid Separation for Industrial Use

Product Attributes

Material	Metal, 316L, Stainless Steel
Hole Shape	Round, Square
Width	Customized, Require
Type	Filter Elements, Filter Disc
Length	Customize Length, Requirement
Application	Kinds Filtration Industry, Chemical Industry, Gas Liquid Separation
Feature	Corrosion Resistance, high mechanical damping characteristics and non-linear spring rates
Usage	Liquid Filter, Air Filter, gas-liquid separator

Product Description

Our 316 stainless steel wire mesh demister pad is an industrial-grade mist elimination solution designed for superior vapor-liquid separation in harsh processing environments. Manufactured with high-quality 316 stainless steel wires, these demister pads effectively remove liquid droplets from gas streams while offering exceptional corrosion resistance.

Key Advantages

Premium 316 stainless steel construction for maximum corrosion resistance
Multi-layer mesh design ensures high separation efficiency (99%+ for droplets >3μm)
Maintains structural integrity at temperatures up to 480°C (900°F)
Low pressure drop design minimizes energy consumption
Customizable configurations for specific process requirements

Technical Specifications

Material: 316 stainless steel (optional 316L available)
Wire Diameter: 0.15mm-0.3mm (standard)
Mesh Density: 100-200 kg/m³ (customizable)
Standard Thickness: 100mm or 150mm (other sizes available)
Maximum Operating Temperature: 480°C (900°F)
Separation Efficiency: 99% for droplets >3μm
Pressure Drop: <250 Pa at 1.5m/s gas velocity

Applications

Chemical processing plants
Oil & gas refineries
Petrochemical facilities
Power generation systems
Marine and offshore applications
Pharmaceutical production
Food processing equipment

Manufacturing Process

High-quality 316 stainless steel wire selection
Precision knitting into multi-layer mesh structure
Special crimping process for optimal gas flow
Edge binding with reinforced stainless steel frame
Quality inspection including:
- Mesh density verification
- Dimensional accuracy check
- Material composition testing

Q: What is the main advantage of 316 SS demister pads?

A: They offer superior corrosion resistance, especially in chloride/saltwater environments, lasting 3-5 times longer than standard steel.

Q: What size droplets can these remove?

A: Effectively captures droplets as small as 3 microns with ≥99% efficiency.

Q: How do I choose the right thickness?

A: Standard 100mm works for most applications; 150mm provides higher efficiency for fine mists.

Q: What temperatures can they handle?

A: Continuous operation up to 480°C (900°F), with short-term peaks to 550°C (1020°F).

Q: How do I clean them?

A: Simple water rinsing or mild chemical cleaning; avoid abrasive methods.

Q: What's the delivery time?

A: Standard sizes ship in 5-7 days; custom configurations take 2-3 weeks.

Q: What's the typical lifespan?

A: 5-8 years in continuous operation, depending on chemical exposure.

Q: Do you provide installation support?

A: Yes, we offer technical drawings and installation guidelines with every order.

Technical Data Sheet

Parameter	Details
Material	304 Stainless Steel (ASTM A240 compliant)
Wire Diameter	0.1mm-0.3mm (customizable)
Mesh Density	100-300 kg/m³ (standard), other densities available
Thickness	50mm-300mm (typical)
Operating Temp	-20°C to +400°C
Pressure Drop	<30 Pa (design-dependent)
Applications	Scrubbers, distillation towers, LNG plants, HVAC, marine exhaust systems
