Gabion Basket Description

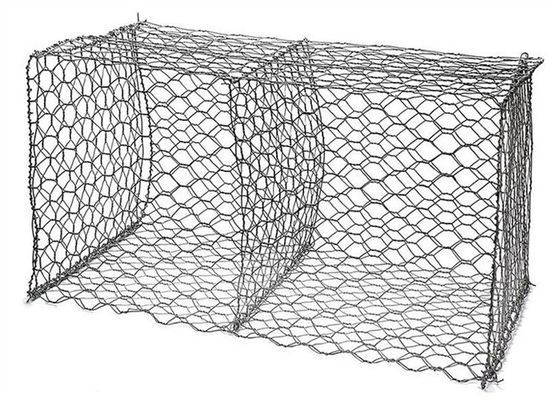

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
Gabion Basket Intruduction
1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).
2. Zinc coating : 225-275g/m2.
3. Tensile strength between 380N/mm2 -- 500N/mm2.
4. Elongation≥ 12%.
5.Wire Diameter:2.4-3.5mm
6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.
7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.
Gabion Basket Specification
1. Wire Diameter
| Mesh Wire(mm) |
Selvedge Wire(mm) |
Binding Wire(mm) |
| 2.0 |
2.4 |
2.2 |
| 2.2 |
2.7 |
2.2 |
| 2.4 |
3.0 |
2.2 |
| 2.7 |
3.4 |
2.2 |
| 2.75 |
3.4 |
2.2 |
| 3.0 |
3.9 |
2.2 |
| 3.4 |
4.4 |
2.2 |
2. Mesh Size
| Size(mm) |
 |
| 60x80 |
| 80x100 |
| 100x120 |
| 110x150 |
| 220x240 |
Features&Advantages
(1) Construction is simple,
(2) Can withstand a large range of deformation, but still does not collapse.
(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.
(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.
(5) Saving transportation costs.Fold transport and assemble on site.
(6) Good flexibility: no structural joints, the overall structure has ductility.
(7) Corrosion resistance: PVC coating is not afraid of erosion.
Application
Welded gabion box is widely used for the control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil;protection engineering of seaside area and retaining wall structures; hydraulic structures,dams and culverts; coastal embankment works; architectural feature retaining walls.The main application as follows:
a. Control and guide of water or flood
b. Flood bank or guiding bank
c. Preventing of rock breaking
d. Water and soil protection
e. Bridge protection
f. Strengthening structure of soil
g. Protection engineering of seaside area

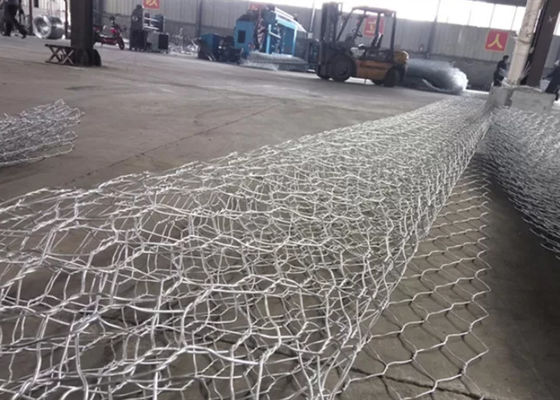

Product Show
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
