Description of Gabion Basket
Stone cage net is a kind of product made by mechanically weaving high corrosion-resistant, high-strength and highly ductile low-carbon steel wire or steel wire coated with PVC. It is mainly used to make stone cage boxes for slope support, foundation pit support and other projects. The features of stone cage net include high corrosion resistance, high strength and flexibility, which can adapt to the changes of slopes without being damaged, and has good safety and stability.
Material and Structure
The material of gabion mesh is mainly low-carbon steel wire or steel wire coated with PVC. The diameter of the steel wire is generally between 2.0 and 4.0 mm, with a tensile strength of no less than 38 kg/m² and a metal coating weight of more than 245 g/m². The length of the double-twisted part shall not be less than 50 mm to ensure that the metal coating and PVC coating of the steel wire in the twisted part are not damaged.
Intruduction of Gabion Basket
1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).
2. Zinc coating : 225-275g/m2.
3. Tensile strength between 380N/mm2 -- 500N/mm2.
4. Elongation≥ 12%.
5.Wire Diameter:2.4-3.5mm
6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.
7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.
Specification of Gabion Basket
1. Wire Diameter
| Mesh Wire(mm) |
Selvedge Wire(mm) |
Binding Wire(mm) |
| 2.0 |
2.4 |
2.2 |
| 2.2 |
2.7 |
2.2 |
| 2.4 |
3.0 |
2.2 |
| 2.7 |
3.4 |
2.2 |
| 2.75 |
3.4 |
2.2 |
| 3.0 |
3.9 |
2.2 |
| 3.4 |
4.4 |
2.2 |
2. Mesh Size
| Size(mm) |
 |
| 60x80 |
| 80x100 |
| 100x120 |
| 110x150 |
| 220x240 |
Features&Advantages of Gabion Basket
(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;
(2) the construction is simple and does not need special technology;
(3) Strong ability to resist natural damage, corrosion and adverse weather effects;
(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.
(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance,
(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.
Application of Gabion Basket
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road

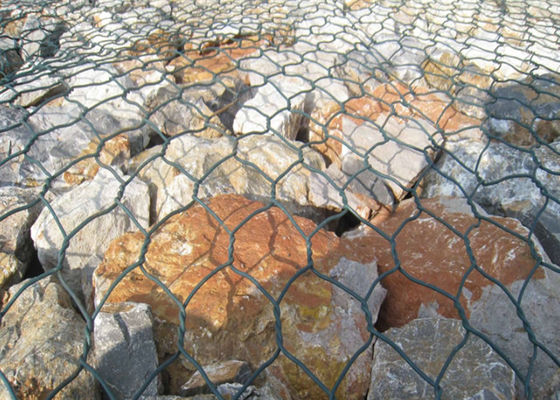

Product Show
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
