Product Description:

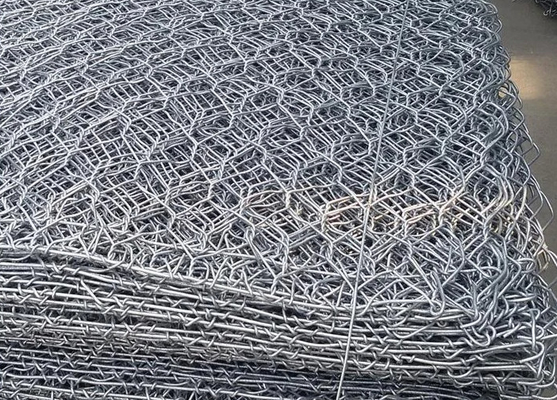

Gabion basket is also called gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., mesh ecological green grid is widely used in recent years in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects in a new material structure.Ecological grid is the corrosion resistance of high strength low carbon galvanized steel wire or 5% ~ 10% thin alloy coated steel wire (or homogeneous coated polymer steel wire), by the machine will be twisted twisted, hexagonal mesh mesh, the length of the double hinge part should not be less than 5cm, in order not to destroy the protective coating of steel wire.See industry standard YB/T4221-2010 for details.Gabion mesh can be assembled into boxes according to engineering design requirements, and loaded into blocks and stones and other filling materials connected into one, used as embankment, roadbed protection and other engineering new technology.
| Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m, |
Mesh Size
(mm) |
Number of Diaphragm |
Approximate dimensions and Volumes |
Tolerance |
Color |
Wire diameter
(mm) |
Length
(m) |
Width
(m) |
Height
(m) |
Capacity
(m³) |
80x100
80x120
100x120
120x150 |
1 |
2.00 |
1.00 |
0.30 |
0.60 |
Length±5%
Width±5%
Height±5% |
Blue
RedGreen
Black |
2.0-4.0 |
| 1 |
2.00 |
1.00 |
0.50 |
1.00 |
| 1 |
2.00 |
1.00 |
1.00 |
2.00 |
| 2 |
3.00 |
1.00 |
0.30 |
0.90 |
| 2 |
3.00 |
1.00 |
0.50 |
1.50 |
| 2 |
3.00 |
1.00 |
1.00 |
3.00 |
| 3 |
4.00 |
1.00 |
0.30 |
1.20 |
| 3 |
4.00 |
1.00 |
0.50 |
2.00 |
| 3 |
4.00 |
1.00 |
1.00 |
4.00 |
| 1 |
2.00 |
0.50 |
0.50 |
0.50 |
| 2 |
3.00 |
0.50 |
0.50 |
0.75 |
| Note: other size can be produced according to customer's request |
Features:
River stone cage, also called Gabion Mesh, Green Grid, Gabion Retaining Wall, Reynolds Pad, Reinforced Gabion, Gabion Cage, etc. has been widely used in recent years for traffic, water conservancy, municipal, gardens, soil and water conservation in a new material structure. Ecological Green Grid is made of corrosion-resistant, high strength, low carbon galvanized steel wire or 5%-10% thin alloy coated steel wire (or homogeneous coated polymer steel wire) that is twisted together by machine. The double hinge part length should not be less than 5cm, in order to keep the protective coating of the steel wire intact.See YBT4221-2010 for details.
Gabion mesh can be assembled into boxes to required specifications and filled with blocks, stones and other filling materials that are connected together. It is used as a new technology for engineering, such as embankment and roadbed protection.
Technical Parameters:
This product is made of low carbon steel wire, with weaving technology of twist knitting. Four principal types of meshes are available: a quarter to eight, and wire diameters range from 1.5 to 5 mm, with the apertures ranging from 60*80, 100*120, 120*150 to 160*180.
It is rooted from Anping, Hebei, mainly applied in coastal defense engineering, river protection, garden landscape, etc. This product can further be surface treated with plastic-coated PVC.
Applications:
Stone cage net is mainly used to guide river water along the river flow to ety. During flood, the water quantity is massive and fast-flowing, which will cause violent impact to the channel and dam and result in river diversion, leading to great disaster.

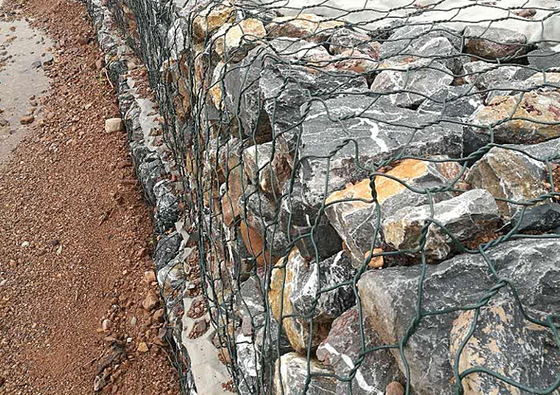

Stone cage net is employed to reduce the rapid erosion of embankment caused by water, by placing it inside or at the edge of the channel. When the turbulent river hit this stone cage net, the embankment or channel is protected. In the bends of the river, this tool will guide the river to follow the original flow.
Apart from guiding the floodwater, stone cage net is also applied to spillway dam and diversion dam, to divert and control water.
Support and Services:
Gabion Wire Mesh Technical Support and Service
We offer comprehensive technical support and service for our Gabion Wire Mesh products. Our team of experts is available to answer any questions you may have about our products. We can provide advice on installation, maintenance, and troubleshooting. We also offer on-site inspection and repair services to ensure your Gabion Wire Mesh system is functioning properly. We strive to provide the highest quality customer service to ensure your satisfaction.
FAQ:
- Q: What is Gabion Wire Mesh?
- A: Gabion Wire Mesh is a type of woven wire mesh used for strength and durability in a variety of applications.
- Q: What is the Brand Name?
- A: The Brand Name is Yuanhai.
- Q: What is the Model Number?
- A: The Model Number is YH-08.
- Q: Where is the Place of Origin?
- A: The Place of Origin is Hebei Province, China.
- Q: What is the Certification?
- A: The Certification is ISO9001:2015.
- Q: What is the Minimum Order Quantity?
- A: The Minimum Order Quantity is 100 pcs.
