Product Description:
Gabion Basket
River stone cage is also called gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., mesh ecological green grid is widely used in recent years in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects in a new material structure.Ecological grid is the corrosion resistance of high strength low carbon galvanized steel wire or 5% ~ 10% thin alloy coated steel wire (or homogeneous coated polymer steel wire), by the machine will be twisted twisted, hexagonal mesh mesh, the length of the double hinge part should not be less than 5cm, in order not to destroy the protective coating of steel wire.See industry standard YB/T4221-2010 for details.Gabion mesh can be assembled into boxes according to engineering design requirements, and loaded into blocks and stones and other filling materials connected into one, used as embankment, roadbed protection and other engineering new technology.
| Gabion Box 2m x 1m x 1m,3m x 1m x 1m,4m x 1m x 1m, |
Mesh Size
(mm) |
Number of Diaphragm |
Approximate dimensions and Volumes |
Tolerance |
Color |
Wire diameter
(mm) |
Length
(m) |
Width
(m) |
Height
(m) |
Capacity
(m³) |
80x100
80x120
100x120
120x150 |
1 |
2.00 |
1.00 |
0.30 |
0.60 |
Length±5%
Width±5%
Height±5% |
Blue
RedGreen
Black |
2.0-4.0 |
| 1 |
2.00 |
1.00 |
0.50 |
1.00 |
| 1 |
2.00 |
1.00 |
1.00 |
2.00 |
| 2 |
3.00 |
1.00 |
0.30 |
0.90 |
| 2 |
3.00 |
1.00 |
0.50 |
1.50 |
| 2 |
3.00 |
1.00 |
1.00 |
3.00 |
| 3 |
4.00 |
1.00 |
0.30 |
1.20 |
| 3 |
4.00 |
1.00 |
0.50 |
2.00 |
| 3 |
4.00 |
1.00 |
1.00 |
4.00 |
| 1 |
2.00 |
0.50 |
0.50 |
0.50 |
| 2 |
3.00 |
0.50 |
0.50 |
0.75 |
| Note: other size can be produced according to customer's request |
Features:
River Stone Cage - A Versatile Building Material
River stone cage is also known as gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, and gabion cage. In recent years, it has become a widely used material for its structure in various engineering projects such as in traffic, water conservancy, municipal, gardens, and soil and water conservation.

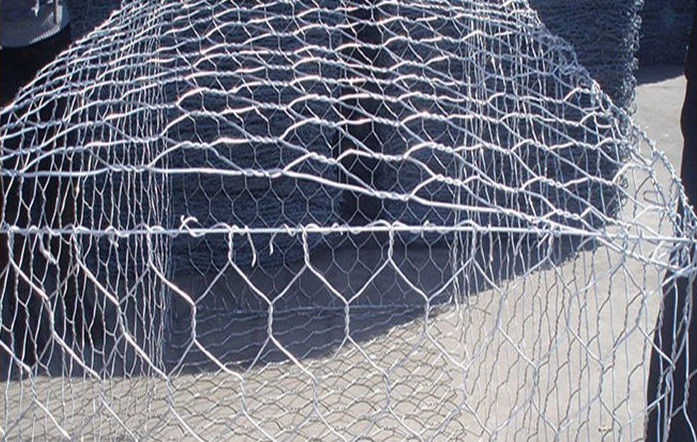

The ecological grid is composed of high-strength low-carbon galvanized steel wire or 5-10% thin alloy-coated steel wire (or homogeneous-coated polymer steel wire). It is twisted together with hexagonal mesh by machine and the length of the double hinge part should not be less than 5 cm in order to preserve the protective coating of the steel wire. Detailed specifications are available in the industry standard YB/T4221-2010.
Gabion mesh can be molded into boxes for engineering design requirements, connected with stones and filling materials for overall reinforcement used in embankments and road bed protection - a new technological advancement.
Technical Parameters:
Material used: low carbur steel wire.
Specification: 2X1X1 3X1X1 4X1X1 and customizable (M).
The weaving technology used is Twist Knitting, with the mesh ranging from a quarter to eight.
The wire diameters used range from 1.5 mm to 5.0 mm.
The apertures available are 60*80, 100*120, 120*150 and 160*180.
The product originates from Anping, Hebei.
The product has various USES, such as coastal defense engineering, river protection, garden landscape, etc.
The surface treatment process used is plastic-coated PVC.
Applications:
1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Reinforce fabric.
7. Seashore recovery project.
8. Seaport project.
Support and Services:
Gabion Wire Mesh Technical Support & Service
We provide comprehensive technical support and services for our Gabion Wire Mesh products. Our team of experienced professionals are available to assist with product selection, installation, and troubleshooting.
We offer a variety of services to ensure that you get the best performance from your Gabion Wire Mesh products, including:
- On-site installation and configuration
- Remote troubleshooting and technical support
- Regular maintenance and repair
- Training and education
If you have any questions or need assistance, please contact us and we will be happy to help.
FAQ:
- Q: What is Gabion Wire Mesh?
- A: Gabion Wire Mesh is a wire mesh container of steel wire, which is filled with stones to form a structure used in civil engineering, road building, military applications and architectural purposes.
- Q: What is the Brand Name of Gabion Wire Mesh?
- A: The Brand Name of Gabion Wire Mesh is Yuanhai.
- Q: What is the Model Number of Gabion Wire Mesh?
- A: The Model Number of Gabion Wire Mesh is YH-08.
- Q: Where is the Gabion Wire Mesh produced?
- A: Gabion Wire Mesh is produced in Hebei Province, China.
- Q: What is the Certification of Gabion Wire Mesh?
- A: The Certification of Gabion Wire Mesh is ISO9001:2015.
