Stainless Steel Wire Mesh Demister Pad 2-635 Mesh for Gas Liquid Separation

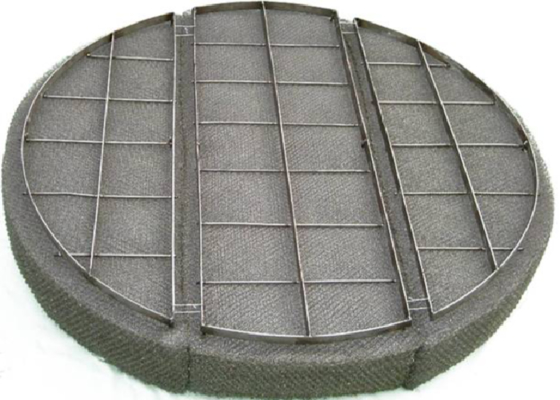

Large Image : Stainless Steel Wire Mesh Demister Pad 2-635 Mesh for Gas Liquid Separation

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	$29-86/set
Packaging Details:	By Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	10000 ㎡ 7 days

Contact Now

Detailed Product Description

Mesh Size:	2mm-10mm	Material:	Stainless Steel
Thickness:	100mm-200mm	After Sale Service:	Available
Shaple:	Round	Use:	Gas Liquid Separator
Mesh Count:	2-635 Mesh	Response Time:	Within 24 Hours
Highlight:	stainless steel wire mesh demister pad , 2-635 mesh gas separator , wire mesh liquid separator

Stainless Steel Wire Mesh Demister Pad 2-635 Mesh Gas Liquid Separator

Product Overview

Advanced wire mesh demister pads engineered for reliable gas liquid separation with excellent corrosion resistance and a compact low profile for tight vessel spaces. Suitable for petrochemical scrubbers, knockout drums, steam separators and offshore applications.

Key Attributes

Attribute	Value
Mesh Size	2mm-10mm
Material	Stainless Steel
Thickness	100mm-200mm
After Sale Service	Available
Shape	Round
Use	Gas Liquid Separator
Mesh Count	2-635 Mesh
Response Time	Within 24 hours

Product Highlights

High Efficiency ≥99% droplet removal
Corrosion Resistant with multiple material options
Compact Modular Design for easy retrofit
Low pressure drop saves operating energy
Lightweight construction for easy handling

Technical Specifications

Materials	304 / 316L SS Monel
Mesh Density	80-220 kg/m³
Wire Diameter	0.08-0.35 mm
Pad Thickness	25 / 50 / 75 / 100 mm
Removal Efficiency	≥99%(≥3-5 μm)
Pressure Drop	≤250 Pa
Operating Temp	−40 °C to +350 °C
Shapes	Rectangular, Round, Segmental, Custom
Standard Certs	ISO 9001

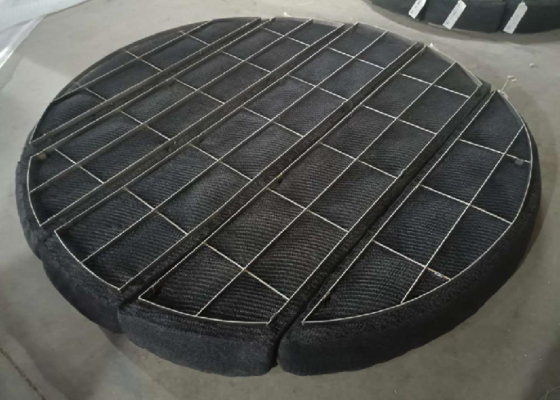

Product Images

Typical Applications

Petrochemical scrubbers
Knockout drums
Vapor recovery units
Offshore platforms
Power plant steam separators
Environmental control systems

Packaging & Shipping

Packaging: Export wooden crates, pallets or boxed with desiccant and corrosion inhibitor
Shipping: By sea, air or courier
Lead time: Standard units 10-15 business days, Custom 15-30 business days

Certifications

ISO 9001 material certificates mill test report available upon request
Packing list, commercial invoice, COA, shipping marks available

Frequently Asked Questions

Can you supply samples?

Yes, sample availability depends on size and material.

What is MOQ?

MOQ negotiable, typically 5-10 pcs depending on size.

Do you accept OEM drawings?

Yes, we produce per customer drawings and vessel specs.

Request a Custom Drawing and Free Quotation Today

Upload your vessel drawing or basic dimensions and our technical team will respond within 24 hours.
