Wire Mesh Demister Pad for Gas-Liquid Separation 100-4000mm Width

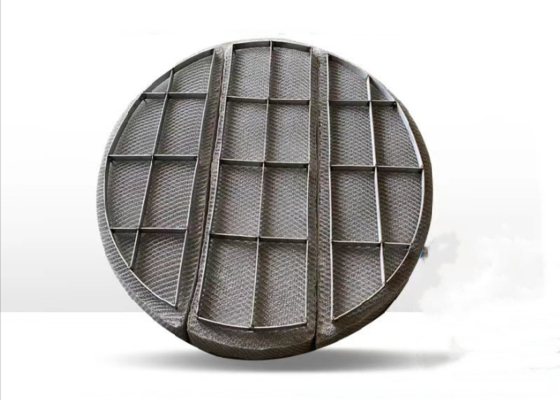

Large Image : Wire Mesh Demister Pad for Gas-Liquid Separation 100-4000mm Width

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	$29-86/set
Packaging Details:	By Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	10000 ㎡ 7 days

Contact Now

Detailed Product Description

Type:	Filter Elements,Filter Disc	Application:	Gas-liquid Separation
Advantage:	Fast Delivery	Mesh Size:	2-200 Mesh
Width:	100mm-4000mm, As Your Request	Height Or Thickness:	100 Mm To 150 Mm
Pressure Drop:	0.1-10kPa	Pallet:	Wooden Box, Carton Box, Pallet
Founction:	Tower, Columns	Installation:	Horizontal Or Vertical
Highlight:	wire mesh demister pad for gas separation , stainless steel demister pad 100-4000mm , industrial wire mesh demister pad

Wire Mesh Demister Pad - Compact Design, High Efficiency, Long Service Life

Product Attributes

Attribute	Value
Type	Filter Elements, Filter Disc
Application	Gas-liquid separation
Advantage	Fast Delivery
Mesh Size	2-200 mesh
Width	100mm-4000mm, as your request
Height Or Thickness	100 mm to 150 mm
Pressure Drop	0.1-10kPa
Pallet	Wooden Box, Carton Box, Pallet
Function	Tower, columns
Installation	Horizontal or vertical

Product Introduction

The Wire Mesh Demister Pad is engineered to remove fine liquid droplets from gas streams while saving internal vessel space. Its compact multilayer wire mesh structure ensures effective droplet capture, low re-entrainment, and minimal pressure drop, making it ideal for continuous industrial operations. Built with premium metallic alloys and engineering polymers, it withstands harsh chemical, offshore, and high-humidity environments, offering years of dependable performance.

Specification Table (Typical)

Item	Typical Value
Materials	304 SS, 316L SS, Monel, Hastelloy, Titanium, PTFE, PP
Layer Density	60-220 kg/m³ customizable
Wire Diameter	0.06-0.35 mm
Pad Depth	20, 40, 60, 100 mm or custom
Removal Efficiency	≥99% for droplets ≥3-5 μm
Pressure Drop	≤200 Pa at rated flow
Operating Temp	−40 °C to 350 °C (material dependent)
Shapes	Round, Rectangular, Segmental, Custom

Applications

Petrochemical scrubbers and separators
Steam drums and boilers
Knockout drums in gas processing plants
Offshore and marine separation units
Environmental and air pollution control systems

Features

Compact Build - Saves vessel space without compromising efficiency
High Capture Rate - Removes fine droplets to protect downstream equipment
Durable Construction - Withstands corrosive and high-temperature conditions
Low Maintenance - Modular design allows quick inspection and cleaning
Material Variety - Available in metals and polymers for different media

Advantages

Reduces carryover and prevents product loss
Improves plant efficiency by lowering pressure drop
Extends service intervals and equipment lifespan
Easy integration into new or existing systems
Tested for performance and dimensional accuracy before shipping

Production and Quality Control

Each pad is manufactured using precision knitting and controlled layering to ensure uniform pore structure and consistent performance. Quality checks include dimensional inspection, material verification, and separation efficiency testing. Custom designs can be made to match vessel geometry and process conditions.

Packaging and Delivery

Pads are packed in export-grade protective wrapping with desiccants and rust inhibitors. Standard delivery is 10-20 working days depending on customization. Technical support is available for selection, sizing, and installation guidance.
