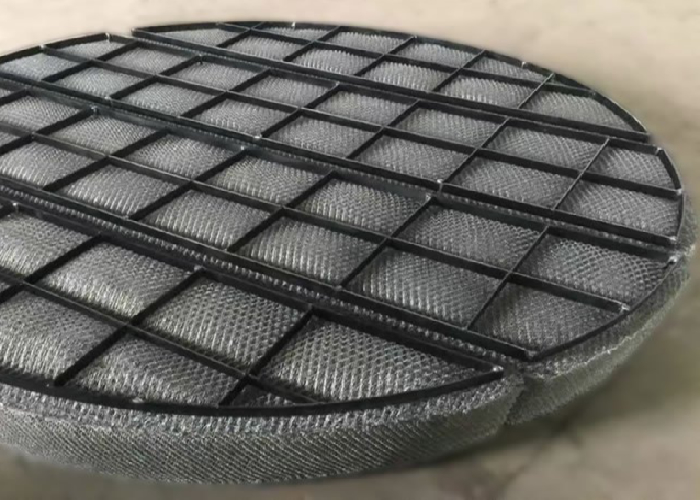

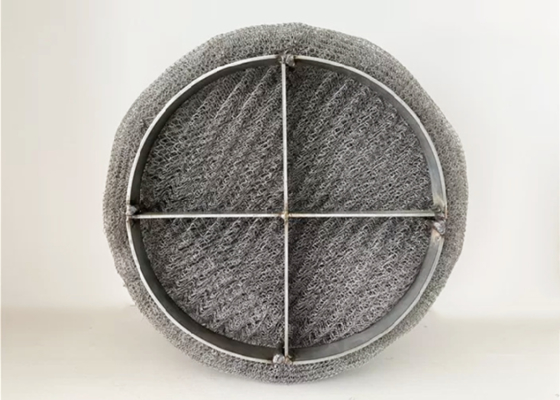

Stainless Steel Wire Mesh Demister Pad for Gas Liquid Separation

Large Image : Stainless Steel Wire Mesh Demister Pad for Gas Liquid Separation

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	YUANHAI
Certification:	ISO9001:2015
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	$29-86/set
Packaging Details:	By Wooden Box
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T
Supply Ability:	10000 ㎡ 7 days

Contact Now

Detailed Product Description

Material:	Stainless Steel	Size:	Customized
Height:	100-150MM/CUSTOMIZED	Application:	Gas-Liquid Separation
Pad Diameter:	300 Mm - 6000 Mm	Mesh Count:	2-635 Mesh
Packing:	Wooden Carton	Port:	XINGANG,TIANJIN
Highlight:	stainless steel wire mesh demister pad , gas liquid separation demister pad , wire mesh demister pad with warranty

Superior Efficiency Anti Corrosive Wire Mesh Demister Pad for Harsh Gas Liquid Separation

Product Attributes

Attribute	Value
Material	Stainless Steel
Size	Customized
Height	100-150MM/CUSTOMIZED
Application	Gas-Liquid Separation
Pad Diameter	300 mm - 6000 mm
Mesh Count	2-635 Mesh
Packing	Wooden Carton
Port	XINGANG,TIANJIN

Product Overview

The Superior Efficiency Anti Corrosive Wire Mesh Demister Pad is engineered for removing entrained liquid droplets and aerosol mist while maintaining compact vessel layouts. Its graded multilayer mesh matrix promotes impingement and coalescence, efficiently draining condensate back to the process for stable separation with minimal reentrainment. Available in various metallurgy and polymer options for chemical compatibility, the pad performs reliably in acidic, alkaline, saline, and solvent-rich environments, both onshore and offshore. Ideal for new installations and retrofit upgrades where low pressure loss and easy maintenance are priorities.

Technical Specifications

Parameter	Typical Range
Material Options	SS304, SS316L, Monel, Inconel, Hastelloy, Titanium, PTFE, PP
Density	80-200 kg/m³
Wire Diameter	0.08-0.28 mm
Thickness	50-150 mm
Separation Efficiency	≥99% for droplets ≥4 μm
Pressure Drop	≤180 Pa
Temperature Limit	−40 °C to 320 °C
Shape Availability	Round, Rectangular, Elliptical, Custom Designs

Key Features

Superior Mist Removal - Captures fine droplets to protect equipment and improve product purity
Anti Corrosive Materials - Performs reliably in acidic, alkaline, and marine environments
Minimal Energy Loss - Low pressure drop design reduces operational costs
Versatile Sizing - Custom dimensions to fit any vessel or tower design
Durable Structure - Maintains performance under vibration and fluctuating flow rates

Advantages

Prolongs service life of heat exchangers, compressors, and pipelines
Minimizes maintenance frequency and unscheduled downtime
Enhances process output by reducing contamination risks
Compatible with a wide variety of gases and vapors
Easy integration into both new installations and retrofit projects

Applications

Petrochemical absorbers and scrubbers, knockout drums in gas processing, steam separation in boilers and HRSG, vapor recovery units, distillation and fractionation columns, offshore topside modules, and environmental emission control systems that demand compact internals and dependable demisting.

Installation and Maintenance

Pads are delivered in framed modules or unframed cakes that nest into support grids. Follow orientation arrows so drainage faces the liquid return path. Provide 3-5 mm clearance from shell to allow thermal growth without bypass. Routine care typically involves periodic visual checks and low pressure washing or solvent flushing. When heavy fouling occurs, remove modules individually and clean offline to restore permeability.

Options and Accessories

Top hold down grids and tie downs for vertical acceleration or wave motion
Anti vibration spacers and lifting lugs for safe handling
Drainage gutters and mesh pads with integrated vane layers for severe carryover
Hygienic frames and FDA compatible polymers for specialty services

Manufacturing and QA

Precision knitting and controlled layer stacking establish consistent pore geometry. Every unit undergoes dimensional inspection, weld quality checks, and pressure drop confirmation at reference velocity. Documentation packages can include MTR, inspection reports, and conformity to ISO based quality systems.

Packaging & Delivery

Each demister pad is sealed in moisture-proof packaging with protective outer crates for safe transportation. Standard production lead time is 10-18 working days, with express shipping available for urgent orders. Technical guidance and detailed drawings can be provided to ensure proper fit and installation.
