Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation

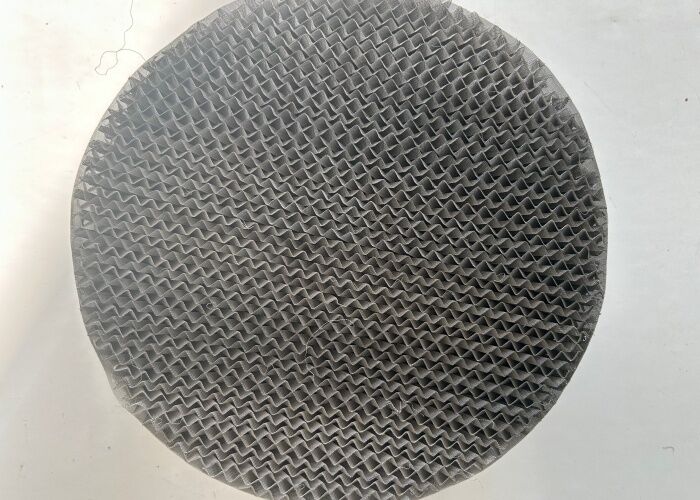

Large Image : Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation

Product Details:

Place of Origin:	Hebei,China
Brand Name:	YuanHai
Certification:	ISO 9001
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	1 cubic meters
Price:	USD200-1800/Cubic Meter
Packaging Details:	wooden case or customized
Delivery Time:	5-10days
Payment Terms:	T/T
Supply Ability:	500 Cubic Meter/Cubic Meters per Month

Contact Now

Detailed Product Description

Product Name:	Metal Structure Packing	Key Word:	Structured Tower Packing Distillation
Size:	Dia:125Y/250Y/350Y/450Y	Material:	304, 316, 316L, Alumina, Copper Bronze
Feature:	High Mass Transfer	MOQ:	1 Cubic Metre
Package:	Jumbo Bag, Carton Box, Or Customized	Keyword 1:	Metal Structured Packing
Keyword 2:	Metal Wire Gauze Cockles Packing	Application:	Absorption,scrubbing,stripping
Certification:	ISO9001:2015	Type:	125Y,160Y,250Y,350Y,450Y,550Y,700Y
Place Of Origin:	Hebei Province,China	Sample:	Provide For Free
Highlight:	metal wire gauze packing for distillation , fine chemical metal structured packing , vacuum distillation wire gauze packing

SS 304 Metal Corrugated Plate Structured Packing For Fractional Distillation

Metal Structured Packing Packing Introduction

Metal structure packing refers to a professional packaging solution designed for metal structural components, including steel beams, columns, trusses, brackets, metal plates, and custom metal parts. It integrates protection, stability, and logistics adaptability to ensure that metal structures remain intact, free from corrosion, deformation, or damage during storage, transportation, and on-site handling. This packaging method is widely used in construction, machinery manufacturing, aerospace, shipbuilding, and other industries where metal components are critical to project quality and safety.

Metal Structured Packing Technical Specification

Model		Wire Gauze Structured Packing
Material		SS 304, 304L, 410, 316, 316L, etc.
Model	Specific surface	Bulk density	Void ratio	Obl.	ΔP	Theo. plate	HETP/mm	F factor m/s (kg/m3)0.5
	(m2/m3)	(kg/m3)	(%)	angle	(Pa/plate)	(piece/m)
250AX	250	125	95	30	100-400	2.5~3	100	2.5-3.5
500BX	500	250	90	30	400	4~5	200	2.0-2.4
700CY	700	350	85	45	600-700	8~10	333-400	1.5-2.0

Typical Application		Absorption, scrubbing and stripping services

Package :		Carton box; wooden box
Warranty:		a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
		b) Offer lifetime consultation on problems occurred

250(AX), Precision rectification for high productive capacity and less theoretical plate number.

500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7Kpa.

700(CX), Separation of isotopic compound and isomeric compound.

Metal Structured Packing Features

Its high mass transfer surface area is suitable for close boiling components distillation due to shorter columns.
Its structured arrangement ensures no channeling of liquid and requires minimum liquid redistribution.
Due to its very low pressure drop, it is recommended for vacuum distillation systems.
It has higher vapour load capacity as compared to random packing and trays.
It provides low liquid hold-up.

Metal Structured Packing Application

Vacuum Distillation: Ideal for heat-sensitive materials (Fine Chemicals, Pharmaceuticals) due to its extremely low pressure drop.
Gas Absorption & Scrubbing: Efficiently removes $CO_2$ , $H_2S$ , and other pollutants from industrial flue gas or natural gas.
Liquid Stripping: Used in wastewater treatment to remove volatile organic compounds (VOCs) or ammonia.
Cryogenic Separation: Essential for air separation units (ASU) to produce high-purity Oxygen, Nitrogen, and Argon.
Heat Transfer: Used in quench towers and cooling columns for rapid gas-liquid cooling.

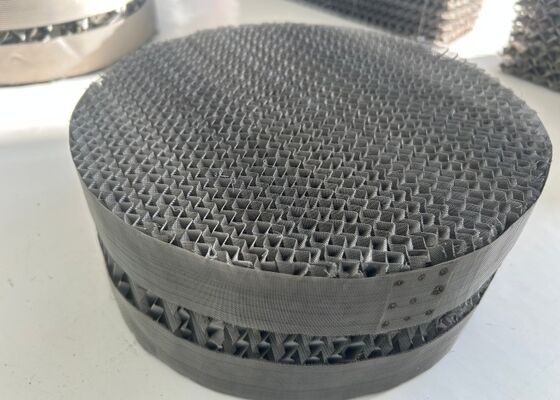

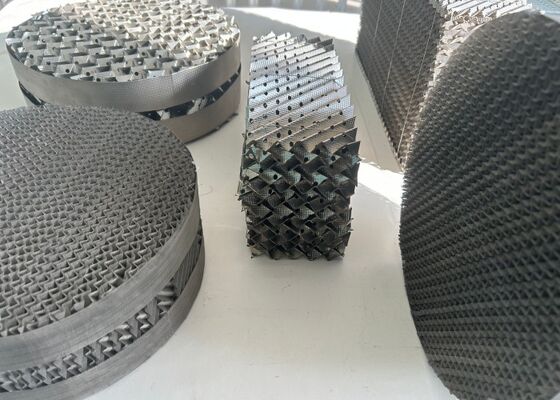

Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation 0

Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation 1

Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation 2

Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation 3

Metal Wire Gauze Packing 125Y for Fine Chemical & Vacuum Distillation 4
