Silver Plated Titanium Expanded Metal Mesh Anode Mesh with 1.3*2.6mm Micro-Diamond Pattern for Extreme Corrosion Resistance

Large Image : Silver Plated Titanium Expanded Metal Mesh Anode Mesh with 1.3*2.6mm Micro-Diamond Pattern for Extreme Corrosion Resistance

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	LJ
Certification:	ISO9001:2015,SGS,CE
Model Number:	LJ-15

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$7.9-9.8 per squaremeter
Packaging Details:	by wooden box or customized
Delivery Time:	5-8 days
Payment Terms:	T/T
Supply Ability:	5000㎡ per week

Contact Now

Detailed Product Description

Product Name:	Expanded Metal Mesh	Key Word:	Anode Mesh For Batteries & Fuel Cells
Material:	Titanium, Nickel, Alloy, Copper, Brass, Monel,etc	Type:	Flattened Expanded Mesh Type, Standard Expanded Mesh Type
Thickness:	0.05mm, 0.1mm 0.3mm 0.5mm, 0.8mm, 1.0mm.	Hole Size:	12mm ,0.51mm, 24mm ,35mm.
Width:	150mm 200mm 300mm 400mm Or Customized	Length:	30 Meters Per Roll Or Customized
Feature:	Extreme Corrosion Resistance	Application:	Hydrogen Production;Energy Storage Systems
Origin:	Hebei Province,Chia	Package:	Wooden Box

Silver Ti Expanded Metal Mesh Anode Mesh For Batteries & Fuel Cells 1.3×2.6mm

Product Overview

This high-precision Titanium Expanded Mesh is a foundational component for next-generation energy storage and conversion. Engineered from high-purity Titanium (typically Grade 1 or Grade 2), it combines extreme chemical stability with a lightweight, high-strength architecture.

The 1.3mm × 2.6mm micro-diamond pattern is specifically optimized for stack efficiency, providing a superior balance of open area for ion transport and a dense structural matrix for active material adhesion.

Technical Specifications

Base Material	Grade 1 or Grade 2 Pure Titanium (ASTM B265)
Surface Treatment	High-purity Silver (Ag) Plating/Coating
Pattern	Diamond-shaped expanded micro-holes
Mesh Size	3mm x 6mm (Long Way of Diamond x Short Way of Diamond)
Function	Anode/Cathode current collector or catalyst substrate

Available Options

Material	Titanium, nickel, Alloy, Copper, Brass, Monel, and other alloy metals
Thickness	0.05mm, 0.1mm, 0.3mm, 0.5mm, 0.8mm, 1.0mm, 2mm to 5mm
Type	Flattened Expanded Mesh Type, Standard Expanded Mesh Type
Hole Size	1×2mm, 0.5×1mm, 2×4mm, 3×5mm, 4×8mm, 5×10mm, and more
Treatment	Coating treatment can be provided as per your request

Key Features

Exceptional Corrosion Resistance

Titanium's ability to form a stable, self-healing oxide layer ensures the mesh remains inert in aggressive electrochemical environments. It is highly resistant to pitting and stress corrosion, making it the ideal substrate for long-cycle-life batteries and fuel cells operating under harsh conditions.

Precision Micro-Diamond Geometry (1.3×2.6mm)

The 1.3mm (SWD) × 2.6mm (LWD) aperture is meticulously calibrated to provide a high Specific Surface Area. This maximizes contact points for catalysts or active battery pastes, ensuring uniform current distribution and reducing the risk of localized overheating.

Lightweight Structural Integrity

As an expanded metal product, this mesh is formed from a single sheet without welds, joints, or weaves. This "one-piece" construction offers superior mechanical rigidity and electrical continuity. At roughly 45% the weight of steel, it is critical for applications where power density and weight reduction are paramount.

Optimized Fluid & Gas Dynamics

The angled strands of the expanded structure promote micro-turbulence, which enhances gas diffusion and prevents bubble accumulation on the electrode surface. This is vital for maintaining high reaction rates in fuel cells and water electrolyzers.

Applications

Hydrogen Fuel Cells (PEM & Alkaline): Functions as a high-performance current collector and structural support for the Gas Diffusion Layer (GDL)
Water Electrolysis: Serves as the base anode/cathode substrate for Green Hydrogen production, often coated with electrocatalysts
Advanced Batteries: Used as a lightweight grid for high-energy-density batteries, including lithium-ion and solid-state systems
Cathodic Protection: Acts as a durable anode mesh for protecting steel structures in marine or underground environments

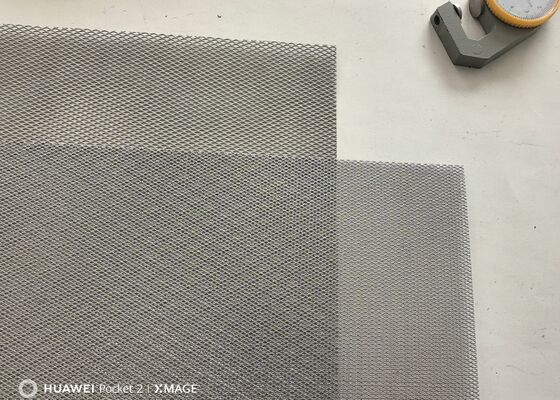

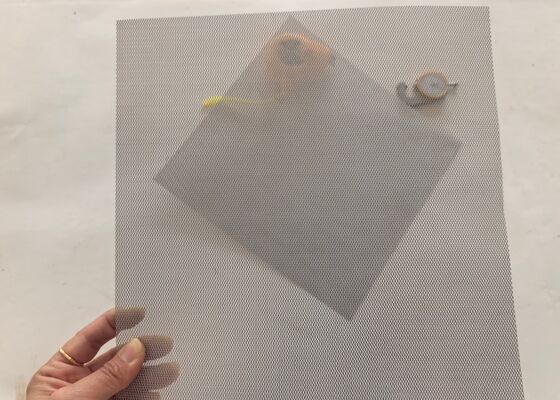

Product Images
