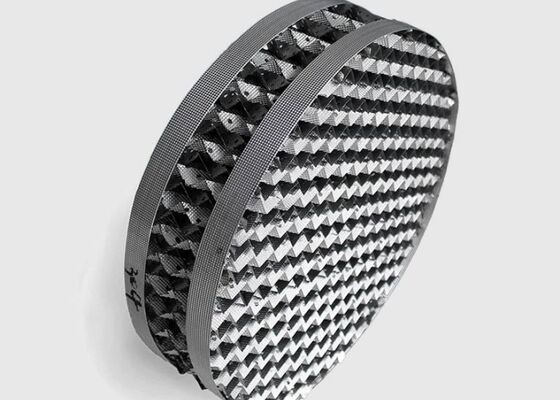

SS304 Metallic Structured Packing for Gas-liquid Separation Tower
Description of Structured Packing

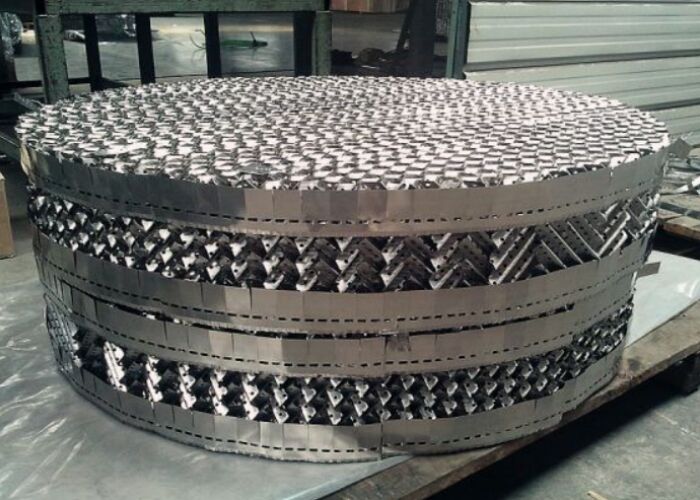

SS304 metallic structured packing is a core tower internal component designed for gas-liquid mass transfer and separation processes. It is manufactured by stamping thin 304 stainless steel sheets into corrugated plates, some with micro perforations to improve liquid spreading. Corrugated panels are arranged at fixed inclined angles and assembled into integral packing modules. Each layer is installed crosswise inside the gas-liquid separation tower, forming regular, directional flow channels for upward gas and downward liquid.
When fluids pass through the packing, liquid evenly adheres to the metal surface to form a thin liquid film, maximizing gas-liquid contact area. This structure effectively avoids channel flow and liquid maldistribution, significantly improving separation precision. Featuring stable mechanical performance and excellent oxidation resistance, SS304 material works reliably under medium temperature and weak corrosive environments, delivering long service life compared with random packing.
Common Specification:
- Material: SS304 stainless steel
- Standard models: 125Y, 250Y, 350Y, 500Y, 700Y
- Sheet thickness: 0.15mm–0.25mm
- Single layer height: 50mm, 100mm, 200mm
- Optional: perforated or non-perforated corrugated plates, customized size
Features of Structured Packing
High Mass Transfer Efficiency
Large specific surface area and good surface wettability enable sufficient gas-liquid contact, which can obtain more theoretical plates and realize precise separation of multi-component mixtures.
Low Pressure Drop
Regular geometric flow paths greatly reduce gas flow resistance, saving operating energy and especially suitable for vacuum distillation systems.
High Void Fraction & Large Throughput
High void volume supports high gas and liquid flux, meeting the demand of high-load continuous production in industrial towers.
Uniform Liquid Distribution
Corrugated and optional microporous structures realize secondary liquid redistribution, avoid liquid bias flow, and ensure stable long-term separation performance.
Wide Material Selection & Strong Adaptability
Multiple material options are available to resist acid, alkali, chloride, organic solvent corrosion, applicable for working temperatures ranging from ultra-low temperature to high temperature above 400℃.
Easy Installation & Maintenance
Pre-assembled modular structure can be divided into segmented blocks according to tower diameter, convenient for tower internal installation, disassembly, cleaning and later maintenance.
Technical Parameters:
| Package |
Carton Box; Wooden Box |
| Application |
Absorption, Scrubbing and Stripping Services |
| Type |
250AX, 500BX, 700CY |
| Product Name |
Metal Structure Packing |
| Surface Area |
250 M2/m3, 500 M2/m3, 750m2/m3, 1000m2/m3, 1200m2/m3 Etc. |
| Place of Origin |
Hebei Province, China |
| Lead Time |
3 Days for One 20 Foot Container |
| Usage |
Mass Transfer Media |
| Key Word |
Metal Structure Packing |
| Feature |
Low Resistance/High Efficiency |
| ISO9001:2015 |
Yes |
| Metal Perforated Plate Corrugated Packing |
Yes |
| Yuanhai 250Y 500Y |
Yes |
Applications of Structured Packing
- Petrochemical: distillation, fractionation, solvent recovery
- Environmental protection: waste gas absorption, desulfurization, decarbonization, tail gas purification
- Fine chemical and pharmaceutical: rectification and purification of chemical intermediates
- Energy industry: natural gas dehydration, air separation, gas-liquid purification
- Food industry: alcohol distillation, edible oil refining
FAQ:
Q1. What is the brand name of the metal structured packing?
A1. The brand name of the metal structured packing is Yuanhai.
Q2. What is the model number of the metal structured packing?
A2. The model number of the metal structured packing is YH-06.
Q3. Where is the metal structured packing manufactured?
A3. The metal structured packing is manufactured in Hebei Province, China.
Q4. What is the certification of the metal structured packing?
A4. The metal structured packing is certified with ISO 9001:2015.
Q5. What is the minimum order quantity of the metal structured packing?
A5. The minimum order quantity of the metal structured packing is 1 PC.
Q6. Is the price negotiable?
A6. Yes, the price of the metal structured packing is negotiable.
Q7. How is the metal structured packing packaged?
A7. The metal structured packing is packaged by pallet or as per demand.
Q8. What is the delivery time of the metal structured packing?
A8. The delivery time of the metal structured packing varies according to the quantity ordered.
Q9. What are the payment terms for the metal structured packing?
A9. The payment terms for the metal structured packing are TT/LC.
Q10. What is the supply ability of the metal structured packing?
A10. The supply ability of the metal structured packing is 10000PCS/10 DAYS.
