4.0mm Hot Dip Galvanized Triangle Fence Panel for Residential Boundaries
This 4.0mm hot dip galvanized triangle fence panel is designed for residential boundaries that must stay stable in coastal humidity, strong sunlight and seasonal temperature swings. The 275g/m2 zinc layer is applied before the PVC top coat, so the wire core is protected even where the outer colour layer is scratched during transport or installation. Each 1.8m x 2.5m panel carries four 3D folds, which lift the panel stiffness without adding unnecessary weight. The 50 x 200mm aperture keeps the boundary open to light and air while still defining the property line clearly. Peach posts and matching clamps complete a tidy system that homeowners and landscape contractors can install without site welding.
Key Features
- 4.0mm low carbon steel wire with 275g/m2 hot dip galvanized coating for long outdoor service
- 50 x 200mm mesh aperture balances visibility, wind load and boundary definition
- Four 3D folds increase panel rigidity and reduce deformation during handling
- RAL 6005 dark green PVC top coat resists UV fading and matches garden landscaping
- Peach posts with steel clamps create a straight, clean boundary line
- Panels, posts and accessories packed together for simple site distribution
Technical Specifications
| Model Number | YH-TF101 |
| Material | Low carbon steel wire |
| Wire Diameter | 4.0mm |
| Mesh Aperture | 50 x 200mm |
| Panel Size | 1.8m x 2.5m |
| Fold / Curve | 4 folds, 3D curved |
| Post Type | Peach post 50 x 70mm |
| Surface Treatment | Hot dip galvanized 275g/m2, PVC top coat |
| Color | RAL 6005 dark green |
| Certification | ISO 9001:2015 |
| MOQ | 80 sets |
| Packing | Steel pallet with plastic film |
Panel Structure and Detail
The panel starts with straight, accurately spaced wires that are resistance welded at every intersection. After welding, the sheet is folded into four triangular profiles. These folds act as stiffening ribs: they resist bending along the panel length and help the sheet return to shape after minor impact. The folded edges also hide the cut wire ends, giving the boundary a finished appearance from both sides. Each panel is checked for diagonal squareness before coating, so posts stay vertical and clamps line up during installation.
Post System and Installation
Installation uses peach posts set in concrete at 2.5m centres, with panels fixed by steel clamps and security bolts. No welding and no specialist tools are needed on site. The clamp design allows slight adjustment for slope and alignment, which is useful on garden edges that are not perfectly level. A two-person team can typically set posts and hang panels for a 30m boundary in one working day. We supply a simple layout drawing with every order so the installer can mark post positions before digging.
Application Scenarios
Residential communities, villa gardens, home boundaries and small commercial frontages use this panel because it defines the property without creating a heavy visual wall. The 1.8m height suits private gardens and side passages, while the open mesh keeps planted borders visible from inside the property. Landscape contractors often specify the dark green finish to blend with hedges and lawns. For projects near the coast, the hot dip galvanized core is the key specification point, because salt air attacks cut edges first. The same panel can be supplied in other heights and colours when a project needs a consistent look across several plots.
Packing and Delivery
Panels are stacked face to face with plastic film between sheets, then strapped onto steel pallets. Posts and clamps are packed in separate bundles and labelled by size. A 1.8m x 2.5m panel load is planned so that containers and flatbed trucks are filled efficiently, and pallet marks can follow the buyer's site allocation. Delivery is normally 7 to 15 days after deposit, depending on colour and quantity.
Ordering Information
To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.
Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.
Product Detail Images

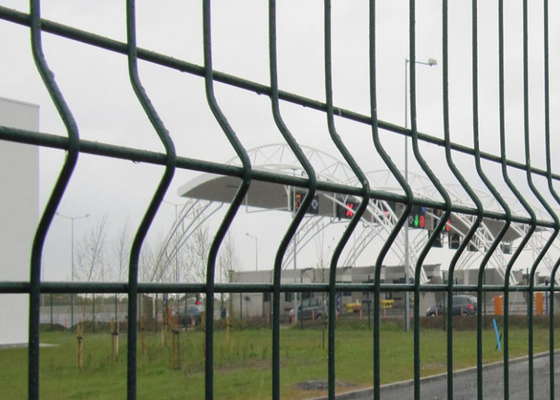

Triangle bending structure, fold layout and coating build-up

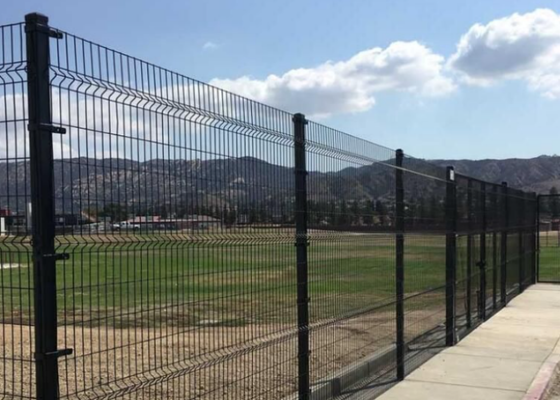

Panel edge, post connection and installed fence line
