PVC Coated Triangle Fence Panel for School and Playground Boundaries

School and playground boundaries need a fence that is visible, smooth to the touch and strong enough for daily contact. This PVC coated triangle fence panel uses 4.5mm wire and a 50 x 200mm aperture, a combination that closes the boundary to stray balls and running children while keeping sight lines open for supervision. The PVC layer is bonded over a hot dip galvanized core, so the panel keeps its shape and colour through rain, sun and repeated cleaning. Square posts give the line a more architectural look than round posts, which suits modern school buildings and municipal parks.

Key Features

• 50 x 200mm mesh stops small objects while preserving clear sight lines
• 4.5mm wire gives the panel extra resistance to daily knocks and ball impact
• 0.6mm PVC coating over hot dip galvanized core for colour stability
• Square 60 x 60mm posts suit straight architectural boundary lines
• Smooth coated surface with no exposed sharp wire ends
• Panels available in 1.8m and 2.0m heights for different site rules

Technical Specifications

Panel Structure and Detail

The welded sheet is folded four times to create shallow triangular ribs across the panel. These ribs add stiffness and also make the panel surface less inviting to climb. The PVC coating is applied after galvanizing, covering the wire, the weld points and the folded edges in one continuous skin. Square posts are punched to match the clamp spacing, so panels sit at a consistent height along the full run. Every batch is checked for coating thickness and mesh pitch before packing.

Post System and Installation

Square posts are set in concrete at 3.0m centres, and panels are fixed with coated clamps and bolts. Because the posts are square, the installer can align the fence line with building walls and kerbs more easily. The clamps allow a small amount of vertical adjustment, which helps on school grounds that slope or have drainage falls. We provide a post layout plan and a fixing schedule with each order. For playgrounds, we recommend leaving a 50mm gap under the panel so rainwater can pass and maintenance equipment can clean the edge.

Application Scenarios

This panel is used around school yards, kindergarten play areas, sports courts and public parks. The 1.8m height marks the boundary without blocking daylight into classrooms or playgrounds. The dark green finish is chosen for its low visual impact against trees and grass, while the smooth PVC surface reduces the risk of cuts and snags during play. Municipal buyers often combine this panel with matching gates and corner posts to create a complete perimeter. For sites with younger children, the same system can be supplied with a smaller 50 x 100mm aperture to close the gap further.

Packing and Delivery

Panels are interleaved with foam or plastic film to protect the PVC surface, then strapped to steel pallets. Square posts are packed in bundles with end caps fitted. Each pallet is marked with panel size, colour and quantity. Standard production takes 10 to 15 days after artwork and colour approval, and mixed colour orders are packed in separate bundles for site clarity.

Ordering Information

To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.

Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.

Product Detail Images

Triangle bending structure, fold layout and coating build-up

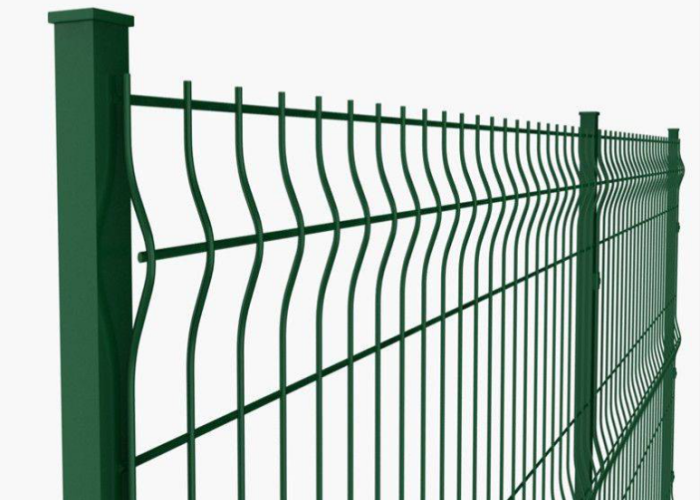

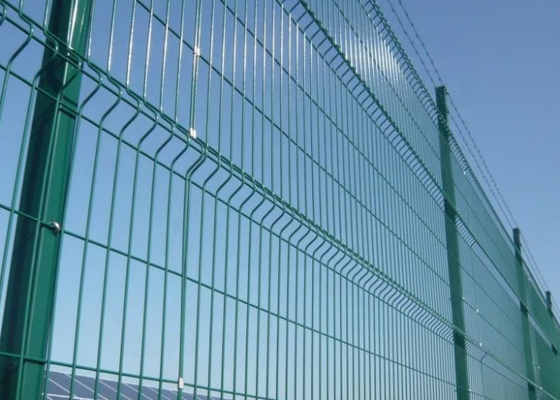

Panel edge, post connection and installed fence line
