2.0m High Triangle Fence Panel with Peach Posts for Industrial Parks

Industrial and logistics sites usually need a taller, wider panel that reduces the number of posts and speeds up perimeter installation. This 2.0m x 3.0m panel is built around that requirement: a 3.0m span means fewer posts per metre, while the 2.0m height gives a stronger visual boundary around warehouses, yards and staff parking. The 4.0mm wire and 55 x 200mm mesh keep the panel light enough to handle but stiff enough to resist trolley knocks and wind pressure. RAL 7016 anthracite grey gives the site a neutral, industrial appearance that does not show dust as quickly as lighter colours.

Key Features

• 2.0m height and 3.0m width reduce posts and installation time per metre
• 55 x 200mm aperture for ventilation and visibility around warehouses
• 4.0mm wire with four 3D folds for stiffness across the wider span
• Heavy 70 x 100mm peach posts support the longer panel run
• RAL 7016 powder coating over hot dip galvanized steel
• Suitable for straight runs and gentle changes of direction

Technical Specifications

Panel Structure and Detail

The wider 3.0m panel uses four deeper folds to control deflection. The fold depth is set so the panel keeps its shape when lifted by forklift or when wind loads press against a long perimeter run. Peach posts are produced from 70 x 100mm section steel, with a shaped profile that accepts the panel clamps without drilling on site. The post cap is welded and sealed to keep rainwater out of the hollow section, which is important in industrial areas where the fence line is often exposed.

Post System and Installation

Posts are set at 3.0m centres in concrete footings sized for local wind load. The peach profile has a flat face that helps the installer keep posts parallel along a long run. Panels are lifted into the clamps and fixed with anti-theft bolts. Because the panel is wider, we recommend a small crew and a lifting frame for long runs. A layout drawing shows post positions, gate openings and corner details, and we can pre-drill clamp holes to match the site setting-out.

Application Scenarios

This panel is specified for industrial parks, logistics centres, warehouse perimeters, utility compounds and staff car parks. The 2.0m height creates a clear boundary between public roads and operational areas, while the open mesh lets security teams see through the line during patrols. The grey finish suits concrete, steel cladding and asphalt surfaces. Where sites need a stronger anti-intrusion line, the same panel can be combined with cranked post tops, additional barbed wire arms or matching double gates.

Packing and Delivery

3.0m panels are stacked on steel pallets with protective film and corner guards. Posts are bundled by type and labelled for each fence run. Because the panels are longer, loading plans are prepared per container or truck to avoid overhang. Normal lead time is 10 to 18 days after deposit, with mixed panel heights packed in separate bundles.

Ordering Information

To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.

Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.

Product Detail Images

Triangle bending structure, fold layout and coating build-up

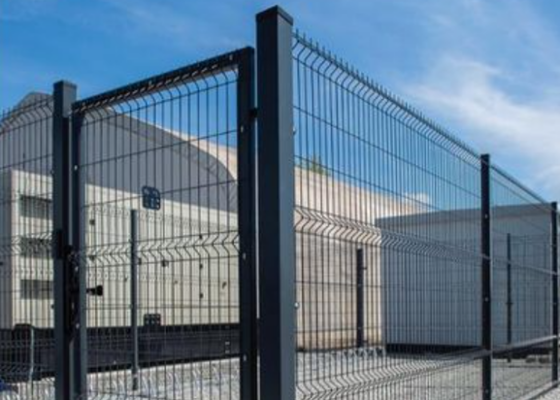

Panel edge, post connection and installed fence line
