Anti-Climb Triangle Fence Panel with V-Fold Structure for Secure Perimeters

High-security sites need more than a tall fence: the panel itself must slow down climbing and cutting attempts. This anti-climb triangle fence panel uses a tight 50 x 100mm aperture, 5.0mm wire and a V-fold profile that removes the easy hand and foot holds found on flat mesh. The 2.0m height sets a clear perimeter line, while the black powder coating reduces glare and makes the fence less conspicuous against dark backgrounds. The panel is designed for sites where security teams patrol the line and need clear visibility without giving intruders an easy route over the top.

Key Features

• 50 x 100mm tight mesh limits finger and toe holds for climbing
• 5.0mm wire increases resistance to cutting and impact
• V-fold structure stiffens the panel and interrupts flat climbing surfaces
• 2.0m height with square 80 x 80mm posts for a rigid perimeter
• RAL 9005 black finish reduces glare and visual intrusion
• Compatible with cranked post tops and security accessories

Technical Specifications

Panel Structure and Detail

The V-fold is formed after welding, with each fold running vertically across the panel. The fold depth and wire spacing are matched so the panel cannot be pressed flat by hand or levered open at the edge. The 5.0mm wire is welded at every intersection, and the frame edges are folded back to remove sharp ends. Posts use an 80 x 80mm square section with a welded cap, giving the panel a solid anchor at each end and reducing flex along the run.

Post System and Installation

Posts are set in concrete at 2.5m centres, with the panel fixed by security clamps and tamper-resistant bolts. The square post face makes alignment simple along long perimeter roads and taxiways. We recommend setting the bottom of the panel close to the ground or adding a concrete plinth where digging under the fence is a concern. Installation drawings include post spacing, gate positions and recommended footing sizes. For airport and port projects, we can supply panels with matching cranked tops and additional security arms.

Application Scenarios

This panel is used around airports, ports, container terminals, power stations, water treatment works and other sites with controlled access. The tight mesh and V-fold profile make the boundary harder to climb, while the open design still allows CCTV coverage and patrol visibility. The black finish is often chosen for sites where the fence should recede into the background at night. Where projects require a higher security rating, the same panel can be combined with electric fencing brackets, barbed wire arms or a second inner fence line.

Packing and Delivery

Panels are stacked with protective film and steel corner protection, then strapped to heavy-duty pallets. Posts and security clamps are packed separately and labelled by run. Because black coated panels show handling marks, we use extra interleaving during packing. Lead time is normally 12 to 20 days after deposit, depending on accessory requirements.

Ordering Information

To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.

Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.

Product Detail Images

Triangle bending structure, fold layout and coating build-up

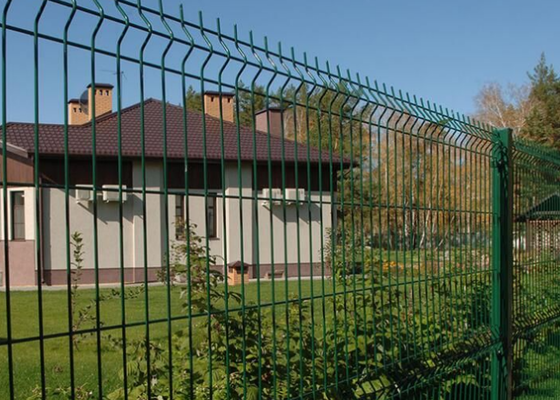

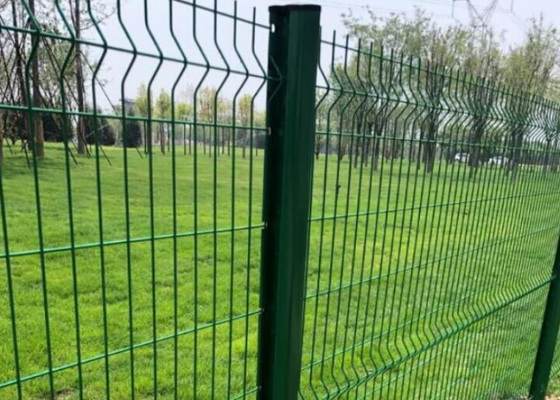

Panel edge, post connection and installed fence line
