Modular Assembly Triangle Fence Panel for Fast Highway and Road Installation

Road and highway projects are won and lost on installation speed. This modular triangle fence panel is built as a complete kit: galvanized panel, round post, clamps and bolts arrive together, and the crew only needs to set posts and hang panels. The 3.5mm wire and 75 x 150mm mesh keep the panel light enough for two workers to carry, while the four 3D folds provide the stiffness needed for long roadside runs. The hot dip galvanized finish is left unpainted, so minor scuffs do not expose a different colour and maintenance crews can touch up the line easily.

Key Features

• Complete modular kit with panel, post, clamp and bolt in one delivery
• 3.5mm wire and 75 x 150mm mesh keep panel weight manageable
• Hot dip galvanized 240g/m2 finish for roadside weather exposure
• Round 48mm posts suit standard highway footing and cap details
• Four 3D folds provide stiffness across the 2.5m span
• Panels stack flat for efficient truck and container loading

Technical Specifications

Panel Structure and Detail

The panel uses a 75 x 150mm mesh, a compromise between visibility and material weight for roadside use. Four shallow 3D folds run along the panel to control bending under wind load. Round posts are fitted with a weather cap and drilled to accept the clamp at a fixed height, which removes guesswork on site. The galvanized coating is applied after all welding and cutting, so the zinc covers the weld points and cut ends that normally start to rust first.

Post System and Installation

The system is installed by setting round posts in concrete at 2.5m centres, sliding the panel into the clamps and tightening the bolts. No welding, cutting or painting is required. Because the clamps are factory-set, panels line up quickly even when several crews work on different sections. We supply a simple setting-out plan with chainage marks, post spacing and gate positions. For highway work, panels can be delivered in run sequence so the site team does not need to sort mixed pallets.

Application Scenarios

This panel is used along highway verges, road isolation strips, municipal boundary works, park and ride sites and temporary traffic schemes. The open mesh keeps sight lines clear for drivers and pedestrians, while the galvanized finish suits exposed roadside conditions. The modular design is useful for phased road projects, because additional panels can be added without changing the post system. Where a project requires a specific colour, the same panel can be supplied with a powder or PVC top coat over the galvanized core.

Packing and Delivery

Panels are stacked flat and strapped to steel pallets, with posts bundled by length. Each pallet is labelled with the chainage or site section so deliveries can be dropped in sequence. Standard lead time is 7 to 12 days for galvanized panels, and 12 to 18 days for coated colours. We can also supply a sample panel and post set for client approval before the main production run.

Ordering Information

To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.

Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.

Product Detail Images

Triangle bending structure, fold layout and coating build-up

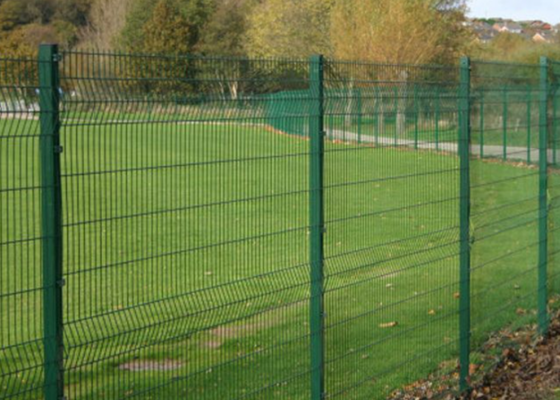

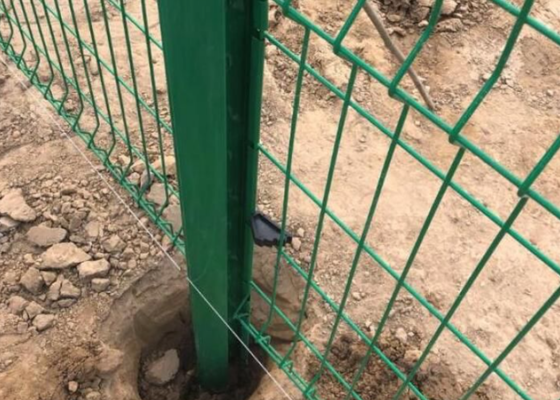

Panel edge, post connection and installed fence line
