Peach Post Triangle Fence Panel with Easy Installation for Garden Boundaries
Homeowners and small landscape contractors often prefer a lower boundary that defines the garden without blocking the view. This 1.53m high triangle fence panel fits that role. The peach post gives the fence a softer profile than a square industrial post, and the 50 x 200mm mesh keeps the garden visible from the street. Panels arrive with clamps and bolts already matched to the posts, so a two-person team can install a garden run over a weekend without welding equipment or specialist tools.
Key Features
- 1.53m height defines the garden without creating a visual wall
- Peach posts give a softer residential appearance
- 50 x 200mm mesh keeps planting and lawn visible
- 4.0mm wire with four 3D folds for garden-scale rigidity
- Pre-matched clamps and bolts simplify weekend installation
- Green PVC finish blends with hedges and lawn
Technical Specifications
| Model Number | YH-TF107 |
| Material | Low carbon steel wire |
| Wire Diameter | 4.0mm |
| Mesh Aperture | 50 x 200mm |
| Panel Size | 1.53m x 2.5m |
| Fold / Curve | 4 folds, 3D curved |
| Post Type | Peach post 50 x 70mm |
| Surface Treatment | Hot dip galvanized + PVC coated |
| Color | RAL 6005 green |
| Certification | ISO 9001:2015 |
| MOQ | 80 sets |
| Packing | Steel pallet with plastic film |
Panel Structure and Detail
The panel uses a 50 x 200mm mesh and four shallow 3D folds. At 1.53m high, the panel is light enough for two people to lift and position by hand, which is important for garden sites with restricted access. Peach posts are shaped to accept the panel clamp without grinding or drilling. The post cap is fitted at the factory to keep water out of the hollow section. The folded panel edge gives a clean finish and removes exposed wire ends at the top and bottom.
Post System and Installation
Posts are set in concrete at 2.5m centres, or fixed to existing hard surfaces with base plates where digging is not possible. The panel is lifted into the peach post channel and secured with clamps. A spirit level and string line are enough to keep the run straight. We supply a simple layout guide and a list of tools needed. For garden slopes, the clamps can be adjusted slightly so panels step down the slope without leaving large gaps at the bottom.
Application Scenarios
Villa gardens, townhouse boundaries, residential community edges and small commercial landscapes use this panel. The lower height suits front gardens where homeowners want a boundary but still need to see the street. The green finish and peach post profile are chosen to sit comfortably beside planting, timber gates and garden lighting. Because the system is modular, a damaged panel can be replaced without disturbing the posts, and additional panels can be added if the garden layout changes.
Packing and Delivery
Panels are stacked with plastic film between sheets and strapped to compact pallets suitable for residential deliveries. Posts, clamps and bolts are packed in one bundle per fence run. Standard lead time is 7 to 15 days after deposit, and small garden orders can be shipped with a gate kit if required.
Ordering Information
To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.
Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.
Product Detail Images
Triangle bending structure, fold layout and coating build-up

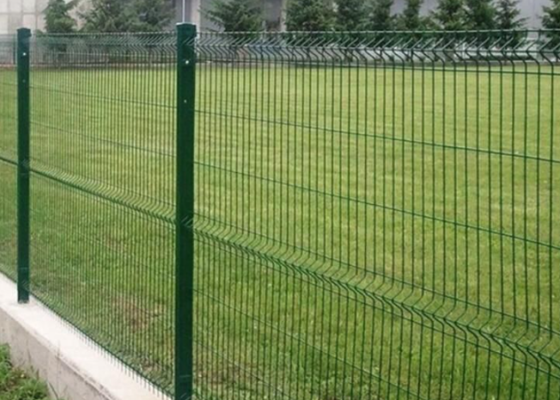

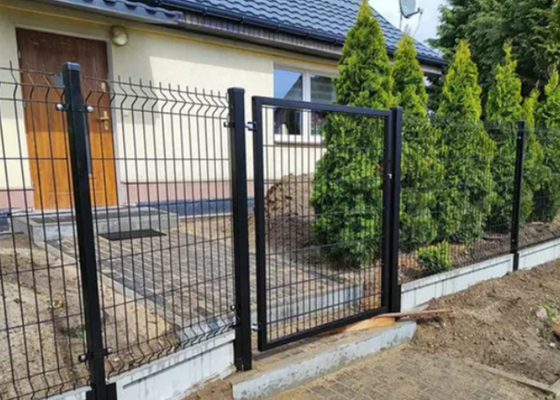

Panel edge, post connection and installed fence line
