5.5mm Wire Anti-Climb Triangle Fence Panel for Commercial Security Lines
This anti-climb panel is the heavier option in the range: 5.5mm wire, a 50 x 100mm aperture and a 3.0m panel width. It is intended for commercial compounds and utility sites where the fence must resist repeated attempts to force or cut the mesh. The peach post is sized at 70 x 100mm to carry the wider panel without excessive deflection. Black powder coating over a galvanized core keeps the line visually quiet and protects the steel in polluted or coastal air.
Key Features
- 5.5mm wire for higher cut and impact resistance
- 50 x 100mm mesh reduces climbing holds and hand gaps
- 3.0m panel width lowers post count on long security lines
- Heavy 70 x 100mm peach posts control deflection
- Black powder coating over galvanized steel
- Can be combined with security arms and detection equipment
Technical Specifications
| Model Number | YH-TF108 |
| Material | Low carbon steel wire |
| Wire Diameter | 5.5mm |
| Mesh Aperture | 50 x 100mm |
| Panel Size | 2.0m x 3.0m |
| Fold / Curve | 4 folds, V-shaped |
| Post Type | Peach post 70 x 100mm |
| Surface Treatment | Hot dip galvanized + powder coated |
| Color | RAL 9005 black |
| Certification | ISO 9001:2015 |
| MOQ | 80 sets |
| Packing | Steel pallet with plastic film |
Panel Structure and Detail
The panel is welded from 5.5mm wire on a fixed jig and then folded into four V-shaped profiles. The heavier wire requires a slower weld cycle, which we control to avoid weak points at the intersections. The folded edges are turned back and crimped, so there is no exposed wire end to catch clothing or create a climbing step. Peach posts are reinforced at the clamp zone to carry the panel load without local deformation.
Post System and Installation
Posts are set in concrete at 3.0m centres, with footings sized for the local wind load and soil condition. Panels are lifted into the peach post and fixed with heavy clamps and tamper-resistant bolts. Because the panel is large and heavy, we recommend a two-person lift or a small lifting frame. Setting-out drawings show post positions, gate openings and any changes in direction. For high-security sites, we can supply matching cranked tops and anti-dig plinths.
Application Scenarios
Commercial compounds, utility substations, warehouse yards, data centres and transport depots use this panel where a standard fence is not enough. The tight mesh and heavy wire make the boundary harder to climb or cut, while the 2.0m height sets a clear line between public and restricted areas. The black finish reduces glare under floodlights and helps the fence blend into industrial surroundings. Where a project needs additional detection, the post system can carry fence-mounted sensors and camera brackets.
Packing and Delivery
Panels are stacked with heavy protective film and steel corner guards, then strapped to reinforced pallets. Posts and clamps are packed separately by fence run. Because of the panel weight, loading plans are prepared to keep each pallet within safe handling limits. Lead time is normally 15 to 22 days after deposit, depending on accessory and coating requirements.
Ordering Information
To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.
Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.
Product Detail Images
Triangle bending structure, fold layout and coating build-up

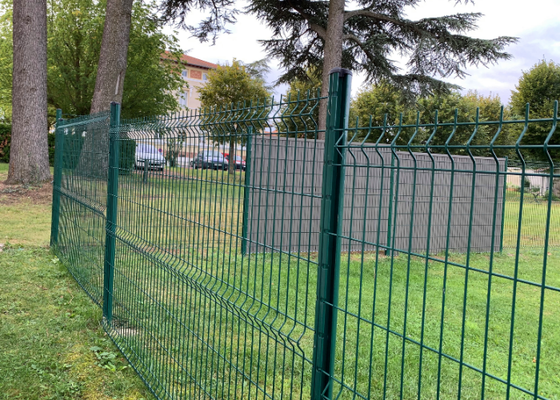

Panel edge, post connection and installed fence line
