Custom Size Triangle Fence Panel for School and Sports Field Boundaries
Municipal and school projects rarely fit a single standard panel size. This custom size triangle fence panel is produced to the project's own height and width, with the mesh and wire diameter fixed at the tender stage. The 75 x 150mm aperture is a practical choice for sports fields: it stops larger balls while keeping the view clear for spectators and supervisors. White powder coating gives a clean, public-facing appearance that suits school buildings, sports pavilions and park facilities.
Key Features
- Panel height and width produced to the project specification
- 75 x 150mm mesh suits sports fields and school boundaries
- 4.0mm wire with four 3D folds for a stable panel
- White RAL 9010 powder coating for public-facing sites
- Square posts give a straight, architectural boundary line
- Batch production keeps mesh pitch and colour consistent
Technical Specifications
| Model Number | YH-TF109 |
| Material | Low carbon steel wire |
| Wire Diameter | 4.0mm |
| Mesh Aperture | 75 x 150mm |
| Panel Size | 1.8m x 2.5m |
| Fold / Curve | 4 folds, 3D curved |
| Post Type | Square post 60 x 60mm |
| Surface Treatment | Hot dip galvanized + powder coated |
| Color | RAL 9010 pure white |
| Certification | ISO 9001:2015 |
| MOQ | 80 sets |
| Packing | Steel pallet with plastic film |
Panel Structure and Detail
The panel is built to a project drawing, with the mesh pitch, wire diameter and fold positions fixed before production. The 3D folds are set out so the panel keeps its shape across the full width, even when the panel is produced in a non-standard size. Square posts are punched to match the panel clamps, and the post cap is welded and sealed. Each batch is checked against the approval drawing before coating and packing.
Post System and Installation
Posts are set in concrete at the panel width, and panels are fixed with clamps and bolts. The square post face makes it easy to keep the fence line parallel to sports field markings and building walls. Because panels are made to size, site cutting is avoided and the finished line stays neat. We supply approval drawings before production and a setting-out plan for installation. For projects with multiple panel sizes, each size is labelled and packed separately.
Application Scenarios
Schools, sports fields, public parks, municipal facilities and community centres use this panel where the boundary must follow a project drawing rather than a catalogue size. The 75 x 150mm mesh keeps the field visible from outside while stopping larger balls from leaving the playing area. White coating is often specified for public buildings because it reflects light and gives a clean appearance. The same system can be supplied with matching gates, corner posts and accessibility openings.
Packing and Delivery
Panels are packed by size and labelled with the project drawing number. Protective film is used on the white coating to prevent scuffs during transport. Posts and clamps are bundled separately. Lead time is normally 12 to 20 days after drawing approval, depending on the number of non-standard sizes in the order.
Ordering Information
To prepare an accurate quotation, please confirm the panel height and width, wire diameter, mesh aperture, post type, colour and order quantity. We can supply a sample panel and post set for approval before the main production run. Our team will reply with a specification sheet, packing plan and delivery schedule within one working day.
Contact us today to discuss your triangle fence panel requirements and receive a project-specific quotation.
Product Detail Images

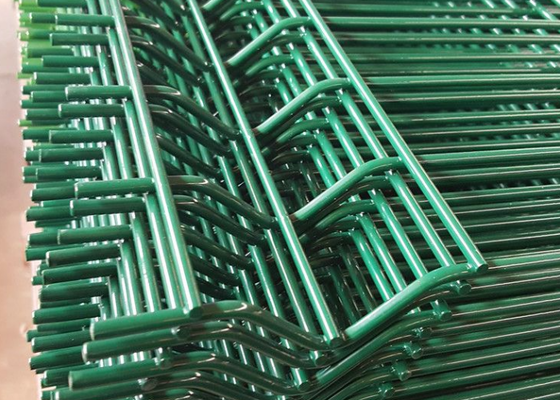

Triangle bending structure, fold layout and coating build-up

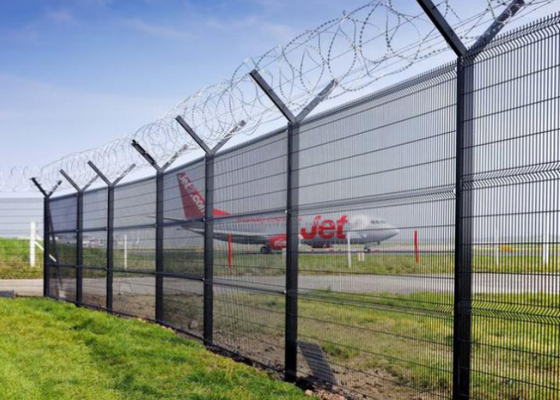

Panel edge, post connection and installed fence line
